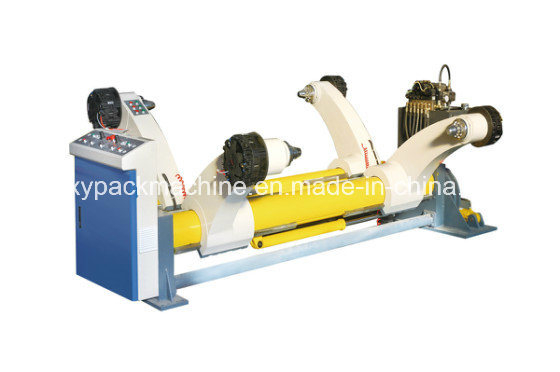

for India Market Hydraulic Mill Roll Stand Carton Production Line

Quantity:
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
  • New

  • CE

  • Automatic

  • Paper

  • Thick Paper

  • 1600mm

  • CZXY-1600

  • 800mm

  • Pneumatic Brake

  • by Hydraulic

  • Max:1500mm

  • 4000kg

  • 380V 50Hz

  • Hydraulic Cylinder Lift

  • Included

  • Available

  • Plastic Film Wrapping Outside, Container

  • hydraulic type

  • CZXY

  • Cangzhou City, Hebei Province

  • 8441809000

  • 15 Sets/Month

  • Available | Customized Request

For India market Hydraulic Mill Roll stand Carton Production line

for India Market Hydraulic Mill Roll Stand Carton Production Line

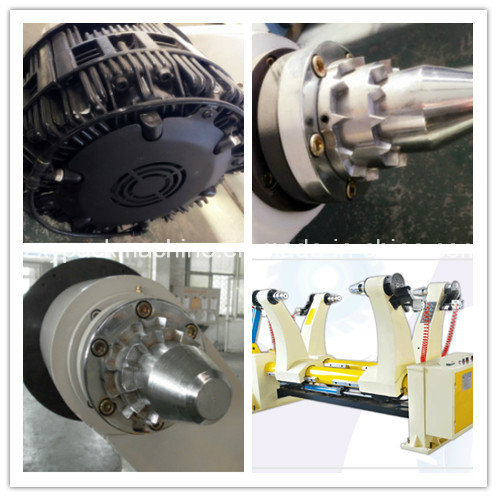

Structure and Features:
1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2,Reel paper lift-lower, clamp, loosen, movement, contra position operated by hydraulic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake


Spec of stand:
1, Reel Stand driven by hydraulic
2, Kraft paper range:
Width: Max: 1600mm Min:800mm
Diameter: Max: Φ1500mm
Max Weight:4000Kg(One side)
3, Pneumatic Source Pressure(Mpa): 0.4---0.8Mpa
4, Power: 380V 50Hz


Spec of Hydraulic:
1,Working Pressure(mpa):16-18mpa,
lift hydraulic cylinder:Φ100×440mm,
Clamping hydraulic cylinder: Φ63×1300mm
Power Motor for Hydraulic Station:3KW --380V -- 50Hz


Spec of electric motor:
1, Reel Paper Nipping Motor Power: 500W*4pcs Short Time(S2) Working Type Nominal voltage:380V 50Hz
2, Lifting Motor Woking Power: 1.5KW 380 V 50 Hz



Box Producing Process:
for India Market Hydraulic Mill Roll Stand Carton Production Line

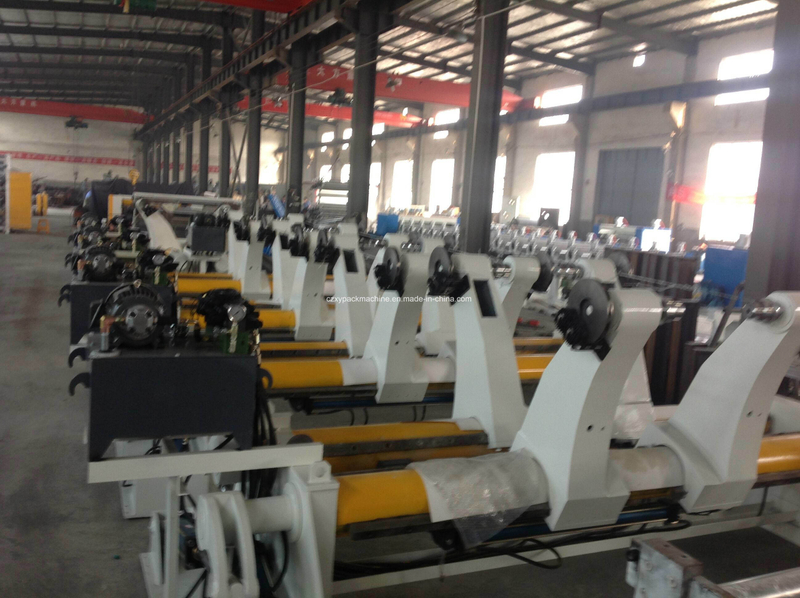

Factory Manufacture Process:
for India Market Hydraulic Mill Roll Stand Carton Production Line
for India Market Hydraulic Mill Roll Stand Carton Production Line
Customer Visit:
for India Market Hydraulic Mill Roll Stand Carton Production Line

Delivery Pictures:
for India Market Hydraulic Mill Roll Stand Carton Production Line

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
