Corrugated box making line Hydraulic Mill Roll stand
Structure and Features: 1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2,Reel paper lift-lower, clamp, loosen, movement, contra position operated by hydraulic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake Spec of stand: 1, Reel Stand driven by hydraulic
2, Kraft paper range:
Width: Max: 1600mm Min:800mm
Diameter: Max: Φ1500mm
Max Weight:4000Kg(One side)
3, Pneumatic Source Pressure(Mpa): 0.4---0.8Mpa
4, Power: 380V 50Hz Spec of Hydraulic: 1,Working Pressure(mpa):16-18mpa,
lift hydraulic cylinder:Φ100×440mm,
Clamping hydraulic cylinder: Φ63×1300mm
Power Motor for Hydraulic Station:3KW --380V -- 50Hz Spec of electric motor: 1, Reel Paper Nipping Motor Power: 500W*4pcs Short Time(S2) Working Type Nominal voltage:380V 50Hz

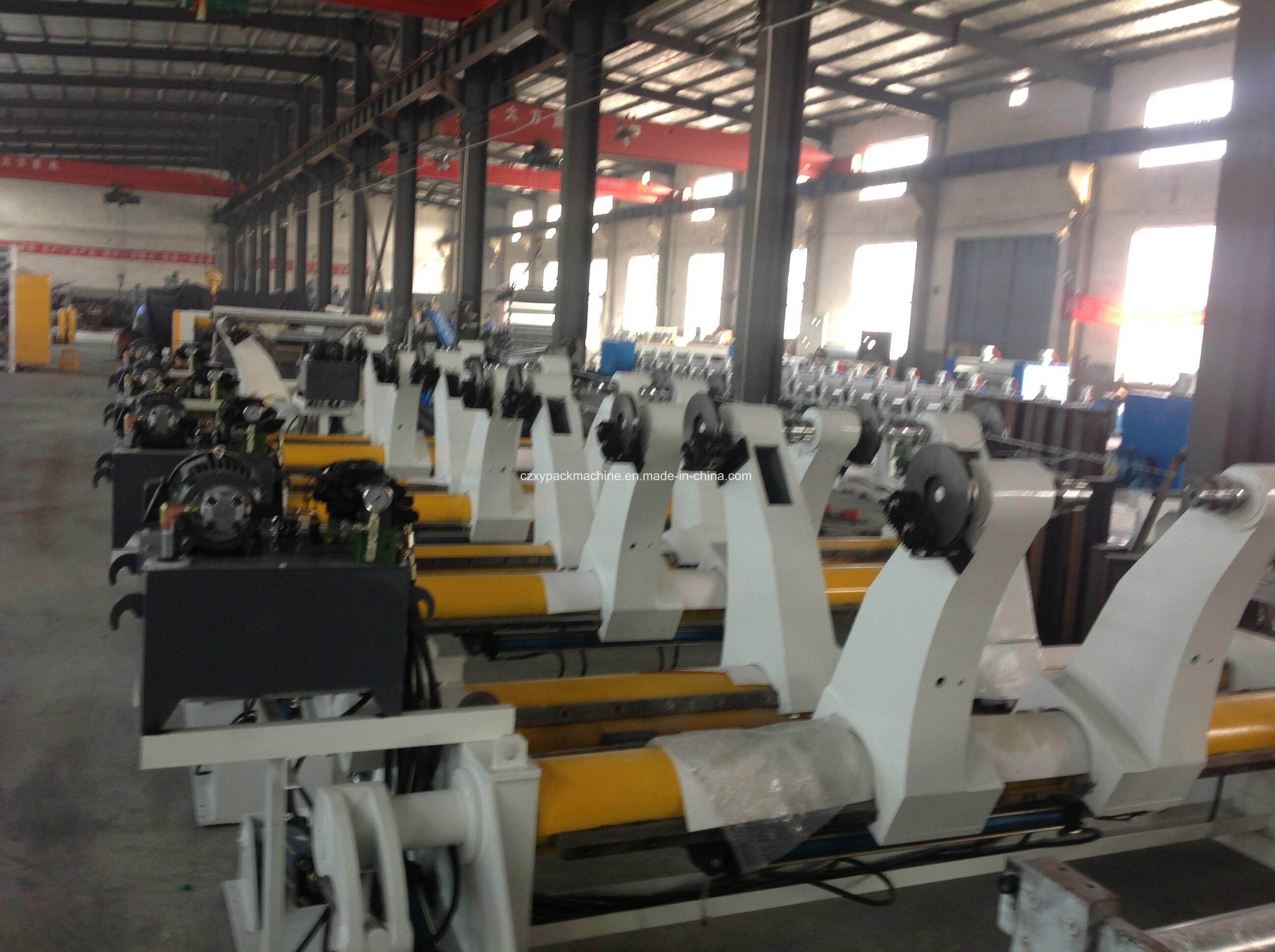

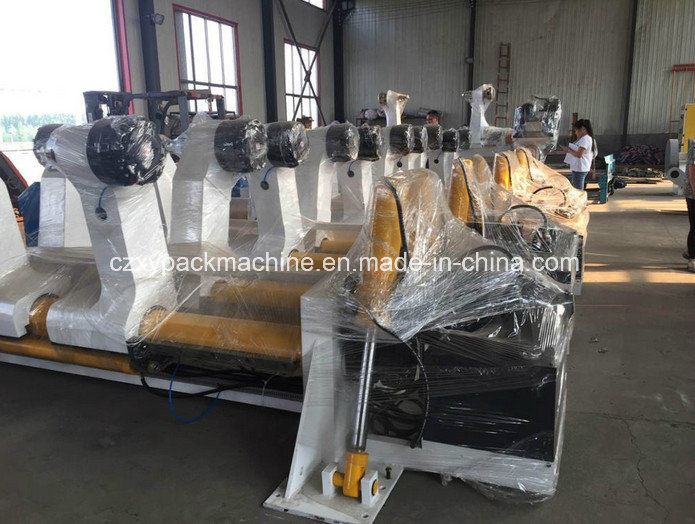

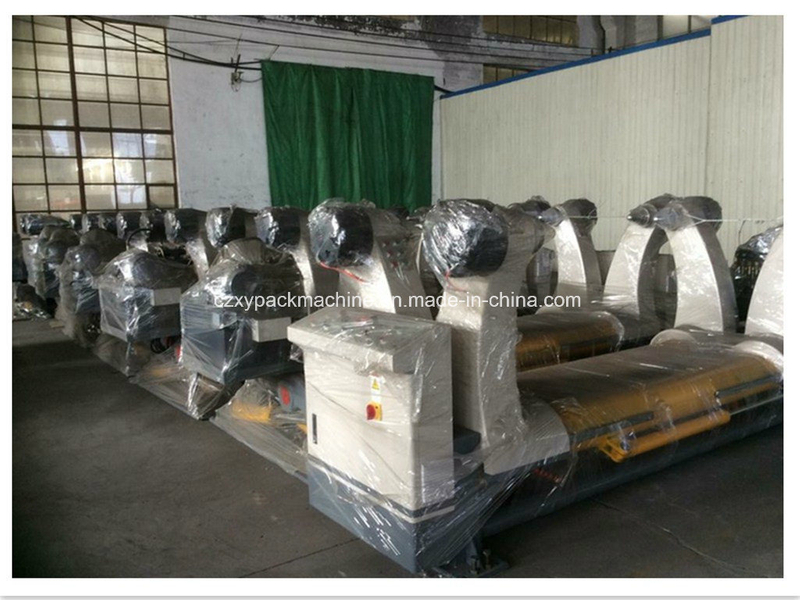

2, Lifting Motor Woking Power: 1.5KW 380 V 50 Hz Box Producing Process: Factory Manufacture Process: Customer Visit: Delivery Pictures: Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever! Sara Qiu Website: http://czxypackmachine.en.made-in-china.com : +86 18202603137 Fax/tel: 0317-7805687
