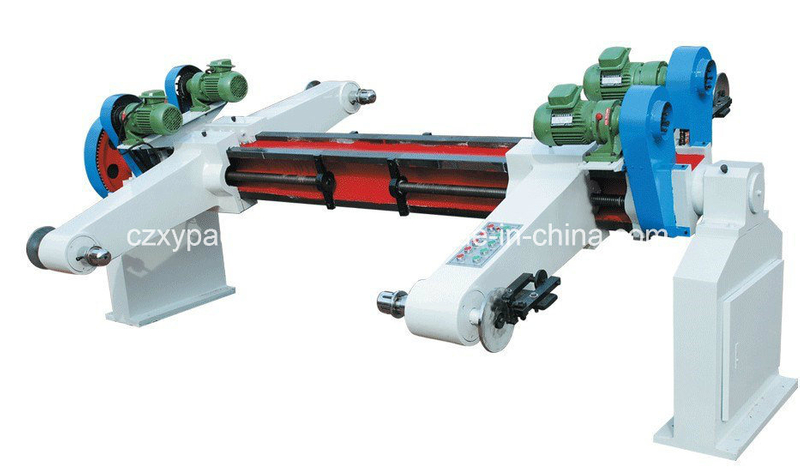

Electric shaftless mill roll stand for corrugated cardboard machine
Structure and Features : 1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake. 2, Reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly. 3,Brake: pneumatic brake , simple & useful. Spec of stand : 1, Reel Stand driven by electric 2, Kraft paper range: Width: Max: 1 4 00mm Min: 7 00mm Diameter: Max: Φ1 4 00mm Max Weight:2000Kg(One side) Spec of electric motor: 4, Reel Paper Nipping Motor Power: 500W* 4pcs Short Time(S2) Working Type Nominal voltage: 380 V 5 0Hz 5, Lifting Motor Woking Power: 1.5KW 380 V 50 Hz Box Producing Process: Factory Manufacture Process: Customer Visit: Delivery Pictures: Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever! Sara Qiu Website: http://czxypackmachine.en.made-in-china.com Fax/tel: 0317-7805687
