Hydraulic Mill Roll Stand for 5 Ply Carton Production Line

Quantity:
  • New

  • CE

  • Automatic

  • Paper

  • Thick Paper

  • 1400mm

  • CZXY-1400

  • 800mm

  • Pneumatic Brake

  • by Hydraulic

  • Max:1500mm

  • 4000kg

  • 380V 50Hz

  • Hydraulic Cylinder Lift

  • Included

  • 6000mm.

  • Plastic Film Wrapping Outside, Container

  • hydraulic type

  • CZXY

  • Cangzhou City, Hebei Province

  • 8441809000

  • 3-5sets/Month

  • Available | Customized Request

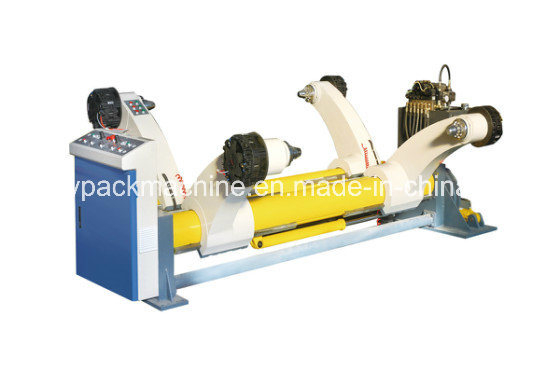

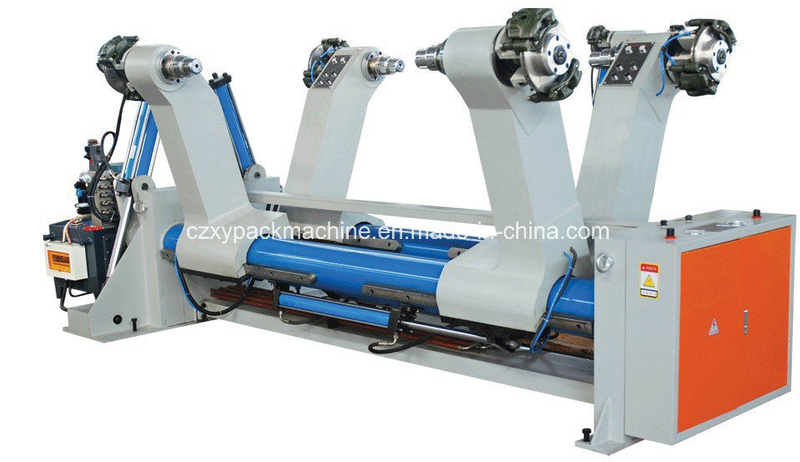

Hydraulic Mill Roll stand for 5 ply carton production line

Hydraulic Mill Roll Stand for 5 Ply Carton Production Line
Structure and Features:
1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2,Reel paper lift-lower, clamp, loosen, movement, contra position operated by hydraulic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake


Spec of stand:
1, Reel Stand driven by hydraulic
2, Kraft paper range:
Width: Max: 1400mm Min:800mm
Diameter: Max: Φ1500mm
Max Weight:4000Kg(One side)
3, Pneumatic Source Pressure(Mpa): 0.4---0.8Mpa
4, Power: 380V 50Hz


Spec of Hydraulic:
1,Working Pressure(mpa):16-18mpa,
lift hydraulic cylinder:Φ100×440mm,
Clamping hydraulic cylinder: Φ63×1300mm
Power Motor for Hydraulic Station:3KW --380V -- 50Hz


Spec of electric motor:
1, Reel Paper Nipping Motor Power: 500W*4pcs Short Time(S2) Working Type Nominal voltage:380V 50Hz
2, Lifting Motor Woking Power: 1.5KW 380 V 50 Hz


Box Producing Process:
Hydraulic Mill Roll Stand for 5 Ply Carton Production Line

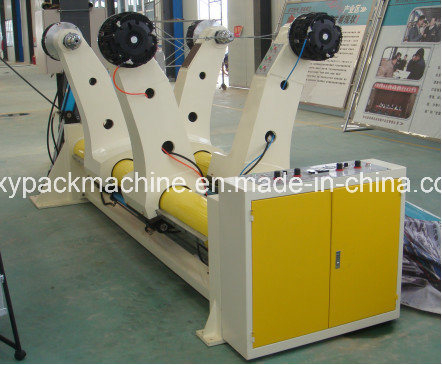

Factory Manufacture Process:
Hydraulic Mill Roll Stand for 5 Ply Carton Production Line
Hydraulic Mill Roll Stand for 5 Ply Carton Production Line
Customer Visit:
Hydraulic Mill Roll Stand for 5 Ply Carton Production Line

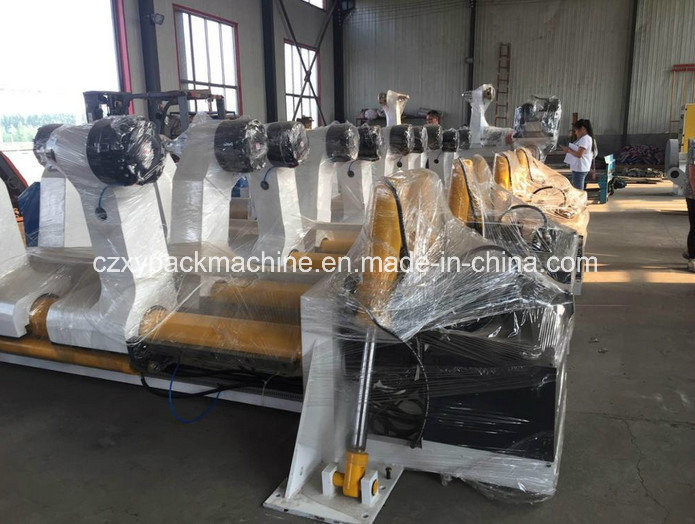

Delivery Pictures:
Hydraulic Mill Roll Stand for 5 Ply Carton Production Line

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
