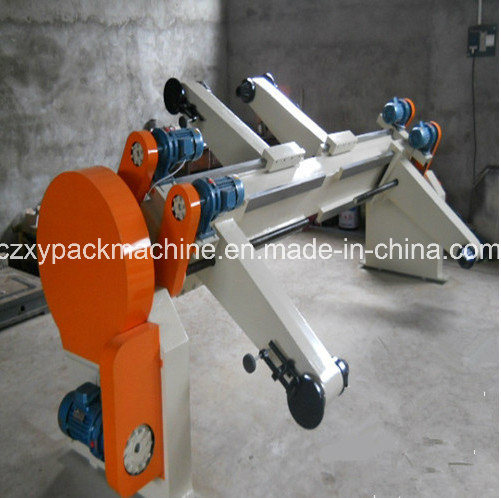

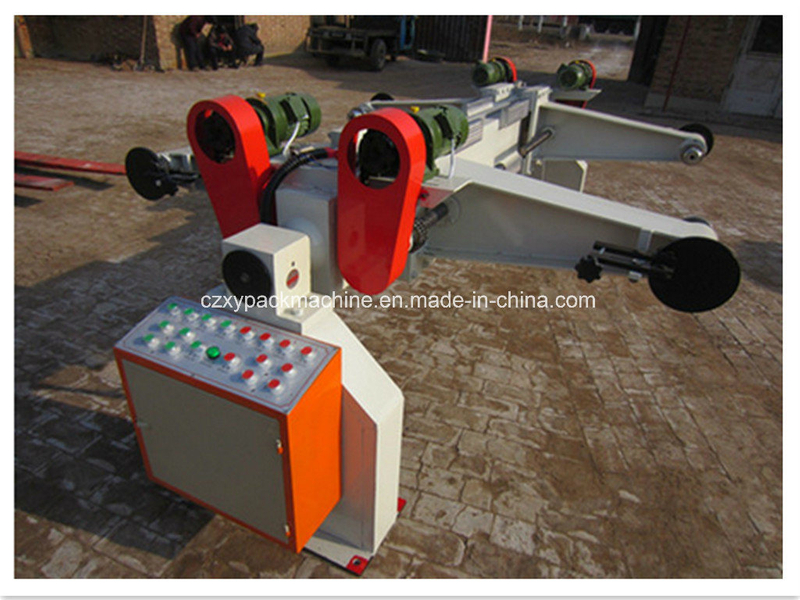

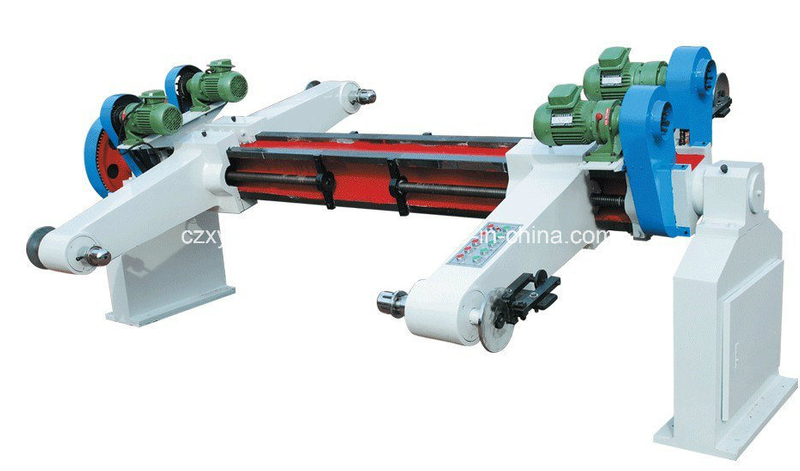

Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine

Quantity:
  • New
  • CE
  • Automatic
  • Paper
  • Thick Paper
  • 1400mm
  • CZXY-1400
  • 700mm
  • Pneumatic Brake
  • by Electric
  • Max:1400mm
  • 2000kg
  • 380V 50Hz
  • Electric Mechanic
  • Included
  • Available
  • Plastic Film Wrapping Outside, Container
  • electric type
  • CZXY
  • Cangzhou City, Hebei Province
  • 8441809000
  • 15 Sets/Month
  • Available | Customized Request
Electric shaftless mill roll stand for corrugated cardboard machine
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine
Structure and Features :
1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2, Reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake , simple & useful.

Spec of stand :
1, Reel Stand driven by electric
2, Kraft paper range:
Width: Max: 1 4 00mm Min: 7 00mm
Diameter: Max: Φ1 4 00mm
Max Weight:2000Kg(One side)

Spec of electric motor:
4, Reel Paper Nipping Motor Power: 500W* 4pcs Short Time(S2) Working Type Nominal voltage: 380 V 5 0Hz
5, Lifting Motor Woking Power: 1.5KW 380 V 50 Hz

Box Producing Process:
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine

Factory Manufacture Process:
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine
Customer Visit:
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine

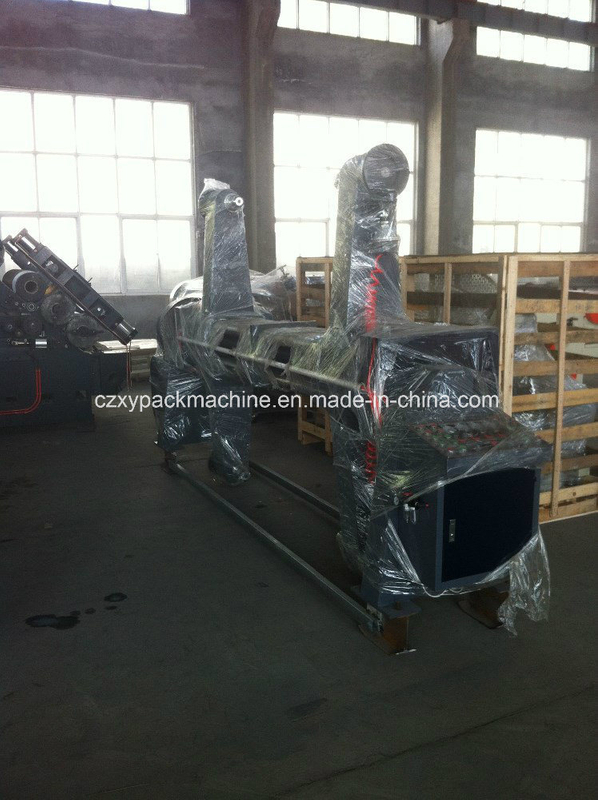

Delivery Pictures:
Electric Shaftless Mill Roll Stand for Corrugated Cardboard Machine


Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
