Single Face Corrugated Paper Cardboard Machine Production Line

Share to:

Single Face Corrugated Paper Cardboard Machine Production Line

Quantity:



Inquire Add to Basket

Usage:
Packaging of Goods, Produce Packing Belt
Packaging Material:
Paper
Packaging:
Cartons
Driven Type:
Electric
Type:
Packaging Production Line
Function:
Transport Packaging, Storage and Packaging, Sales Packing
Packaging Technology:
Mildew Proof Packaging
Application:
Drinks, Dairy Products, Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Hair Care Products
Soft and Hardness:
Flexible Package
Circulation Function:
In the Packaging
Frequency of Use:
Packing
Mode of Operation:
Packaging of Export Products
Width:
1400mm
Design Speed:
60m/Min
Economic Speed:
40m/Min
Corrugated Type:
a, B, C, E
Heating Methhhod:
Electricity Heating
Power:
380V 50Hz
Equipment Cover:
15m*10m*15m
Totral Power:
20kw
Working Power:
15kw
Transport Package:
Standard Abroad Packaging Container
Specification:
computer contro
Trademark:
CZXY
Origin:
Hebei China
HS Code:
8441309000
Production Capacity:
10sets/Month
Customization:
Available | Customized Request

Product Description

2ply single facer paper corrugation carton box packing machine

Single Face Corrugated Paper Cardboard Machine Production Line

CZXY-1400 2ply-60m/min single facer corrugation line(Electricity heating)

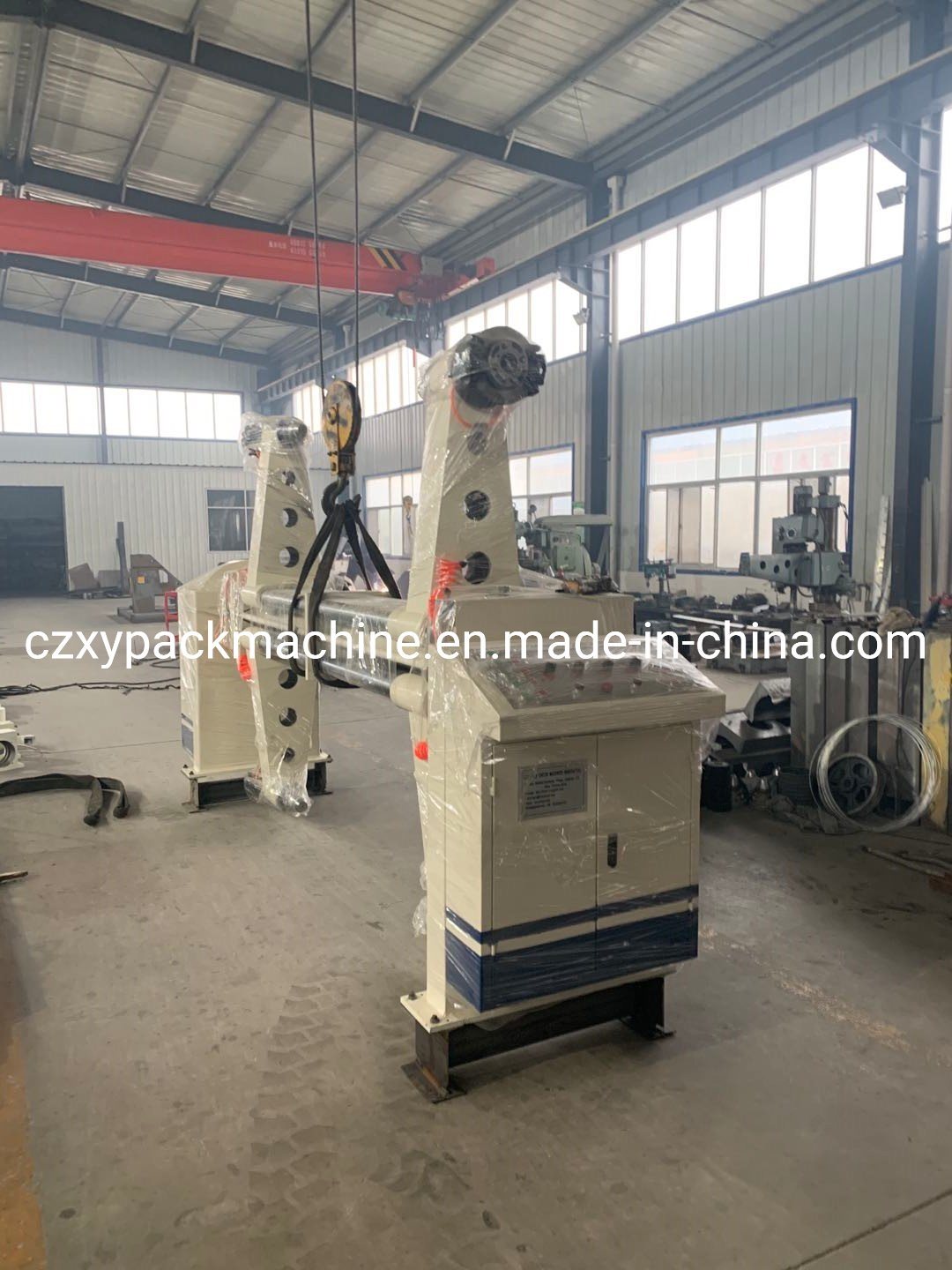

1.ZJ-F Electric shaftless mill roll stand
Structural features:
★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 6000mm.
★Manual dics brake,add screw following.
★Electric elements centralized control the electric elements,expand chuck.

Technical parameters:
1.Paper roller stand driven type:mechanical electric operation
2.Kraft paper range:Width: Max: 1400mm Min: 600mm
3.Kraft paper Diameter: Max: Φ1400mm Min: 400mm
4.Max Weight:2000Kg(One side)
5.Spec of electric motor:
★ Reel Paper Nipping Motor Power: 550W*4pcs Short Time(S2) Working Type Nominal voltage:380V 50Hz
★ Lifting Motor Woking Power: 1.5KW 380 V 50 Hz

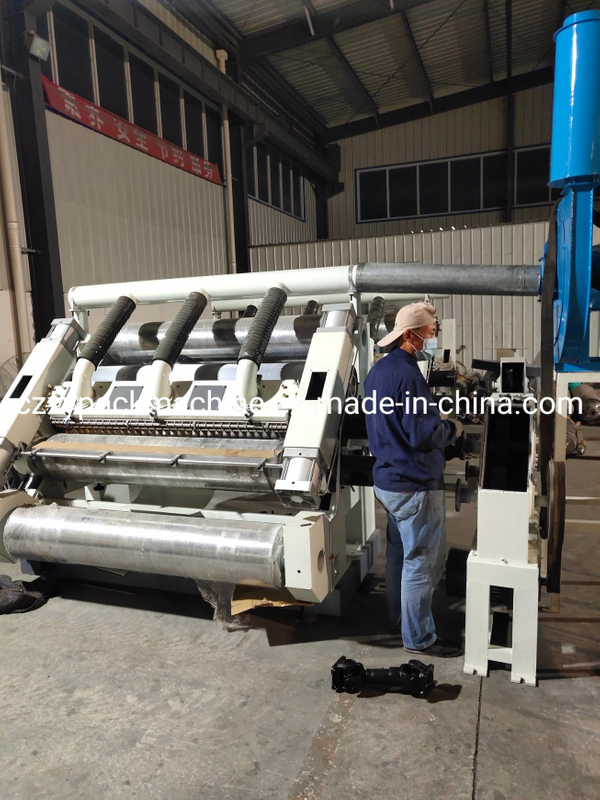

SF-280S fingerless type single facer

Structural features:
★Adopt suction structure, equipped with high pressure powerful fan. The suction equipped with silencer device, gas source and electrical control are centralized in the same operation cabinet, no less than 1.5 meters to the host, and the operating side is fully enclosed.

★Wall plate cast iron structure, wall thickness 130mm.

★Corrugated roller material is made of 48CrMo alloy steel, quenched and tempered, intermediate frequency quenched, corrugated main roll diameter ¢ 280mm, surface hardness above HRC58 degrees. The key parts of the tile roller and pressure roller bearing are high-temperature bearings produced by Japan NSK.

★Pressure roller ¢ 292mm, surface grinding and chrome plating; cylinder control up and down movement, the material is medium carbon steel No. 45, quenched and tempered (with buffer device).

★Pneumatic control to fill glue and reduce glue. The coating roller diameter is 216mm. After the surface is grinded, it is engraved with a 25-line pit pattern. After processing, it is plated with hard chrome. The surface of the scraper roller is polished and hard chrome plated.

★Raw materials for corrugating roll and pressure roll were supplied by Zhongyuan Special Steel. Corrugated roll was unilaterally 0.15mm high in medium and pressure roll was 0.075mm high in one side. Limit device added. Compact cylinder with ¢ 160mm cylinder.

★The preheat roll adopts seamless steel pipe ¢320mm from Tiangang.

Technical Parameters:
1,Working size:1400mm
2,operation direction:left or right(determined in accordance with customer plant)
3,Design speed:60m/min,working speed 40m/min.
4,temperature range:160-200ºC
5,Air source:0.4-0.9Mpa
6,Heating type:Electric heating
Roll diameter parameters:
1,Corrugated roller diameter:¢280mm
2,Press roller diameter:¢292mm
3,Coating glue roller diameter:¢216mm
4,Pre-heater roller diameter:¢320mm
Power motor parameters:
1,Main drive motor:7.5KW
2,Rated voltage:380V 50Hz Continuous (S1) working standard
3,Suction motor:7.5KW rated voltage:380V 50Hz Continuous (S1) working standard

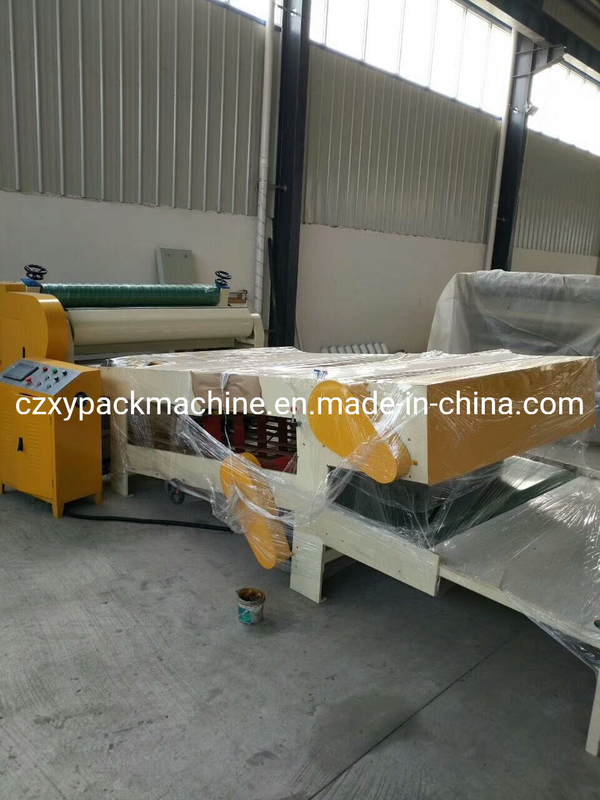

NC-1700 Computer 2ply corrugated paper cutting machine with stacker

Computer 2ply corrugated paper cutting machine with stacker is a device that realizes single-knife sheet cutting machine to cut single face corrugated paper to different size as required and then collected by the 2ply paper-receiving machine, which greatly reduces a lot of manpower equipment.

1.2ply corrugated paper cutting machine
(1)Computer 2ply corrugated paper cutting machine is a device that realizes single-faced corrugated paper with fixed length and lengthwise cutting. It has the advantages of short change time, high cutting precision and fast working speed. It is less wasteful of cardboard when changing order. It is suitable used for high-end color printing and used with other packaging equipment together.

The use of variable frequency motor speed control and servo drives reduces the failure rate caused by the wear of the mechanical deceleration during using, making the cutting length more accurate (with an average error of ±1.5 mm) and better mechanical performance. (This machine can choose thin knife cutting).

Technical Parameters:

Model	Unit	1700
Max.paper cutting width	mm	1600
Paper cutting length range	mm	10--2400
Paper cutting thickness	mm	1--2
Control voltage	VAC	220
Power voltage	VAC	380
Distribution capacity	kw	6
Working speed	m/min	80

2.Stacker
1)The single corrugated stacking machine is the matching machine after the single-knife sheet cutter. After the single-knife cutter cuts the single-faced corrugated paper as required and then is stacked by a single corrugated receiving machine, which reduces a lot of manpower.
2)This machine adopts PLC touch screen design, make it easy for operators to fully understand production condition.

3)The machine frame is welded in the middle plate.
4)The machine has 8 active conveyor belts (4 open), 9 cassettes, and 1 flat belt.
5)The whole machine is 3800 mm long and 1800mm-2500 mm wide.
6)This machine can realize automatic point-by-step automatic points without stopping.

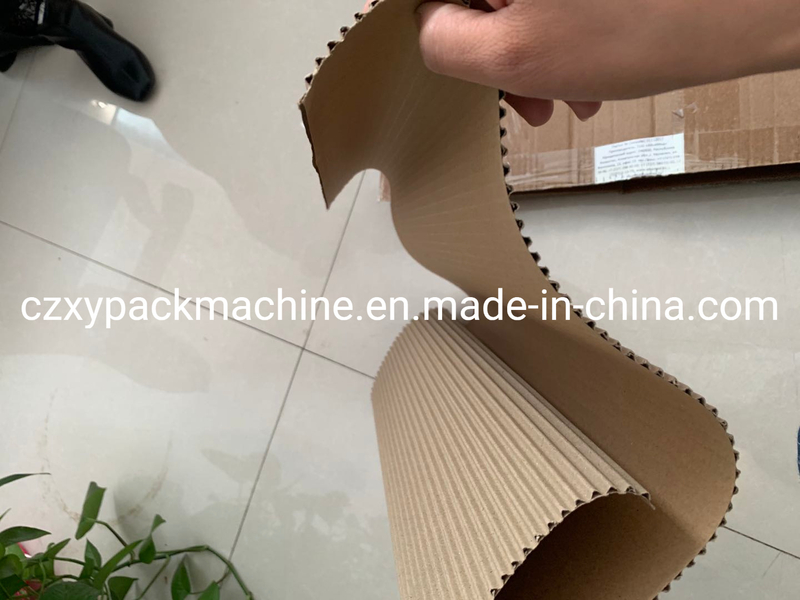

Process Details:

e
s:
Single Face Corrugated Paper Cardboard Machine Production Line
