High Speed Single Face Corrugated Paper Making Machine

Share to:

High Speed Single Face Corrugated Paper Making Machine

Quantity:



Inquire Add to Basket

Condition:
New
Certification:
CE
Automation:
Automatic
Suitable for:
Paper
Paper Thickness:
Normal Specification Paper
Width:
1400/1600/1800mm
Model NO.:
CZXY-1400-280
Heating Type:
Electric Heating
Mill Roll Stand:
Electric Mill Roll Stand
Single Facer Speed:
60-80m/Min
Corrugated Rollers Diameter:
280mm
Sheet Cutter Type:
Computerized
Sheet Cutter Width:
1400/1700/2000
Stacker:
Attached with Sheet Cutter
Corrugation Machine Type:
Fingerless Type
Flute Type:
a, B, C, E, F Optional
Transport Package:
Plastic Film, Container.
Specification:
Unilateral maximum load: Maximum 3000 kg
Trademark:
Xiaoyuan
Origin:
Cangzhou City, Hebei Province
HS Code:
8441809000
Production Capacity:
10-15sets/Month
Customization:
Available | Customized Request

Product Description

High speed Single face corrugated paper making machine

1.Electric Mill Roll Stand
Structure and Features :
1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2, Reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake , simple & useful.

Spec of stand :
1, Reel Stand driven by electric
2, Kraft paper range:
Width: Max: 1 6 00mm Min: 7 00mm
Diameter: Max: Φ1 4 00mm
Max Weight:2000Kg(One side)

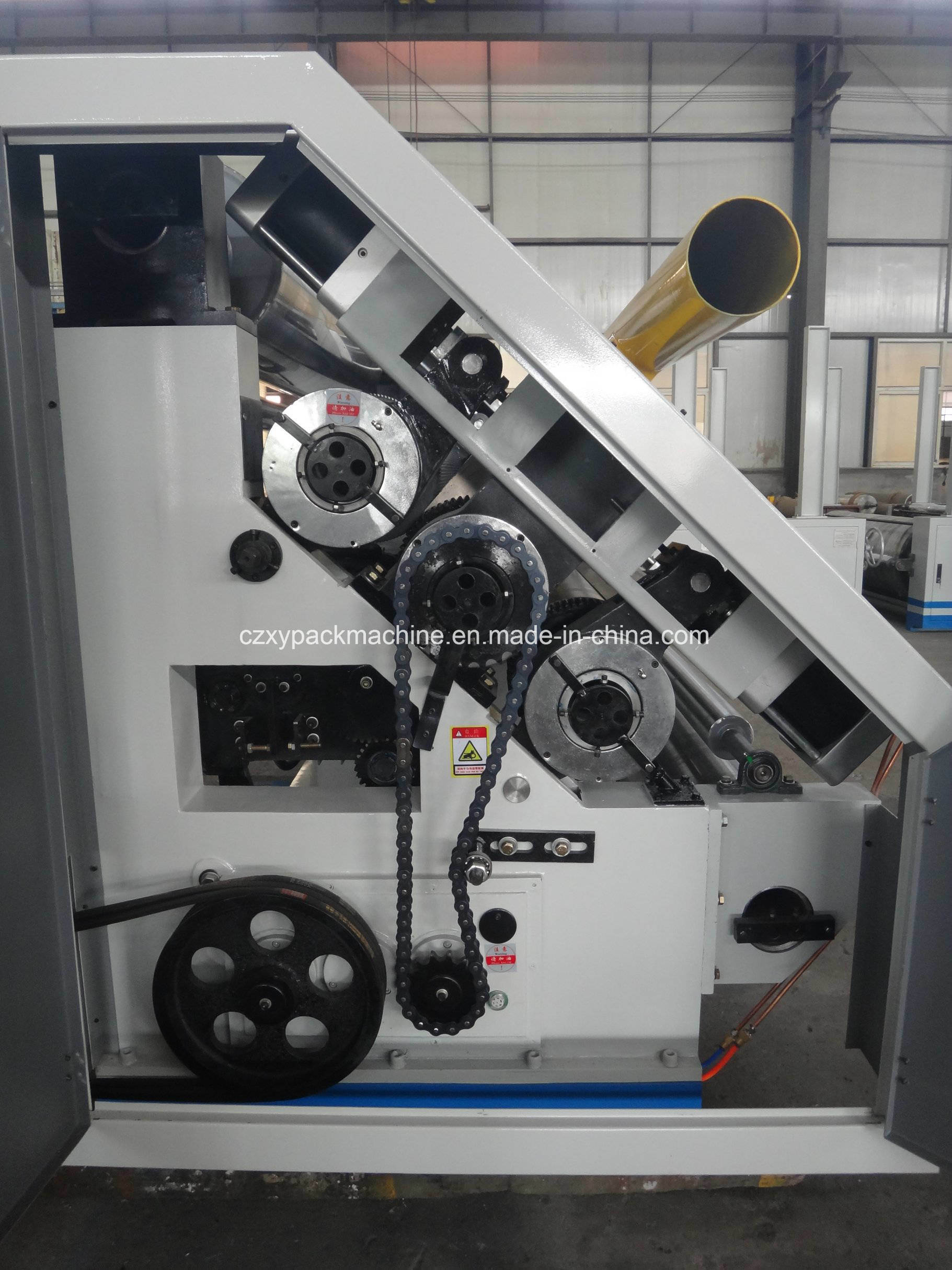

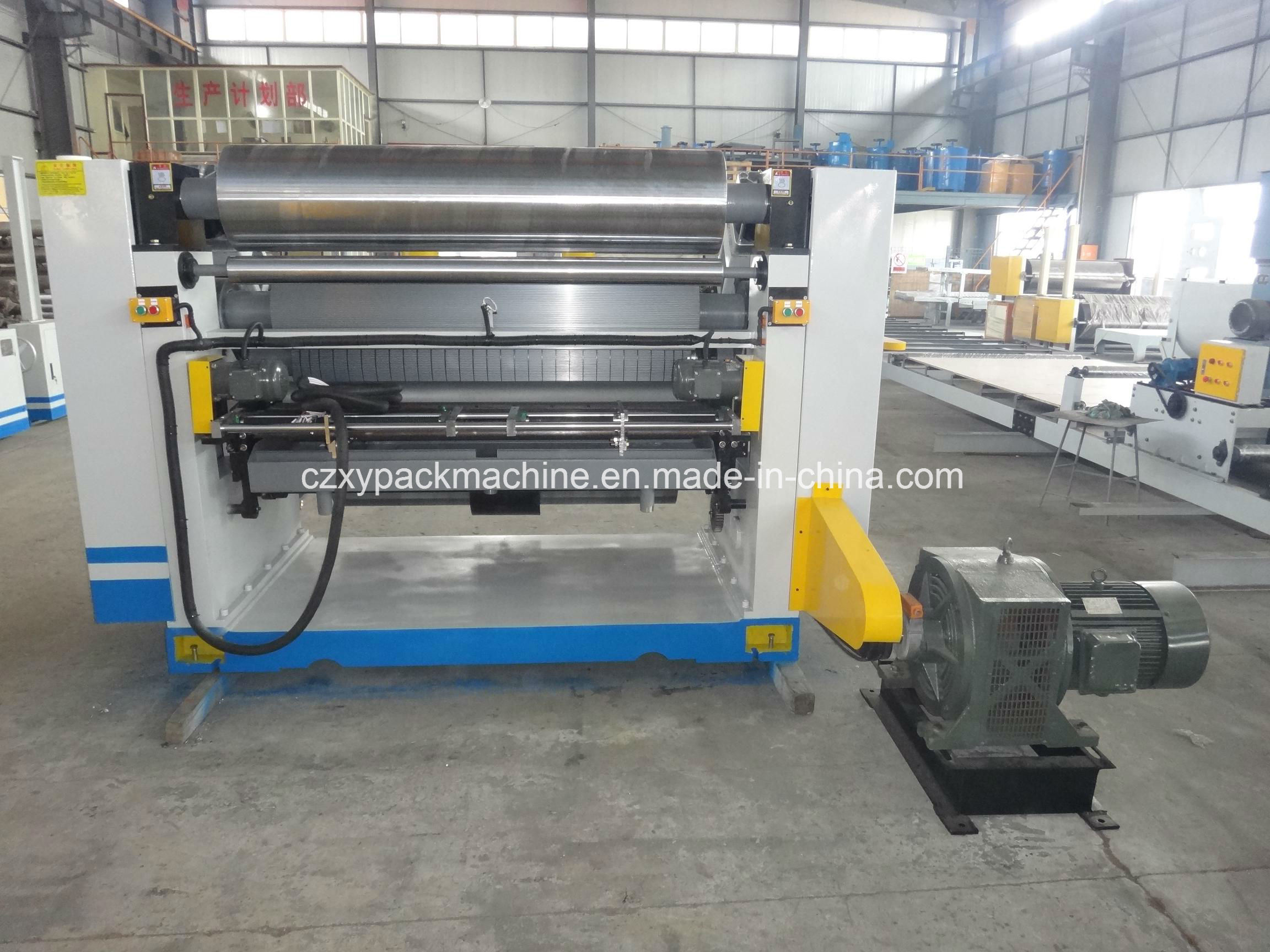

2.280mm Fingerless Type Single Facer
Glue Rollers:

Diameter	Φ215mm
Processing Way	Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome
Control Way	Pneumatic cylinder control of the Lifting Up-down

Corrugated Rollers:

Diameter	Φ280mm
Material	48CrMo high quality alloy steel,rigidity HRC60°
Processing Way	Through hardening and tempering→inside hold boring→roller heading connecting→weld→tempering to low the stress→ meticulous turning→rough grinding→mid frequeney induction hardening→Nc meticulous grinding→chrome plating.
Flute Type	(U/V) ACBE as customer's requirements

Press Rollers:

Diameter	Φ284mm
Material	medium steel (MS)45#
Processing Way	The surface is grinded then plating chrome, hardening and tempering(With Buffer)
Control Way	Penumatic cylinder control of the Lifting Up-down

Preheater Rollers:

Diameter	Φ320mm
Material	seamless steel tube
All connected by flexible metallic tubes

Transmission

About gear

Close style gear transmission oiliness lubricated,
long use life of gear

Common Spec :

Machinery Speed	KnightΦ280:100 m/min
Width of Paper	1400mm
Style of Transmit cardboard	Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device.
Style of Control Roller	Pneumatic control the upper roller, pressure roller and glue roller
Lubrication	Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller's gears
Power	7.5 kw
Pneumatic & Electric control systems are in one operation counter, Distance between main machine no less than 1.5m
Wallboard: cast iron,thickness:130mm

3.computerized sheet cutter&stacker

parameter/specification	unit	1400	1700	2000
Max cutting width	mm	1300	1600	1900
Cutting rannge	mm	400--2400	400--2400	400--2400
Cutting thickness	mm	1--2	1--2	1-2
Power	kw	6	6	6
Working speed	m/min	80	80	80
