Fingerless single facer line for flute paper making

Fingerless Single Facer Line for Flute Paper Making


Fingerless Single Facer Line for Flute Paper Making

1.Electric Mill Roll
Stand
Structure and Features :
1,Symmetrical structure,can carry two kraft paper at one time,which can work without brake.
2,Reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly.
3,Brake: pneumatic brake, simple & useful.

Spec of stand :
1, Reel Stand driven by electric
2, Kraft paper range:
Width: Max: 1600mm Min:700mm
Diameter: Max: Φ1400mm
Max Weight:2000Kg(One side)

2.280mm Fingerless Type Single Facer
Glue Rollers:
Diameter Φ215mm
Processing Way Surface of glue roller is grinded,
then with 25 line rut type net dot,then plating chrome
Surface of glue banlance roller is grinded then plating chrome
Control Way Pneumatic cylinder control of the Lifting Up-down

Corrugated Rollers:
Diameter Φ280mm
Material 48CrMo high quality alloy steel,rigidity HRC60°
Processing Way Through hardening and tempering→inside hold boring→roller heading connecting→weld→tempering to low the stress→ meticulous turning→rough grinding→mid frequeney induction hardening→Nc meticulous grinding→chrome plating.
Flute Type (U/V) ACBE as customer's requirements

Press Rollers:
Diameter Φ284mm
Material medium steel (MS)45#
Processing Way The surface is grinded then plating chrome,
hardening and tempering(With Buffer)
Control Way Penumatic cylinder control of the Lifting Up-down

Preheater Rollers:
Diameter Φ320mm
Material seamless steel tube
All connected by flexible metallic tubes

Transmission
About gear Close style gear transmission oiliness lubricated,
long use life of gear

Common Spec :
Machinery Speed KnightΦ280:100 m/min
Width of Paper 1400mm
Style of Transmit cardboard Vacuum Cover adsorbable style,
Hight pressure Draw fan.with wind control Adjusting & noise deadening device.
Style of Control Roller Pneumatic control the upper roller, pressure roller and glue roller
Lubrication Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller's gears
Power 7.5 kw
Pneumatic & Electric control systems are in one operation counter,
Distance between main machine no less than 1.5m
Wallboard: cast iron,thickness:130mm

3.computerized sheet cutter&stacker
parameter/specification unit 1400 1700 2000
Max cutting width mm 1300 1600 1900
Cutting rannge mm 400--2400 400--2400 400--2400
Cutting thickness mm 1--2 1--2 1-2
Power kw 6 6 6
Working speed m/min 80 80 80

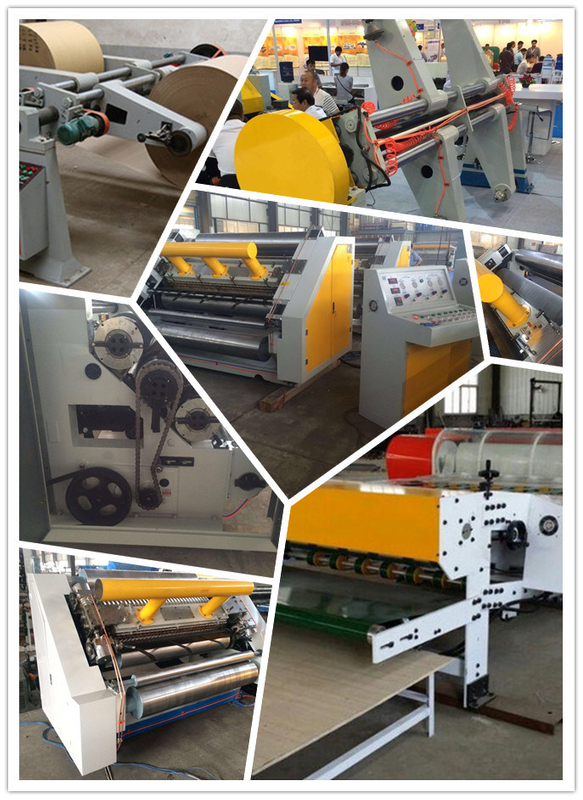

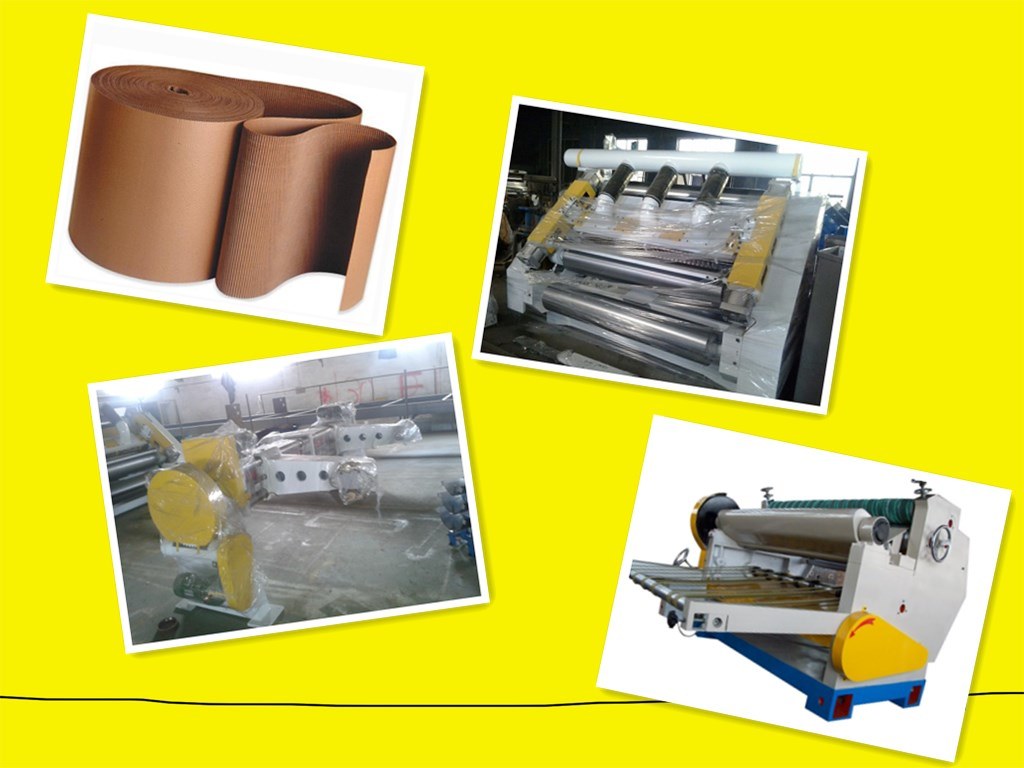

Delivery pictures:

Fingerless Single Facer Line for Flute Paper Making

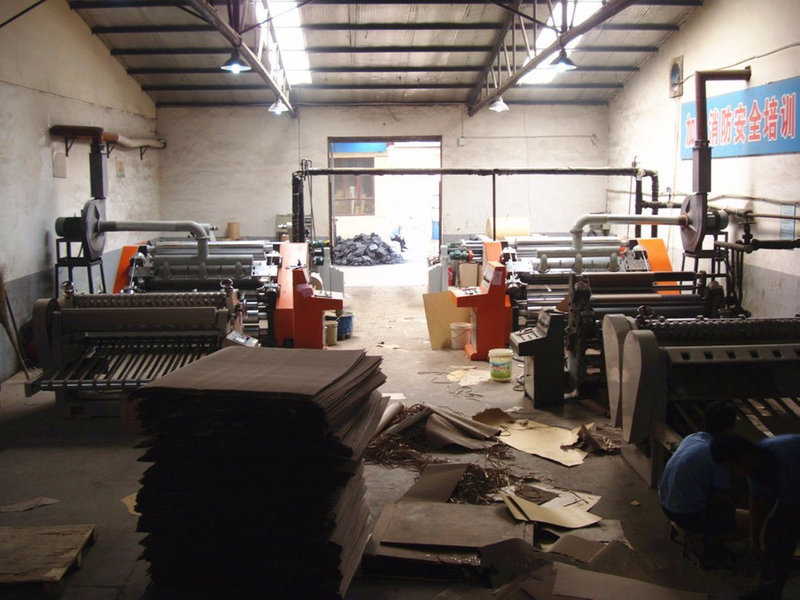

Layout Picture:

Fingerless Single Facer Line for Flute Paper Making
Factory Manufacture Process:
Fingerless Single Facer Line for Flute Paper Making

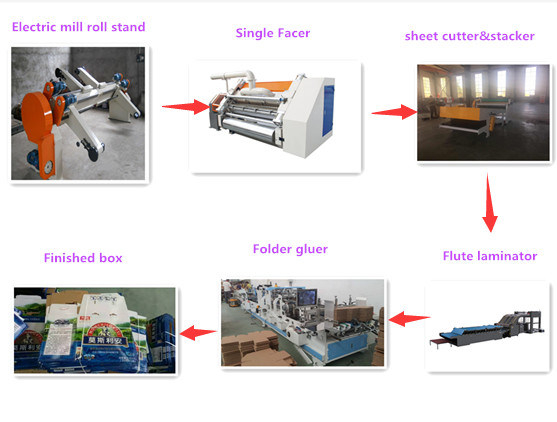

Carton Making Process:
Fingerless Single Facer Line for Flute Paper Making
