ML 750 corrugated board die cutting creasing machine
Die-cutting & creasing machine. Application: Die-cutting & creasing machines are special equipment for die cutting and creasing a wide range of material, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing ,packing, decoration and other industry, and it is acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service. Features: 1.Sliding bearings are made of high quality cooper alloy, wear-resisting and shake reducing. 2.Flywheel is with big moment of force and large pressure. 3.High strength due to one piece casting by using top-ranking material for machine body. 4.Single plate electromagnetic clutch is sensitive and reliable. With functions of single crush-cutting, continuous crush-cutting and opening delayed , delayed range is adjustable. 5.Operation height is reasonably designed, moving-bed can be opened to its optimum. 6.Safely system is reliable. Technical specifications: | Model | Max role area(MM) | Working speed(strokes/min) | Max rule length(m) | Motor power(kw) | Overrall deminsion(L*W*H) |
| ML1600 | 1600*1250 | 16±2 | <50 | 11 | 2170*2560*2230 |
| ML1500 | 1500*1150 | | | | |
| ML1500 | 1500*1050 | 17±2 | <45 | 7.5 | 2010*2400*1930 |
| ML1400 | 1400*1000 | 17±2 | <45 | 7.5 | 2010*2400*1930 |
| ML1300 | 1300*920 | 18±2 | <40 | 5.5 | 2000*2140*2000 |
| ML1200 | 1200*830 | 18±2 | <35 | 5.5 | 1920*2000*1800 |
| ML1100 | 1100*800 | 20±2 | <30 | 5.5 | 1900*1780*1700 |
| PYQ203D | 930*670 | 23±2 | <25 | 4.0 | 1670*1670*1630 |
| ML750 | 750*520 | 25±2 | <15 | 2.2 | 1260*1350*1280 |

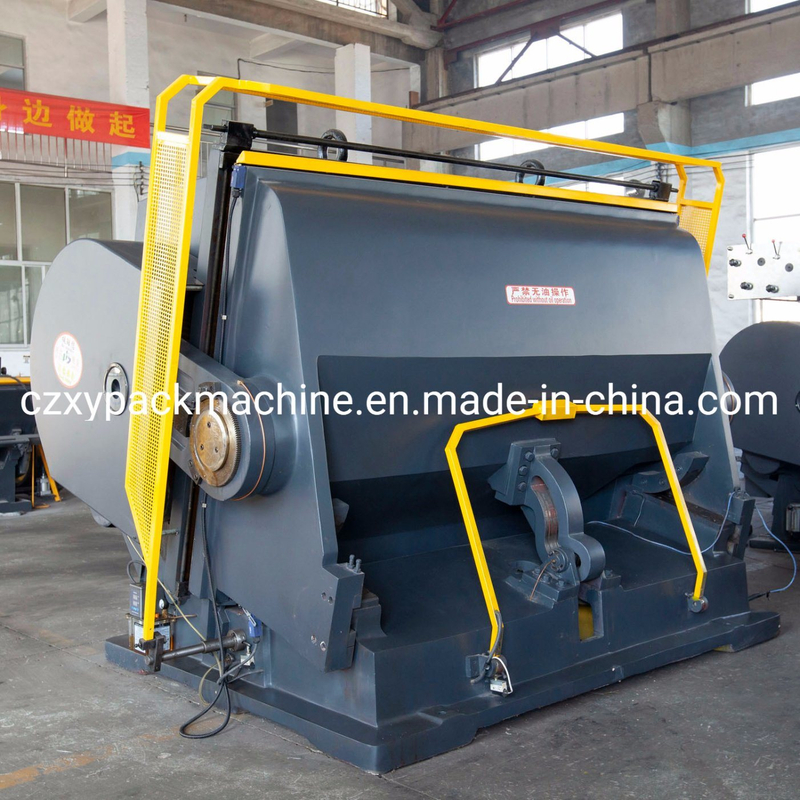

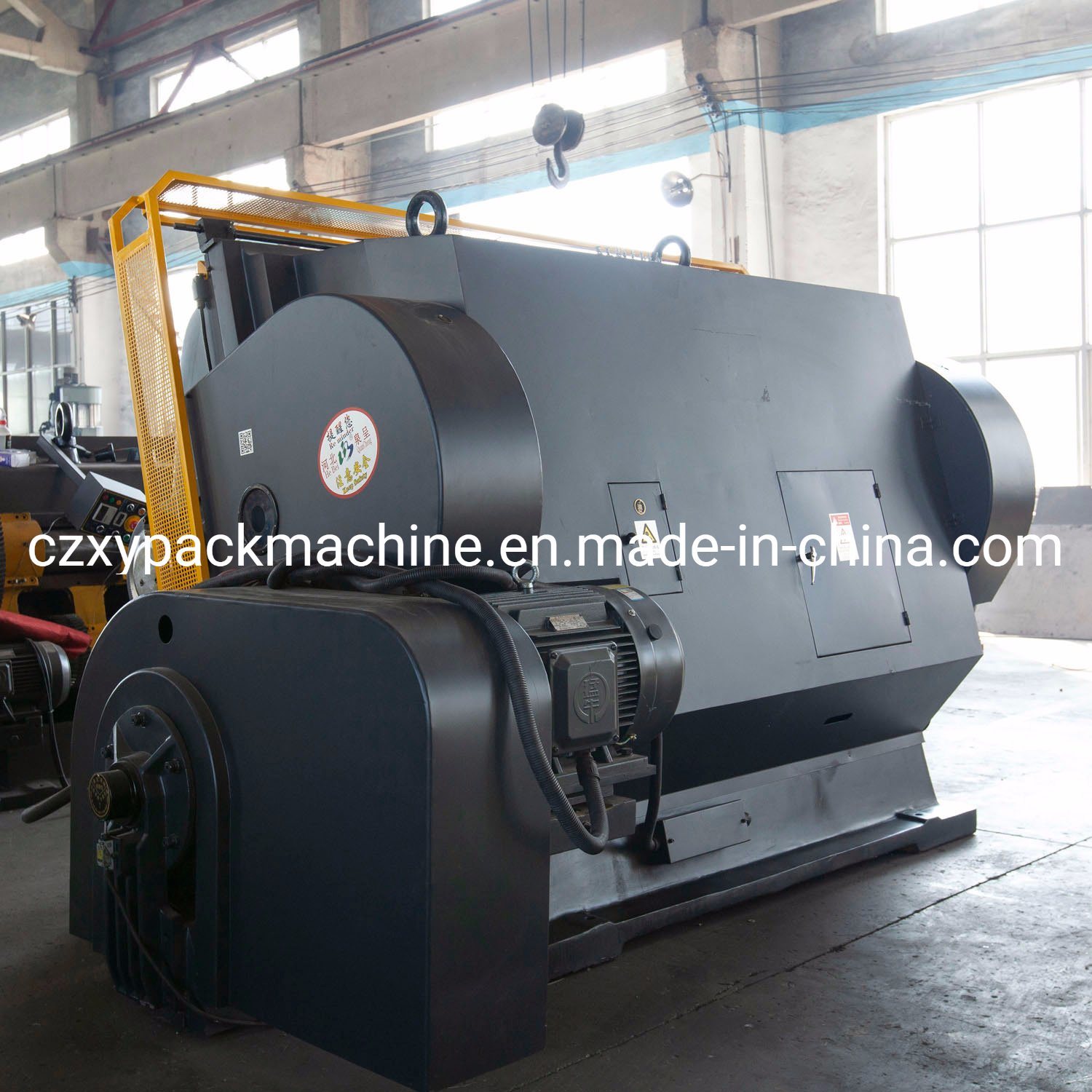

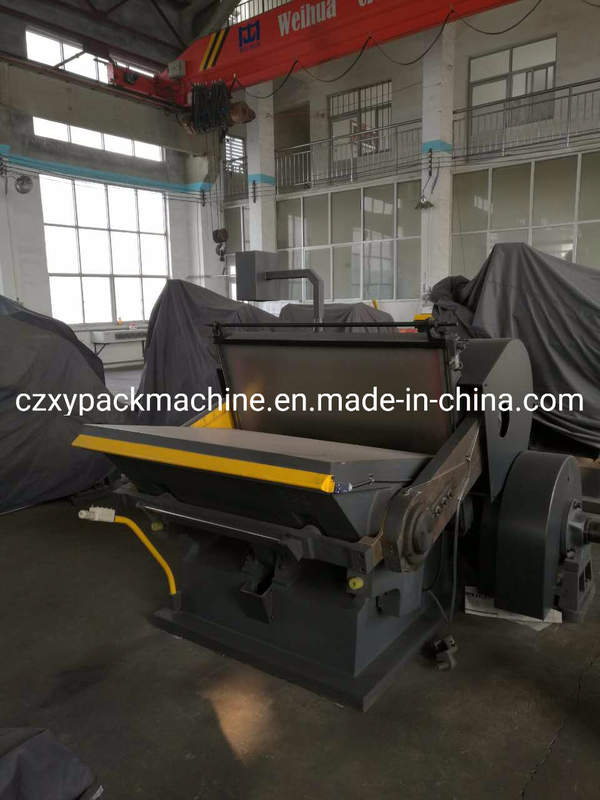

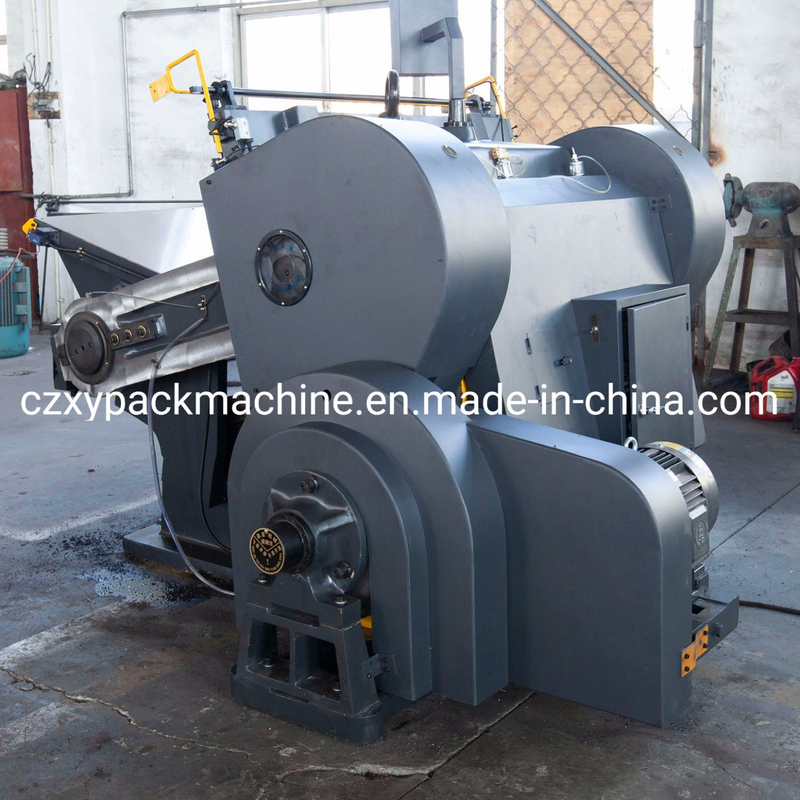

*Gear output and material: obliquely tooth output structure, material ductile cast and No. 45 steel * Electrical brand: CHINT, Schneider *This machine has four functions of counting, single piece cutting, continuous pressing and open delaying. The delay range can be adjusted, and the safety protection system is reliable. It inlude four insurance of Triangle insurance, Longmen insurance, hand insurance, photoelectric insurance. Machine details:
Box Producing Process:
Customer Visit:
Related Products:
Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
