Shaped Box Creasing & Die Cutting Machine

Quantity:

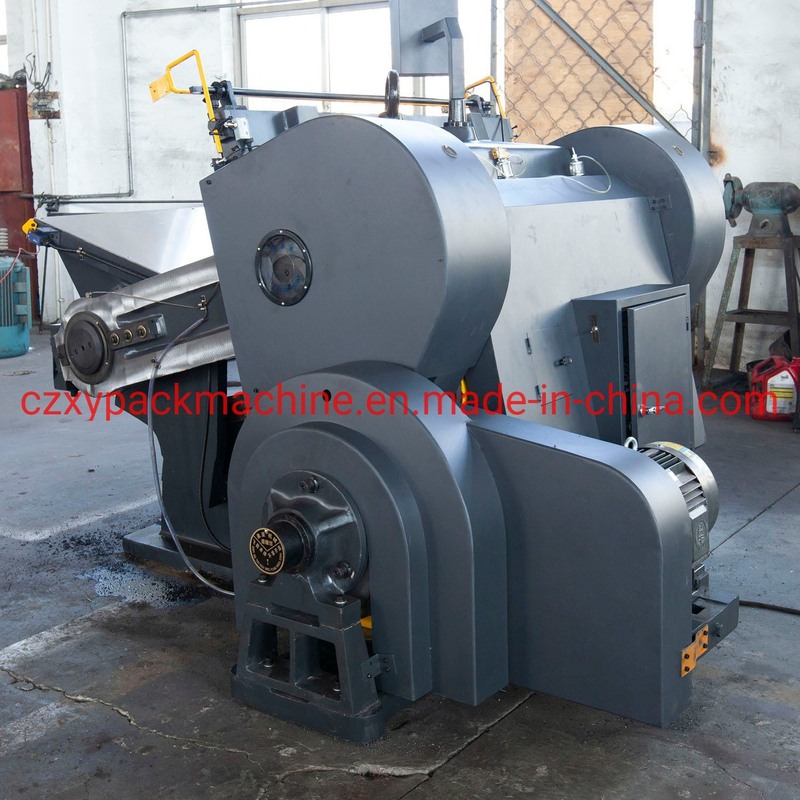

Shaped Box Creasing & Die Cutting Machine

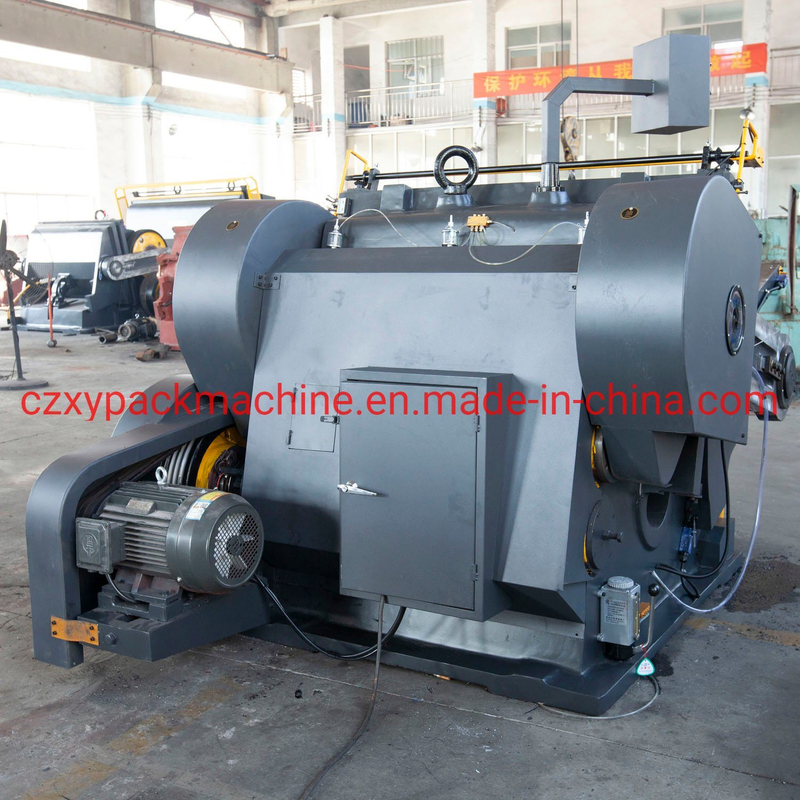

Shaped Box Creasing & Die Cutting Machine

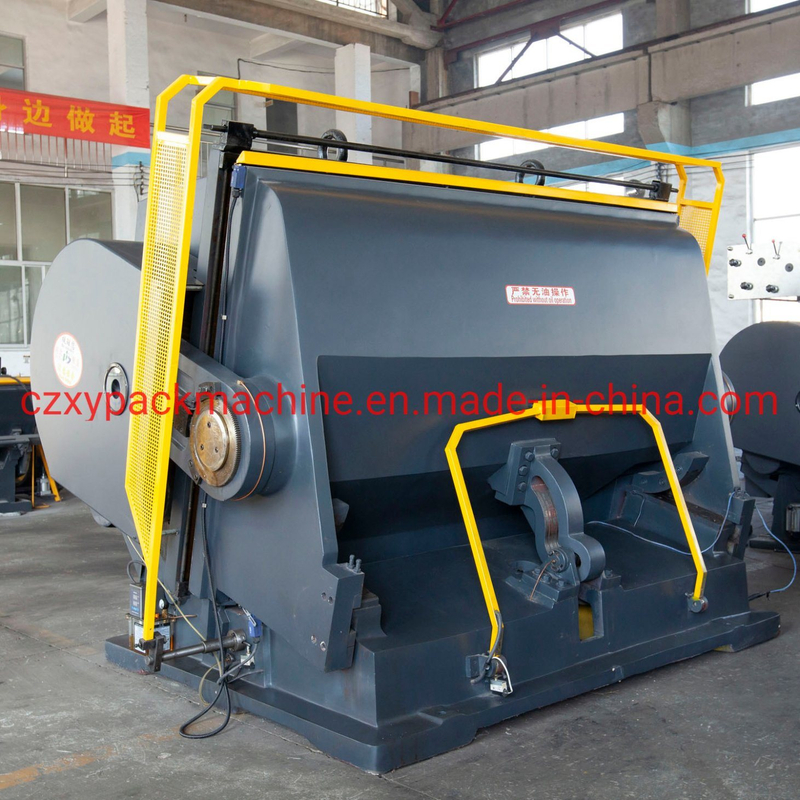

Shaped Box Creasing & Die Cutting Machine

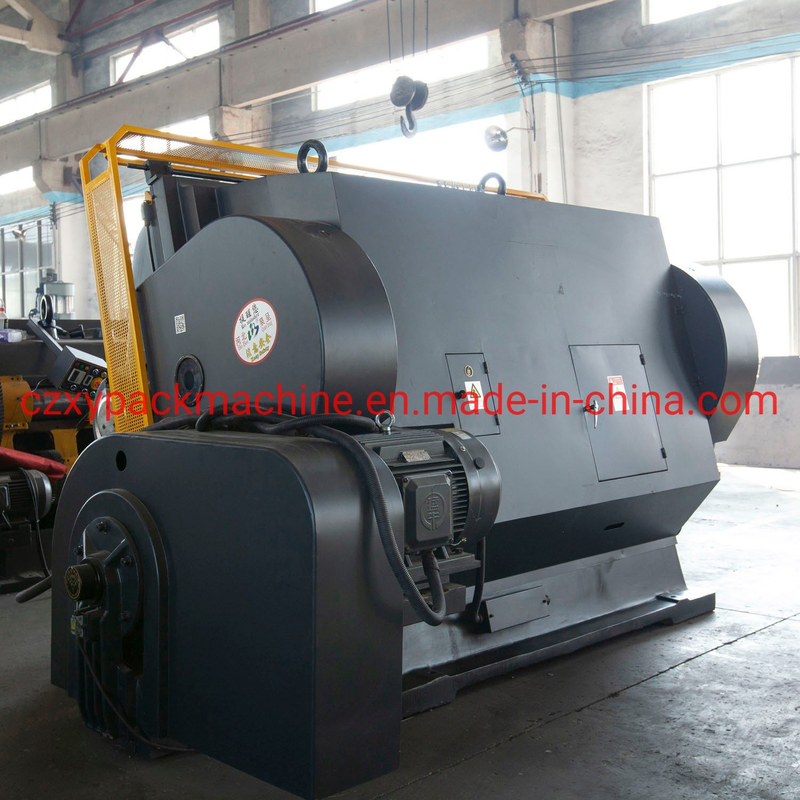

Shaped Box Creasing & Die Cutting Machine
Shaped Box Creasing & Die Cutting Machine
Shaped Box Creasing & Die Cutting Machine
  • Mechinery&Hardware

  • High-Speed Slitting Machine

  • Flat Knife Slitting

  • Cutting Part

  • Film

  • Paperboard Making Machine

  • Paperboard Making Machine

  • Paper

  • Paper

  • 750*520mm

  • 28±2strokes/Min

  • <15m

  • 2.2kw

  • 2000kg

  • 1260*1350*1280mm

  • Plastic Film, Container

  • Wall thickness: 50mm

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

high quality manual paper die cutting machine with reasonabal price

Shaped Box Creasing & Die Cutting Machine

Specifications
Flat creasing and die cutting machine
1.High die cuttng efficiency
2.Easy to operate
3.Running steady
4.CE,ISO certificate



1.Technical Parameters:
Model ML-750
Max effective cutting Size 750*520mm
Working speed 28±2 strokes/min
Creasing length <15m
Motor power 2.2kw
Net weight 2000kg
Overall size 1260*1350*1280mm


2. Functions and Characteristics:
1) Equip with four insurance parts and four functions. The insurance part including gantry insurance,
triangle insurance, hand shank insurance and automatic light operated insurance to makes the
machine safety and reliable.
2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and
reliable.
3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil
supplying,
4) Three functions including single piece pressing cutting, continuous pressing cutting and time-
delay when start machine, the delay time can be adjusted.

3. Components and Place of Origin:
Item Place of Origin
Copper bush Tin bronze
Steel plate Stainless steel
Motor Hengshui
Appliance Chnt
Bearing Hrb, Wafangdian
Travel switch(Insurance) Schneider

Product Overviews
.
Shaped Box Creasing & Die Cutting Machine



Carton box finished picture:
Shaped Box Creasing & Die Cutting Machine
Our Services

1. OEM service are available.
2. TradeManager online, also contact by Email, Skype. MSN.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.


Box Producing Process:

Shaped Box Creasing & Die Cutting Machine

Customer Visit:

Shaped Box Creasing & Die Cutting Machine

Related Products:

Shaped Box Creasing & Die Cutting Machine

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!

Best regards,
Carina
CZXY-PACK CARTON MACHINERY MANUFACTURE
Xiazhuang Industry Area, Cangzhou City, Hebei Province, China
Website: http://czxypackmachine.en.made-in-china.com
Made-in-China Website:http://czxypackmachine.en.made-in-china.com


Fax/tel:0317-7805687
