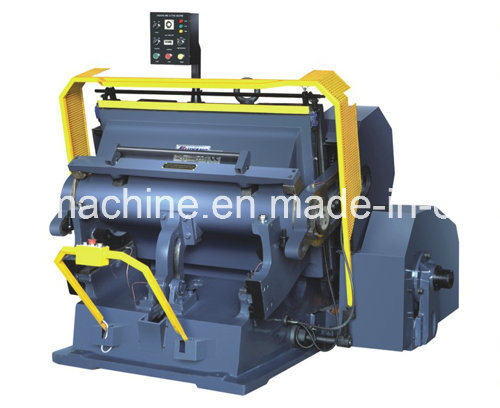

ML-1100 Cardboard Die Cutting and Creasing Machine
Specifications: creasing & die cutter
esay to operate and safety
stable & well-struction
Manual creasing and paperboard die cutting machine for corrugated carton box making
Introduction and Applications:
Die-cutting & creasing machines are special equipment for die cutting and creasing a wide range of material, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing ,packing, decoration and other industry, and it is acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Features: 1.Sliding bearings are made of high quality cooper alloy, wear-resisting and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
With functions of single crush-cutting, continuous crush-cutting and opening delayed , delayed range is adjustable.
5.Operation height is reasonably designed, moving-bed can be opened to its optimum.
6.Safely system is reliable.
Technocial Parameter: | Model | Max role area(MM) | Working speed(strokes/min) | Max rule length(m) | Motor power(kw) | Overrall deminsion(L*W*H) |
| ML1800A | 1800*1400 | 16±2 | <62 | 11 | 2240*2800*2130 |
| ML1600 | 1600*1250 | 16±2 | <50 | 11 | 2170*2560*2230 |
| ML1500 | 1500*1050 | 17±2 | <45 | 7.5 | 2010*2400*1930 |
| ML1400 | 1400*1000 | 17±2 | <45 | 7.5 | 2010*2400*1930 |
| ML1300 | 1300*920 | 18±2 | <40 | 5.5 | 2000*2140*2000 |
| ML1200 | 1200*830 | 18±2 | <35 | 5.5 | 1920*2000*1800 |
| ML1100 | 1100*800 | 20±2 | <30 | 5.5 | 1900*1780*1700 |
| PYQ203D | 930*670 | 23±2 | <25 | 4.0 | 1670*1670*1630 |
| ML750 | 750*520 | 25±2 | <15 | 2.2 | 1260*1350*1280 |
Finished box picture: Related Machines:

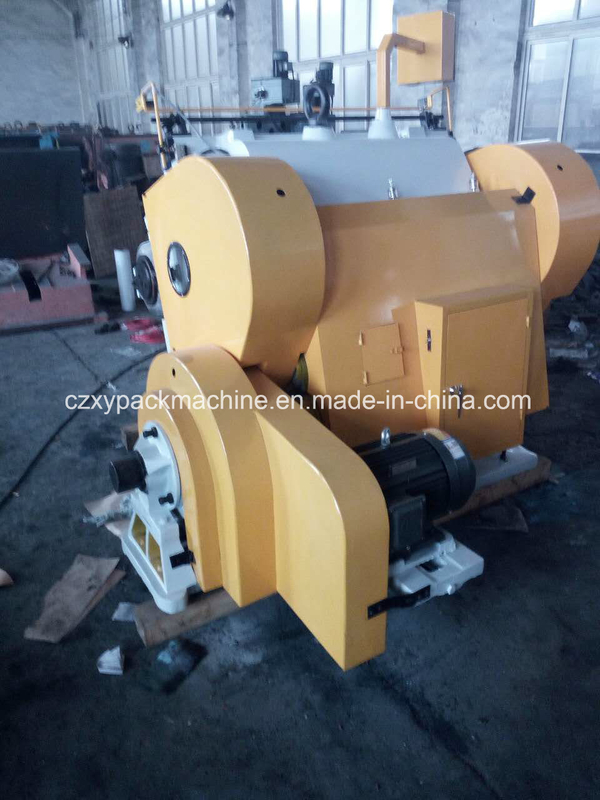

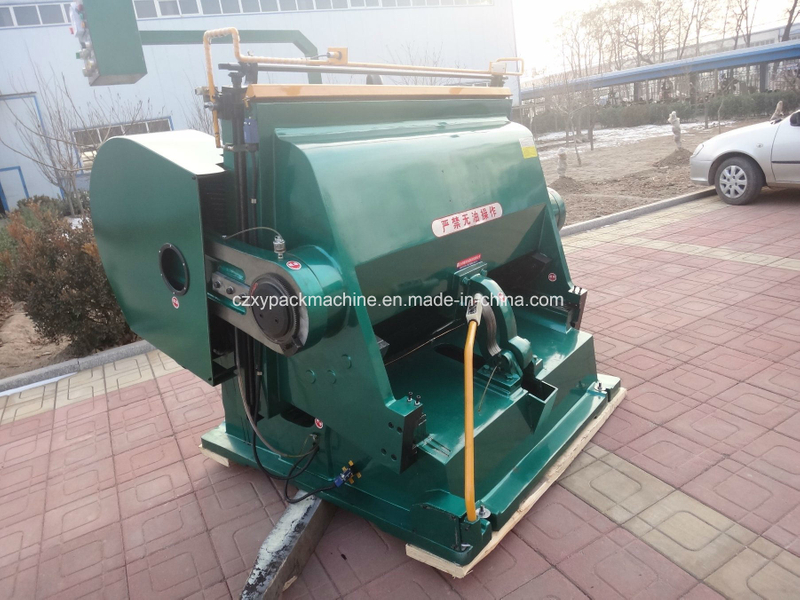

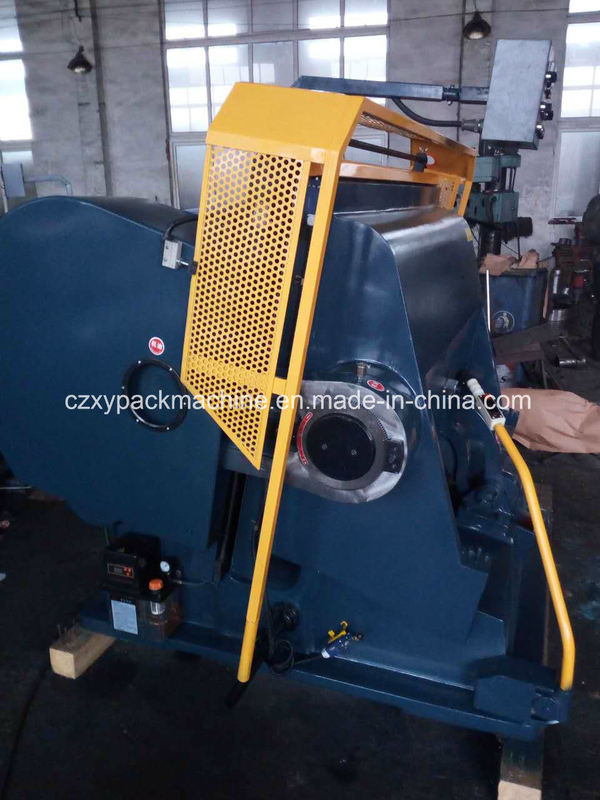

Delivery picture:
