Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting

Quantity:
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
  • Die Cutting and Creasing Machine

  • Platen

  • Horizontal

  • Steel Plate

  • Non-Computerized

  • Semi-Automatic

  • Paper Packaging Materials

  • 3ply, 5ply Corrugated and Paperboard

  • Spheroidal Casting and 45 Steel

  • 750,930,1100,1200,1300,1400,1500

  • Schneider or Chint

  • 4 Insurances

  • Plastic Film, Container

  • 1200

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

ML 1200 die cutting creasing machine for corrugated board cutting

Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting
Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting

Die-cutting & creasing machine.
Application:
Die-cutting & creasing machines are special equipment for die cutting and creasing a wide range of material, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing ,packing, decoration and other industry, and it is acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Features:
1.Sliding bearings are made of high quality cooper alloy, wear-resisting and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
With functions of single crush-cutting, continuous crush-cutting and opening delayed , delayed range is adjustable.
5.Operation height is reasonably designed, moving-bed can be opened to its optimum.
6.Safely system is reliable.

Technical specifications:
Model Max role area(MM) Working speed(strokes/min) Max rule length(m) Motor power(kw) Overrall deminsion(L*W*H)
ML1600 1600*1250 16±2 <50 11 2170*2560*2230
ML1500 1500*1150
ML1500 1500*1050 17±2 <45 7.5 2010*2400*1930
ML1400 1400*1000 17±2 <45 7.5 2010*2400*1930
ML1300 1300*920 18±2 <40 5.5 2000*2140*2000
ML1200 1200*830 18±2 <35 5.5 1920*2000*1800
ML1100 1100*800 20±2 <30 5.5 1900*1780*1700
PYQ203D 930*670 23±2 <25 4.0 1670*1670*1630
ML750 750*520 25±2 <15 2.2 1260*1350*1280

*Gear output and material: obliquely tooth output structure, material ductile cast and No. 45 steel
* Electrical brand: CHINT, Schneider
*This machine has four functions of counting, single piece cutting, continuous pressing and open delaying. The delay range can be adjusted, and the safety protection system is reliable. It inlude four insurance of Triangle insurance, Longmen insurance, hand insurance, photoelectric insurance.

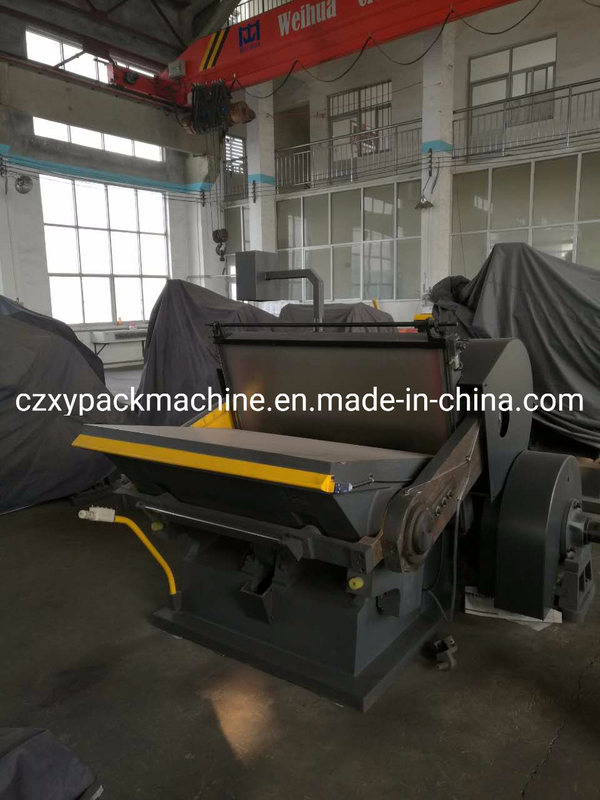

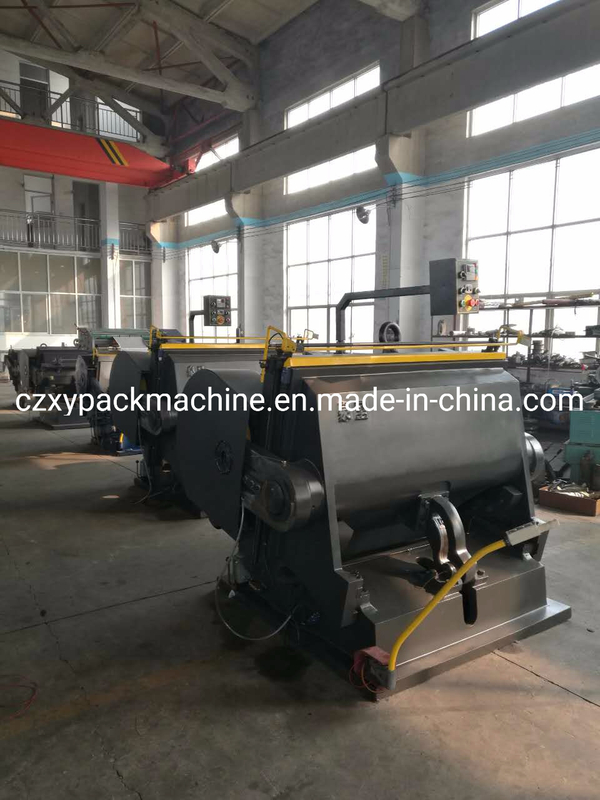

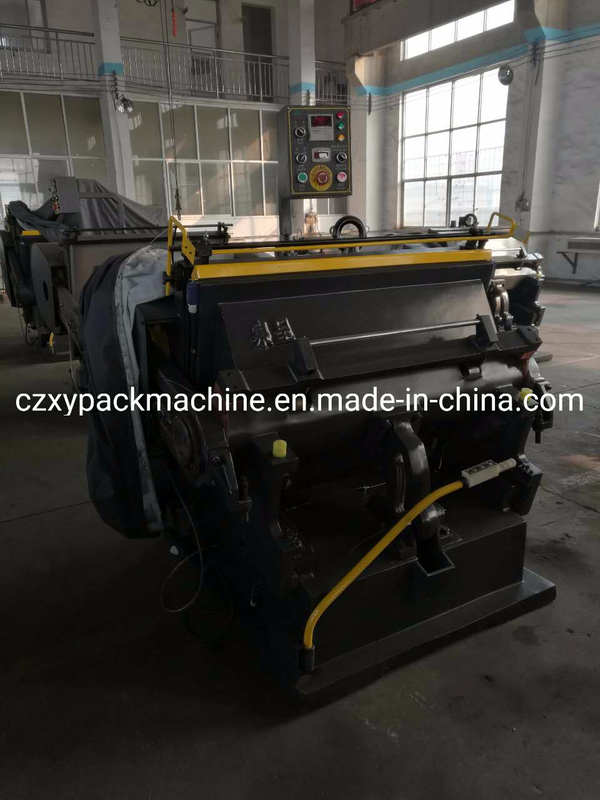

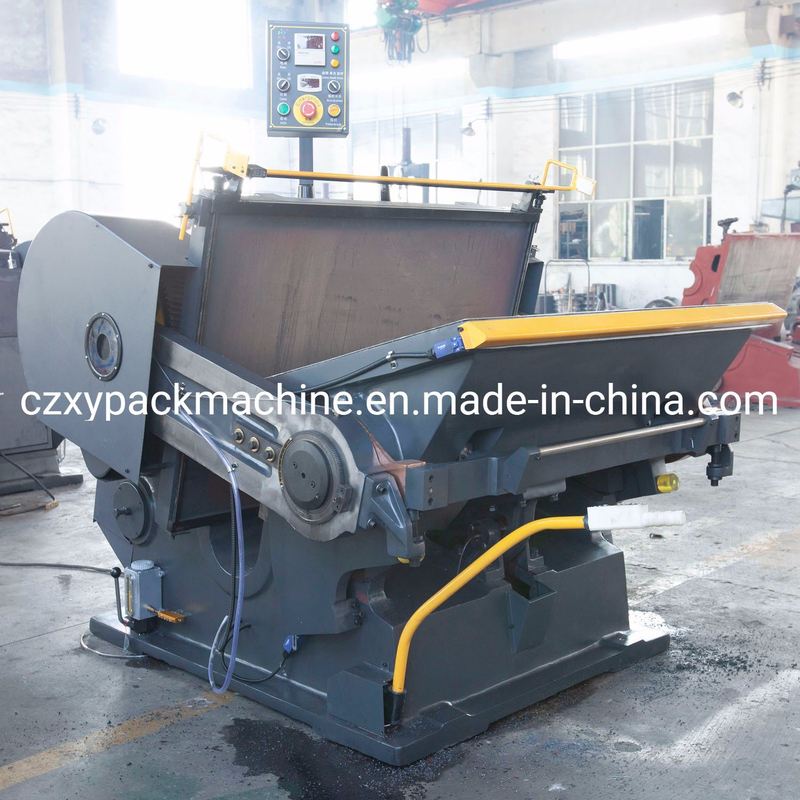

Machine details:

Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting


Box Producing Process:

Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting

Customer Visit:

Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting

Related Products:

Ml 1200 Die Cutting Creasing Machine for Corrugated Board Cutting

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
