Ml 750 Hot Stamping Creasing Manual Die Cutting Machine

Quantity:
  • Die Cutting and Creasing Machine
  • Platen
  • Horizontal
  • Steel Plate
  • Non-Computerized
  • Semi-Automatic
  • Paper Packaging Materials
  • 750X520mm
  • 665X460mm
  • 1-500mm
  • 2 Groups
  • 1mm
  • 22 Times/Min
  • 150t
  • 1-170 Degree
  • 1800kg
  • Plastic Film, Container
  • 750
  • CZXY
  • Hebei, China
  • 8441809000
  • 15sets/Month
  • Available | Customized Request

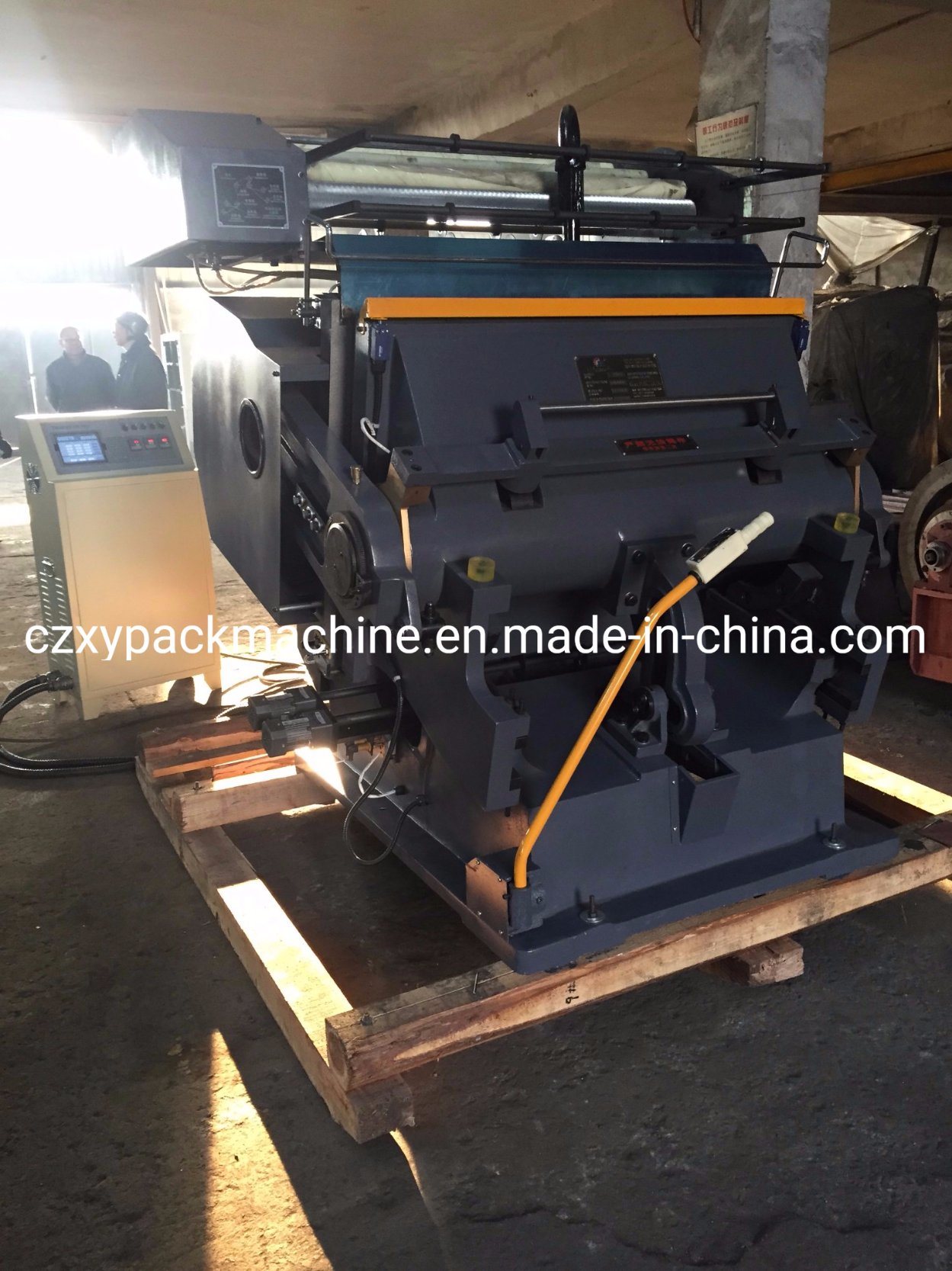

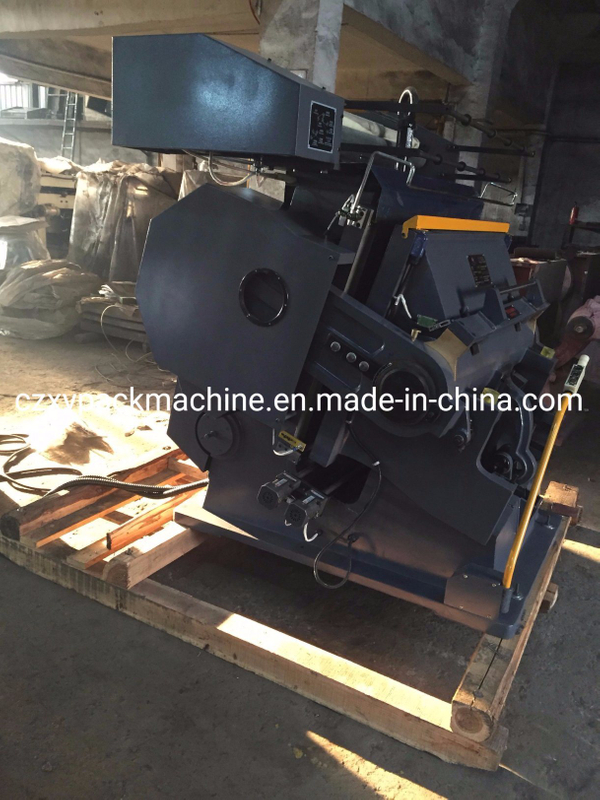

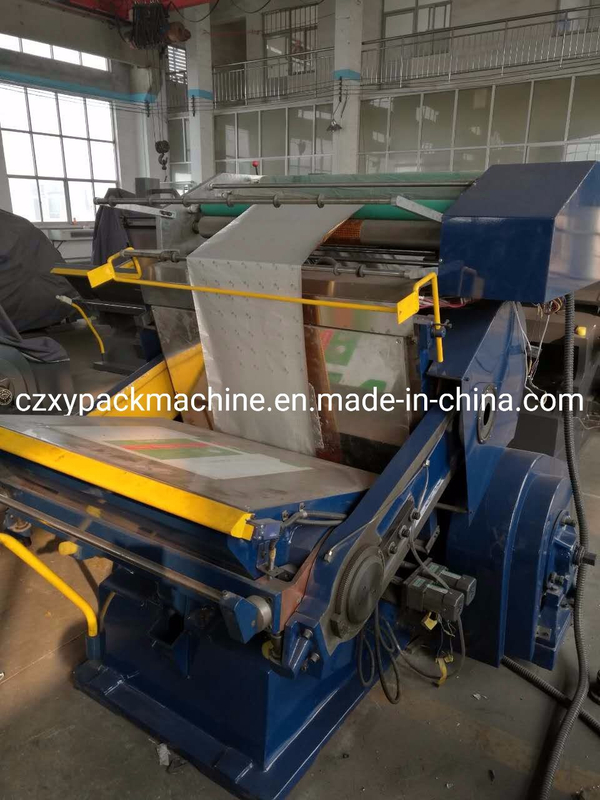

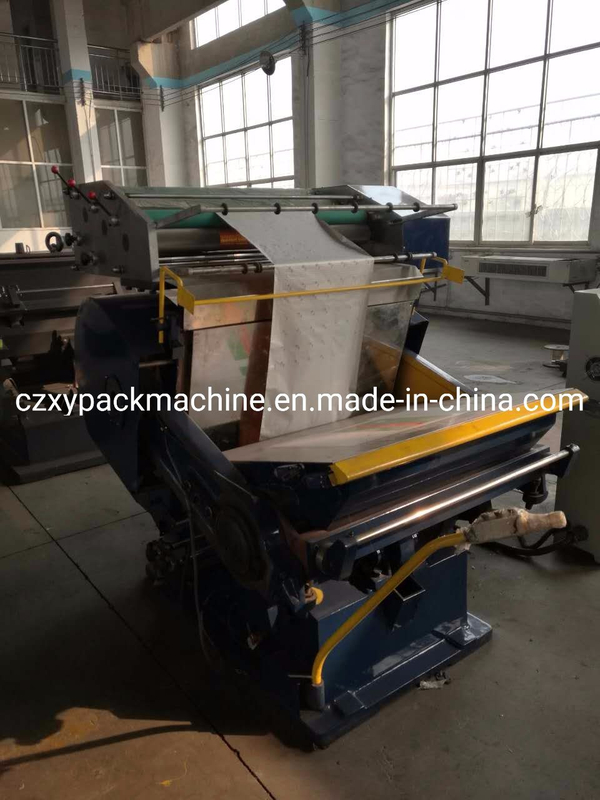

ML 750 hot stamping creasing manual die cutting machine

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine
Ml 750 Hot Stamping Creasing Manual Die Cutting Machine

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine
Ml 750 Hot Stamping Creasing Manual Die Cutting Machine
  • Feature:
The hot stamping process is a special printing process that does not use ink. The so-called hot stamping refers to a process in which an electrochemical aluminum foil is stamped onto a surface of a substrate under a certain temperature and pressure. The hot stamping machine is a device that completes the hot stamping process.
The hot stamping machine is also called flat stamping hot stamping machine, and various customized hot stamping (Corrosion plates) patterns are heated and electrically transferred to the surface of the substrate by heating the hot plate, and the graphic of the aluminum foil hot stamping shows strong metallic luster which is dazzling and won't fade. It is mainly suitable for stamping on paper, cardboard, leather, plastic sheet, cork and other substrates.
  • Structural features:
1. The casting is made of HT250 gray cast iron, which is then annealed so that the casting (including the fuselage, press frame, etc.) is not easily deformed or broken.
2.Spindle adopts tetraphosphorus chrome steel, after quenching and tempering to improve the strength, rigidity and hardness of the spindle to achieve the effect of not easily deforming.
3. The main parts of the gears are tetraphosphorus chromium steel, after quenching and tempering.
4.The use of nodular cast iron heat plate, tensile strength and yield large. (Plate/Imitation honeycomb panel optional)
5. The machine's rail lining plate is made of 38 chrome-molybdenum aluminum. After nitriding treatment, the hardness is strengthened and it is not easy to wear. It can keep the pressure of the machine up and down for a long time to maintain balance and stability.
6.Single-plate electromagnetic clutch is sensitive and reliable.
7.Three functions of single pressure, continuous pressure cut and open delay, the delay range can be adjusted freely.
8.The transmission connecting rod (pull arm) adopts nodular cast iron, which has strong strength and toughness and strong tensile strength.
9.The key parts of the bearing use Harbin bearing.
10.Centralized refueling and manual refueling (optional) lubrication system can better ensure the smooth flow of the oil circuit and facilitate the maintenance of the lubrication system.
11.The bushing of the transmission section adopts a composite copper bushing (ensures lubrication) and the connecting rod is a pure copper bushing. Make the machine more precise.
12.The creasing plate is reinforced with manganese steel.
13.The electrical appliance adopt LG and Siemens.
14.Hand-triangular limit switch, emergency stop switch, hand push rod limit switch, three safety devices to ensure safety.
15.Can be installed inside and outside movable frame, loading (standard is an external movable frame).

  • Service:
Machine warranty for one year, life-long maintenance. During the warranty period, the machine fails to solve the problem that the customer cannot solve. We will give the post-sales plan within 24 hours (excluding the damage of the wearing parts). The machine is qualified in the factory debugging, and the user will not have major problems in the case of proper maintenance. Here, it is hoped that the majority of users will try their best to communicate with the factory through convenient communication methods to solve the problem! !

Equipment in assembly

Control cabinet

Open in plane

copy Honeycomb

,Technical Parameters:
Model:TYMB750
The maximum substrate area:750×520mm
Maximum hot stamp area:665×460mm
Jump range:1-500mm
Foil feeding length:1-500mm
Foil resolution:1mm
Foil group number:2 groups
Jump times:1-99 times
Working speed:25±2times/min
Working pressure:150T
Temperature adjustable range:1-170ºC
Electric total power:5kw
Motor power:2.2kw-6 degree 380V
Machine net weight:1800kg
Machine gross weight:2000kg
Dimensions:1610×1360×1750mm


Model:TYMB930
The maximum substrate area:930×670mm
Maximum hot stamp area:920×665mm
Jump range:1-655mm
Foil feeding length:1-665mm
Foil resolution:1mm
Foil group number:3 groups
Jump times:1-99 times


Working speed:22±2times/min
Working pressure:170T
Temperature adjustable range:1-170ºC
Electric total power:12kw
Motor power:4kw-4 degree 380V
Machine net weight:3500kg
Machine gross weight:3700kg
Dimensions:1780×1860×1900mm


Model:TYMB1100
The maximum substrate area:1100×800mm
Maximum hot stamp area:1000×755mm
Jump range:1-750mm
Foil feeding length:1-750mm
Foil resolution:1mm
Foil group number:3 groups
Jump times:1-99 times


Working speed:20±2times/min
Working pressure:220T
Temperature adjustable range:1-170ºC
Electric total power:13.8kw
Motor power:4kw-4 degree 380V
Machine net weight:5000kg
Machine gross weight:5200kg
Dimensions:1960×2030×2060mm

Machine details:

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine



Box Producing Process:

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine

Customer Visit:

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine

Related Products:

Ml 750 Hot Stamping Creasing Manual Die Cutting Machine

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
