Double servo double head colorful box stitching machine with conveyor
CZXY-1600 Dual piece semi-automatic double servo carton stapler
Main function and parts:
- Single ,double, strengthen are all available.
- One machine can stitch single, double, irregular box.
- Change size quickly in a minute, easy operation , no training is necessary.
- The feeding part can count automatically, and output automatically in a certain, easy for binding.
- Back part counts automatically, the finished product can be sent to end of conveyor according to the setting quantity
- Suitable for 3/5layer color box, stitching whatever the carton has cover or not.
- Stitching distance can be set up in touch screen directly, easy operation.
- Auto adjust stitch distance by computer.
- Imported multi-servo system control, stitch distance more longer, stable, and accurate.
- Omron PLC control system
- The nailhead of stapler is produced in Guangdong, longer warranty period.
- The blade of automatic stapler die block is made of Germany tungsten steel.(wearable)
- The switch of control cabinet are all produced by Taiwan Shilin.
- The switch and button are all produced by Taiwan Tiande
- All pneumatic parts are produced by Taiwan brand.
| Model | 1600mm(2100) | 1800mm |
| Stitch distance | 30-120mm |
| speed | 450stitch/min |
| Max paper size(length +width)*2 | 3200mm | 3600mm |
| Min paper size(length +width)*2 | 1060mm |
| Max carton box length | 1450mm |
| Min carton box length | 350mm |
| Max carton box width | 800mm |
| Min carton box width | 180mm |
| Min carton box height | 400mm |
| Motor power | 10kw | 11kw |
| Length | 4000mm |
| Width | 3400mm | 4000mm |

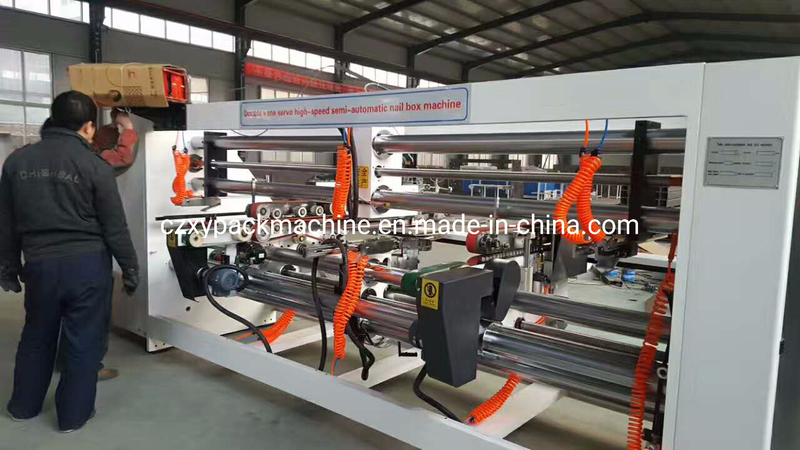

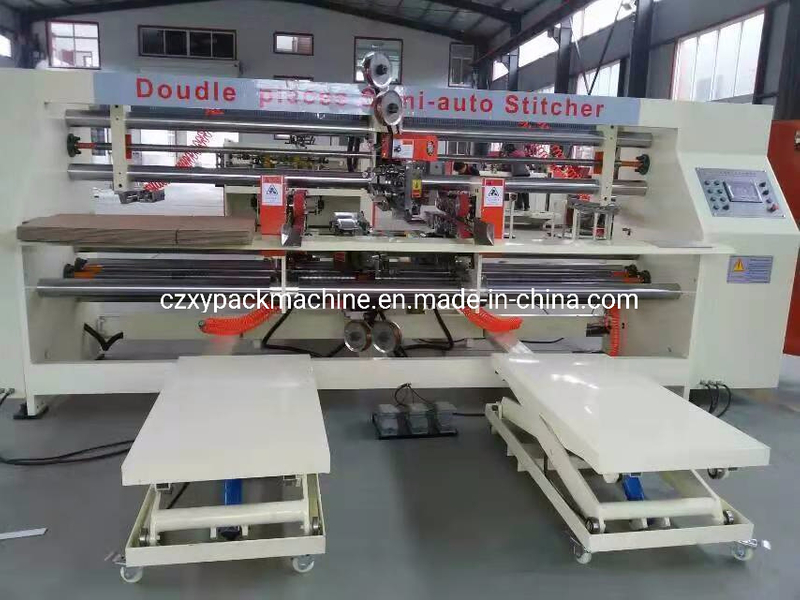

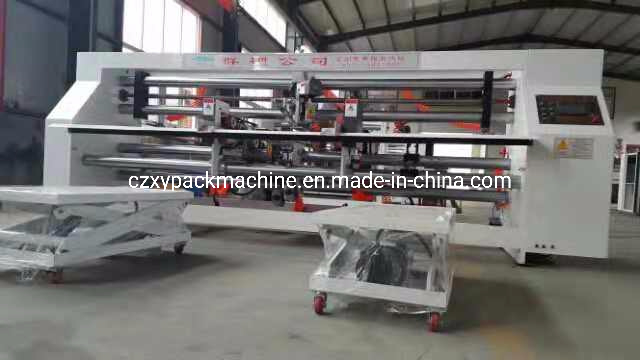

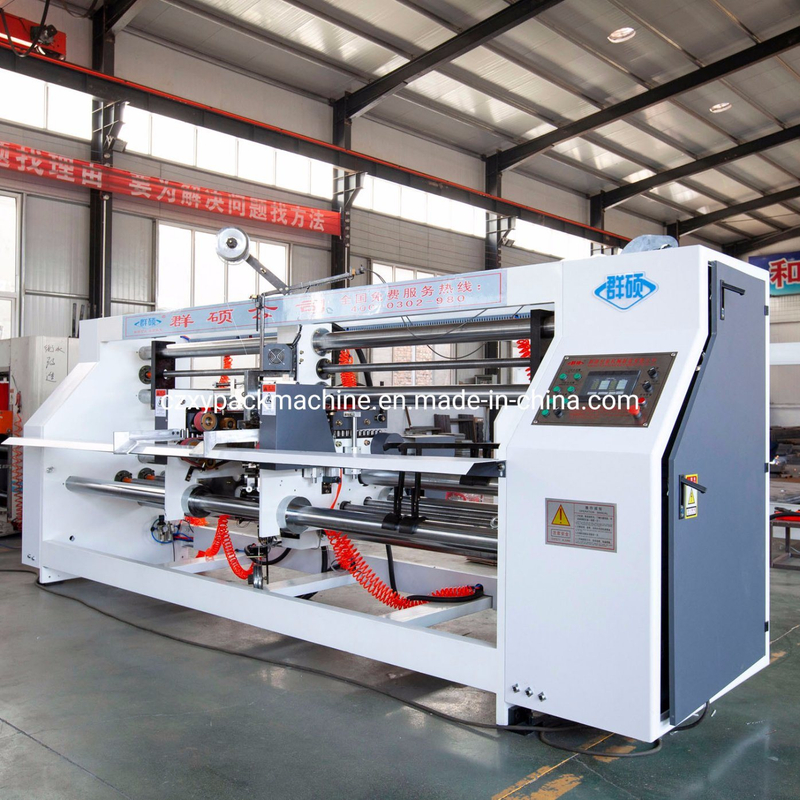

Machine details:
Box Producing Process:
Customer Visit:
