China Corrugated Carton Box Stapling Machine

  • 2000kg

  • Single Piece Feeding

  • 5.0kw

  • 220V

  • Can Be Adjusted Automatically

  • 3/5/7lay

  • CZXY-2000

  • 2460mm

  • Omron

  • Taiwan Shilin

  • All Availabe

  • Plastic Film, Container

  • 2000MM

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

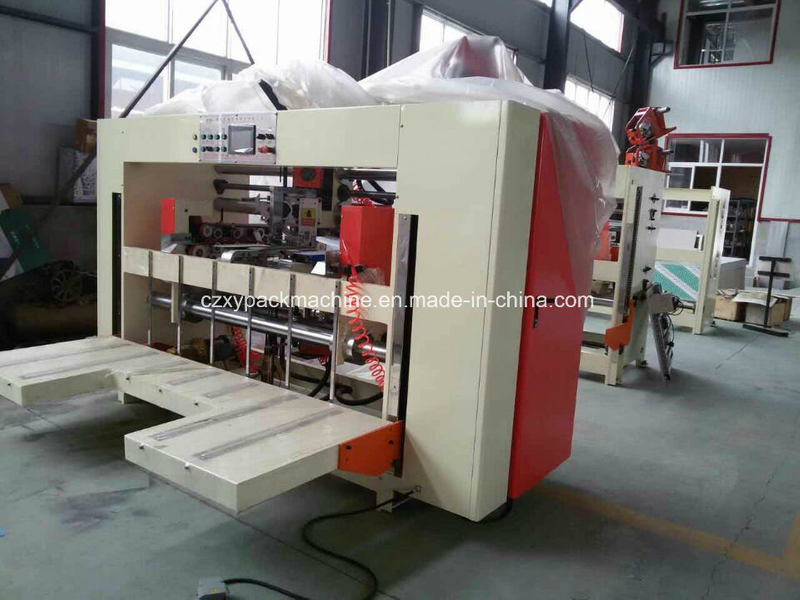

China corrugated carton box stapling machine

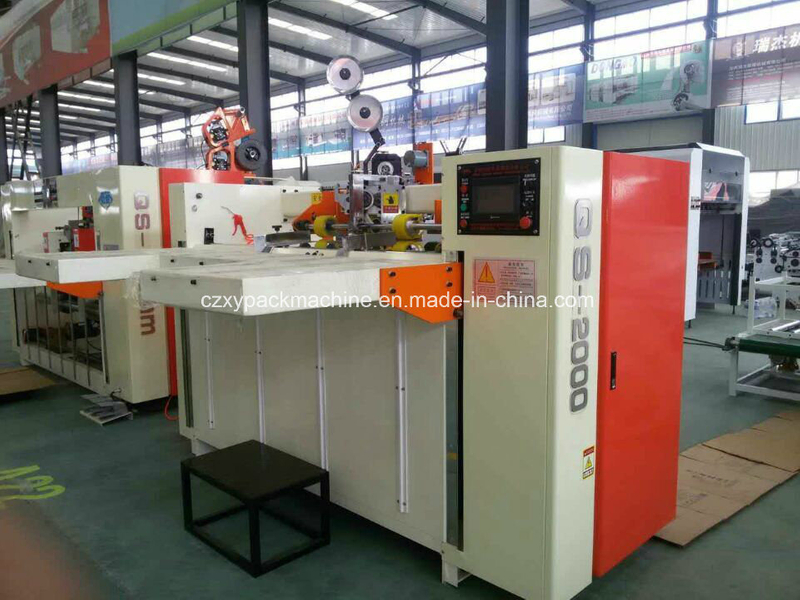

China Corrugated Carton Box Stapling Machine

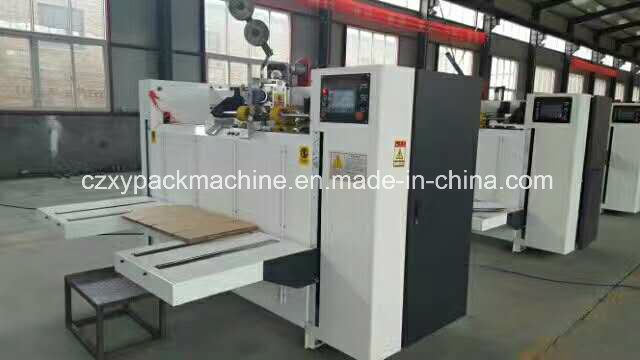

China Corrugated Carton Box Stapling Machine

Feature and characteristic:

1. Improted double servo drive, precision is accurate, can reduce mechanical transmission , thus reduce the machinery malfunction effectively.

2. The stapler adopt touch screen operation, parameter(stitching pitch,number of stitching, stitching kind, back shield)changes conveniently and fast.

3. The whole system of stapler is Omron PLC control system.

4. The switch of control cabinet are all produced by Taiwan Shilin.

5. The blade of automatic stapler die block is made of Germany tungsten steel.(wearable)

6. The nailhead of stapler are all made of special steel ,processed by computer precisely.

7. The switch and button are all produced by Taiwan Tiande

Use and Characteristics:

1. Change size quickly in a minute.

2. Easy operation , no training is necessary.

3. Single ,double, strengthen are all available.

4. The feeding part can count automatically, and output automatically in a certain, easy for binding.

5. Touch screen operate

6. Adopt servo system

7. Stitching distance :100mm

8. Stitching whatever the carton has cover or not.

9. Stitching distance can be set up in touch screen directly.

10. Auto adjust paperboard thickness.

Max size (L+W)*2 2460mm
Min size(L+W)*2 606mm
Max size (L+W)*2 1515mm
Min size(L+W)*2 300mm
Height of feeder 900mm
Motor Power 6kw
Length 4500mm
Width 2100mm
Weight 2000kg
Speed 450staples
Stitching Pitch 30-70mm
Number of stitching 1-99stitches

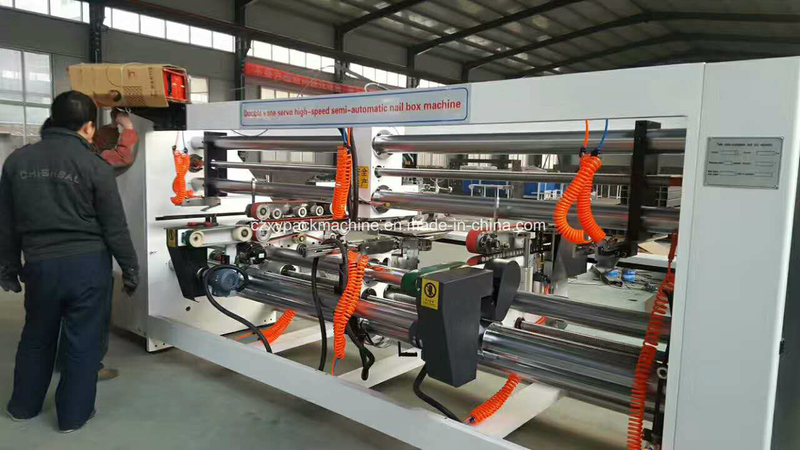

Factory Manufacture Picture:

China Corrugated Carton Box Stapling Machine
Customer Visit:
China Corrugated Carton Box Stapling Machine

Related Products:
China Corrugated Carton Box Stapling Machine

Delivery Pictures:
China Corrugated Carton Box Stapling Machine

Welcome to visit us, we'd glad to be good friends with you!
