High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine

Quantity:
Inquire Add to Basket

  • 2000kg

  • Double Piece Feeding

  • 450stitch/Min

  • 220V

  • 30-120mm

  • 3/5/7lay

  • CZXY-2500

  • 4000mm

  • Omron

  • Taiwan Shilin

  • All Availabe

  • Plastic Film, Container

  • 2500MM

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

High speed semi-auto boxes stiching machine/ carton box making machine

High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine

High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine


Feature and characteristic:
  1. It can nail single nail, double nail, strengthen nail ,completed in one-time, and be suitable for different kinds of customer requirements os nails.
  2. It can be changed size quickly in one minute, can be operated easily and not necessary for experience.
  3. It is man-machine interface control for convenient operatin.
  4. Back part automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99).
  5. Semi-finished products nailed to the finished products and displayed only need two operators.This can be operated simply and reduce wages.
Model and parameters SDJ-2500 SDL-3000 SDJ-3500
Max paper size(A+B)*2 4000mm 4800mm 6000mm
Min paper size(A+B)*2 1060mm 1060mm 1060mm
Max carton box length A 2850mm 2850mm 2850mm
Min carton box length A 350mm 350mm 350mm
Max carton box width B 100mm 1200mm 1500mm
Min carton box width B 120mm 120mm 120mm
Max carton box height(C+D+C) 2500mm 2500mm 2500mm
Min carton box height(C+D+C) 400mm 400mm 400mm
Max shake cover sizeC 560mm 560mm 560mm
Min shake cover sizeC 50mm 50mm 50mm
Max height 2000mm 2000mm 2000mm
Min height 150mm 150mm 150mm
Max width of tongue 45mm 45mm 45mm
Stitch distance 30-120mm 30-120mm 30-120mm
Pin number 1-99 1-99 1-99
Nailing speed 500/min 500/min 500/min
Machine weight 2.5T 3T 3.5T

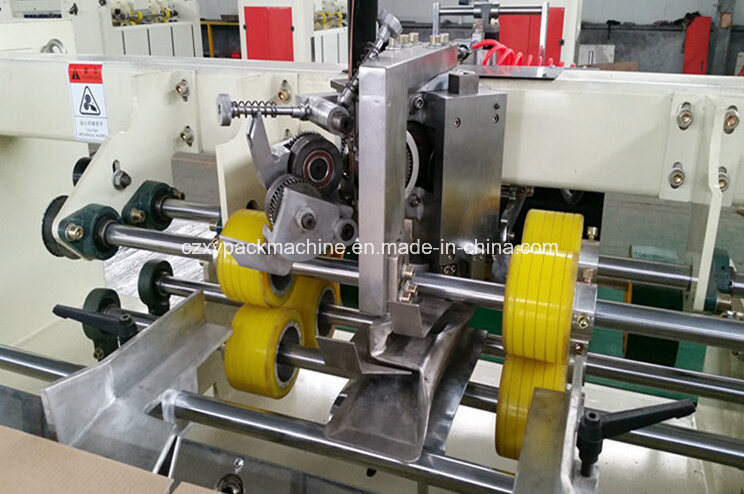

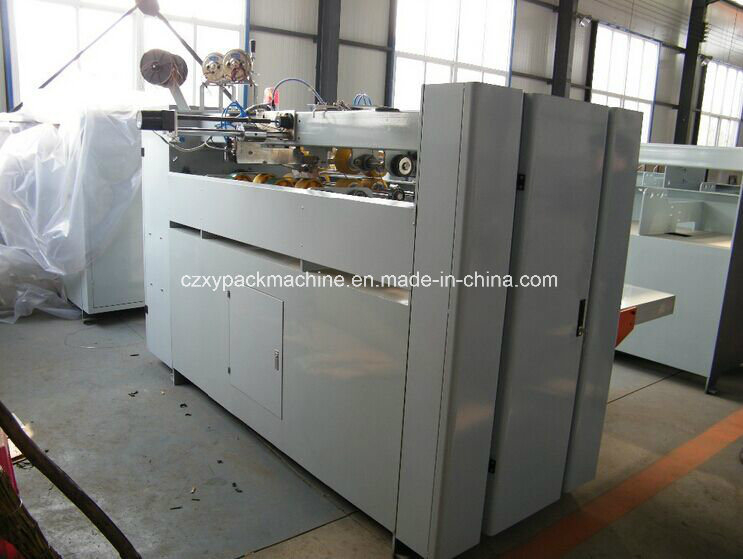

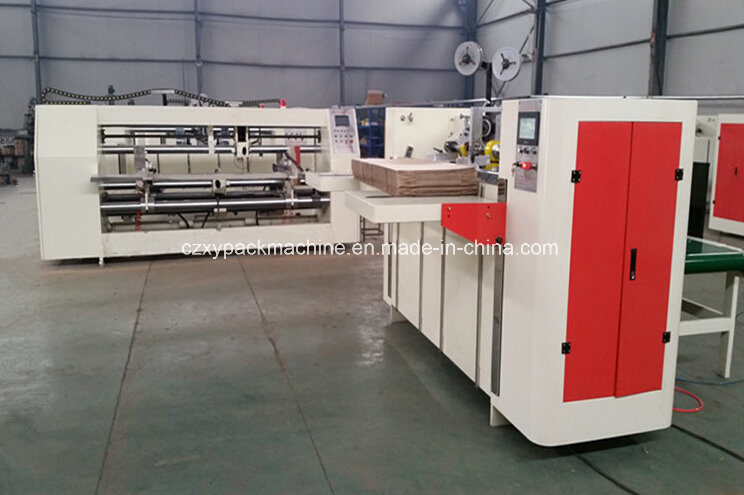

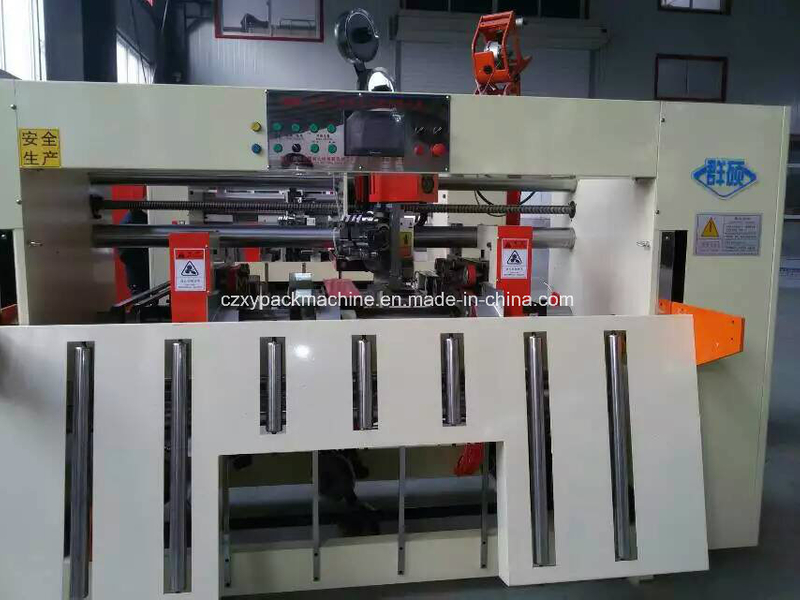

Factory Manufacture Picture:

High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine
Customer Visit:
High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine

Related Products:
High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine

Delivery Pictures:
High Speed Semi-Auto Boxes Stiching Machine/ Carton Box Making Machine

Welcome to visit us, we'd glad to be good friends with you!
