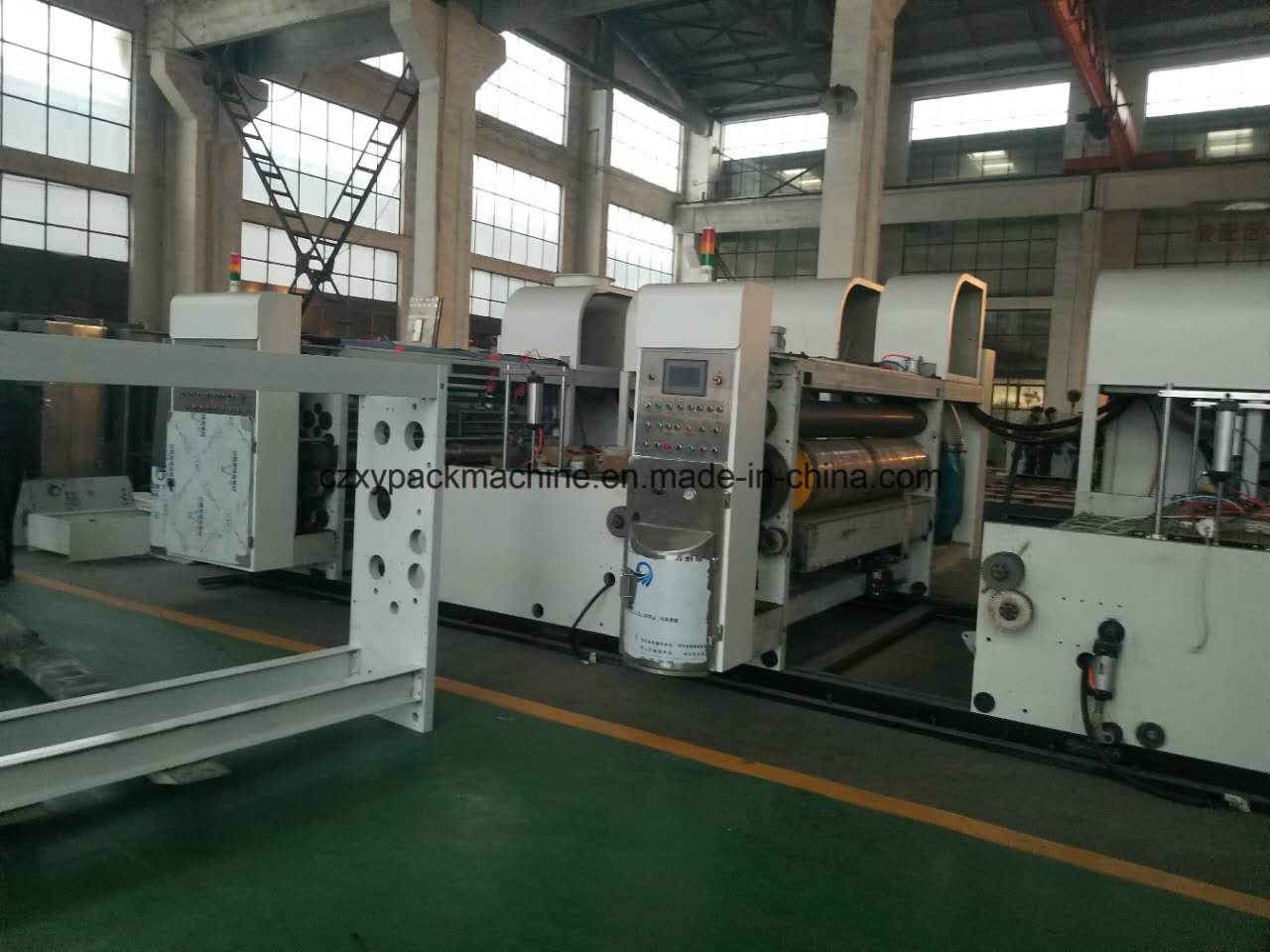

Vacuum Transfer High Definition Five Color Printing Slotting Die Cutting Machine

  • New

  • CE

  • Automatic

  • Paper

  • Thick Paper

  • Steam Heating

  • LGF-SHM1200*2600

  • 880mm×2000mm

  • 320mm×650mm

  • 250pieces/Min

  • ±1mm

  • ±1mm

  • ±1mm

  • Imported Famous Brand

  • Plastic Film Wrapping Outside, Container

  • 900× 2200

  • CZXY

  • Cangzhou City, Hebei Province

  • 8441809000

  • 1-3sets/Month

  • Available | Customized Request

Product Description

High precision 5color flexo printing die-cutting machine

Functional configuration and technical parameters:

Functions and characteristics

Vacuum Transfer High Definition Five Color Printing Slotting Die Cutting Machine


1.The whole line is designed and made for high quality,high speed,high efficiency,high stability and high safety,convenient for quick order update and operation.

2.Servo control for the whole machine to reduce transmissioerror and ensure high quality printing.

3.Made with high quality materials and parts.

4.Vacuum transfer system for all printers.

5.All electric,electronic and pneumatic components are of European standard.

6.The whole line is of computer-centralized contuol.

7.Optional equipment-U.V.Varnishing system.

8.Able to reach high Lpl precise printing reault.

9.Equipped with I.R curing system to dry the printing ink.

10.Short-time order update to improve production efficiency.

11.All units are fixed together,adopts vacuum transferring bevice pinting regester is serro controlled to achieve high resolution precise printing.


Name of parameter Unit Specification
LGF-SHM900*2200 LGF-SHM900*2600 LGF-SHM1200*2600
Design speed Piece/min 250(lead edge) 250(lead edge) 220(lead edge)
Max size of feeding paper mm 880*2000 880*2400 1180*2400
Min size of feeding paper mm 320*650 320*650 420*650
Skip feeding mm 1100*2000 1100*2400 1500*2400
Max printing area mm 800*1800 800*2200 1150*2400
Precision of color process(double/three/four/five color) mm 0.35 0.35 0.35
Thickness of standard printing mm 7.2 7.2 7.2
Min slotting space mm 240*80*240*80 240*80*240*80 240*90*240*90
Max slotting depth mm 250 250 320
Printing roller axle circle-oriented regulating degree 360°revolving 360°revolving 360°revolving
Printing roller axle-oriented regulating mm ±10 ±10 ±10
Total power(double/three/four/five color) Kw 20/25/30/35h 40/50/54/63 40/50/54/63

Paper feeding part:
Vacuum Transfer High Definition Five Color Printing Slotting Die Cutting Machine

The "light pressure" paper feeding part (patented product) can reduce the friction force between the paperboard and the table top by 60%, which protects the original strength of the cardboard, avoids pressing and sloughing, and combines with the pneumatic elastic paper feeding mechanism, which is favorable for the smooth input of the paperboard.

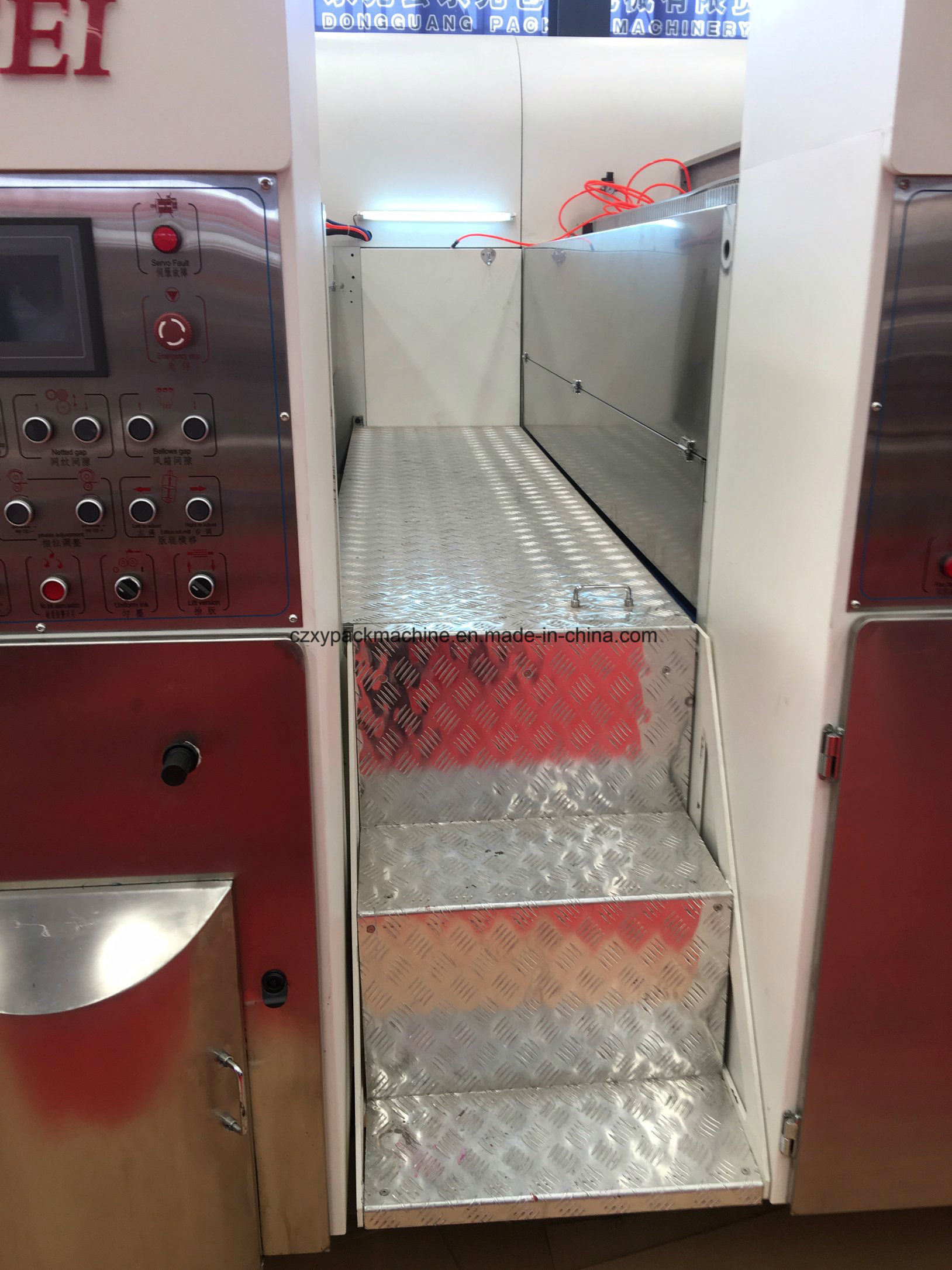

1.machine separation&assemble
*Electric control platform separation&assemble, continuous alarm between the moving, to ensure the safety of the operator. The transmission shaft is attached to the friction clutch to avoid wrong operation and damage the machine.
*Each platform is equipped with a sudden stop switch, which can stop the movement of the machine by internal control to ensure the safety of the personnel in the internal operation.
*Pneumatic chain device, the main engine can not start if some unit is not locked in place . The whole machine is locked to make the equipment run smoothly.
2.dust collecting system
*Equipped with our company's parallel parallel chip suction and dust removal mechanism, it has reliable and reliable guarantee for printing on large fields and high outlets, and at the same time, it can effectively reduce the times of downtime.
Printing part:

1.Printing roller
*The outside diameter is Ф393.6mm (with plate diameter Ф408mm).
*Dynamic and static balance correction, surface grinding and hard chromium plating, smooth operation.
*Ratchet fixed volume plate shaft, full plate, half plate plate (3*9mm), easy to install, fast.
*Loading and unloading printing plate, foot switch electric control is positive and reverse.
2.Transfer axis
*The clearance of press roller and bridge guide paper shaft adopts the control mode of self locking double stage worm gear box, and the gravity meter shows the numerical adjustment range of 0 - 10mm.
*The guide paper shaft is equipped with three fast transversal guide paper wheels, which can adjust the self locking function quickly.
*Dynamic and static balance correction, surface grinding and hard chromium plating, smooth operation.
3.anilox roll
* The outside diameter isФ213.7mm, the inner surface of the whole process, the physical properties of uniform.
* The surface of the steel pipe through special processing, by pressing, chrome plating, mesh rules, network wall smooth, the bottom is flat, large amount of ink, ink releasing in fast and easy cleaning.
* Dynamic balance correction.
*The control mode of self locking double stage worm gear box and the display value of gravity meter are adopted in the gap with the plate roll, and the adjustment range is 2 - 10mm.
* anilox roll arrangement according to customer requirements.
4.rubber roll
*The outside diameter isФ210mm.
*Steel tube surface wrapped corrosion resistant rubber, medium and high special grinding, good ink transfer effect.
* Dynamic balance correction.
*The control mode of self locking double stage worm gear box and gravity meter display value are adopted in the gap between the anilox roll and the adjustment range is±4mm.
5.Maijk closed type ink scraping system
*The innovative chamber fluid dynamics and duplex ink sealing design, the ink transport effect is good, and the ink can be saved more.
*Air pressure or cylinder adjustment locking, the scraper wear automatic compensation, so that the anilox roller and the scraper better fit, can get the best ink scraping effect.
*Sticky coating chamber "Tefulong" antiseptic and anti, so that the ink transfer and easy cleaning.
6.Ink circulation
*Equipped with inks alarm device, when a group of inks lack of ink, alarm and stop sending paper.
*Pneumatic two-way diaphragm pump for ink, ink release, so that the operation is fast, save ink and wash convenient.
*The ink filter can remove most of the impurities in the circulation system. Welding steel slot, corrosion resistant and easy to clean.
7.Phase adjustment mechanism
*The printing phase uses PLC control mode digital display and electric digital 360 degree adjustment (operation and shutdown can), and the phase adjustment precision can reach 0.1mm.
*The printing roll adopts the frequency converter to adjust the phase, the sectional type start and stop control, so that the fine tuning is accurate, and the time is saved when greatly adjusted.
*The horizontal position of the printing roll is digitally displayed by PLC control mode, and the adjustment distance is 10mm, and the precision can reach 0.1mm.
*In the process of working, if the machine needs to open the machine to wipe the plate, the machine can fit the machine, and the original position can be recovered.
Drying part1:
*The water-based ink on the printed surface is quickly dried by hot air or infrared, so as to avoid the appearance of ink drop and influence the effect of polishing.
*In emergency shutdown, it will not cause the fire accident, it is safe and reliable. It can also determine the drying range and save energy according to the needs.
Polishing part:
*The structure of the unit is the same as the printing section, and the water-based light oil or UV light oil can be selected to polish when the production.
*The unit can also be used as a printing unit and can be combined with polychromatic printing.
VI.Drying part2:
In addition to having the function of drying part 1, it can also add UV drying function. It can be used for two kinds of water-based varnish and UV varnish, so as to avoid tow phenomenon during die cutting.

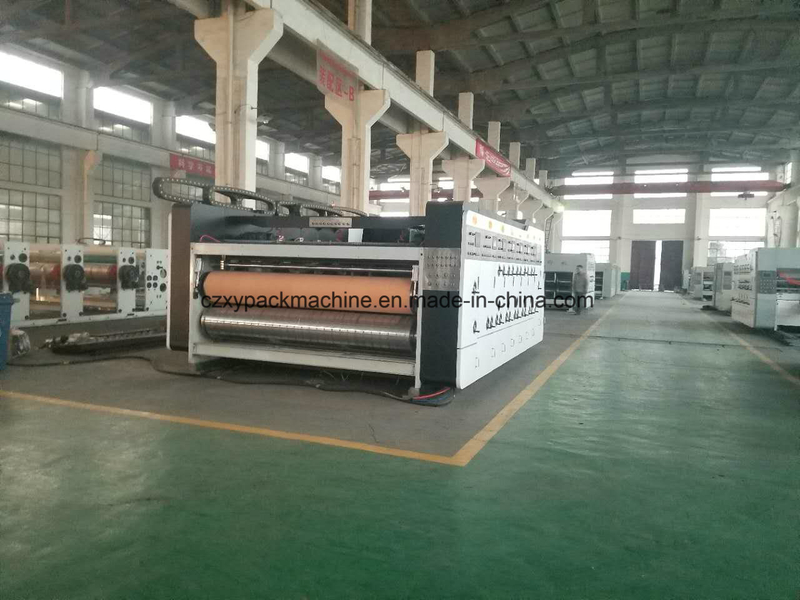

  1. Die cutting part:
  1. Youli rubber roller
*Youli roll with 389mm (including pad diameter 405mm), centrifugal casting alloy steel, grinding, hard chromium plating, static balance.
*There is a rubber pad with "Taiwan Chaonai", width of 250mm, the normal use of 8 million times, the mechanical move around 30mm, and with a radial differential device, the rubber pad wear average distribution, improve the service life of the rubber pad greatly.
*Youli roll with built-in differential automatic compensation device, the rubber pad and the Mold plate automatically keep the line speed and. To keep the size of each batch of products consistent, thus reducing the cost of production.
*The machine is equipped with Youli rubber modified device, can be repeatedly modified after use.
2.Mold plate roller
*The template roller and with 360mm (including cutter mold diameter 408mm), centrifugal casting alloy steel, grinding, hard chromium plating, static balance.
*Template fixed screw M10, axial spacing 100mm, radial (18 equal pitch angle 20 degrees).
*Knife mold wood thickness: 16mm (three layers of cardboard) 13mm (five layers of cardboard).
*The mold roll is attached with the lateral adjustment device to stretch 10mm, and the PLC control mode is used for digital display, and its adjustment precision is 0.1mm.
*Mold roll and Youli rubber roll in the un-die cutting state through the cylinder eccentric device automatically disengaged, can reduce the load and prolong the life of Youli rubber and knife mold.
3. Free plate die cutting mold
In addition to having the main function of the standard configuration die cutting, there are four sets of steel knife mold, which are used for common industrial box slotting, corner cutting and side slitting use. Manual four knife synchronous adjustment (box height synchronous adjustment),manual traverse.
VIII.Stacking part
1.Paper receiving arm
*Manual or automatic operation can be optional.
*The transmission belt of the paper arm is used to adjust the tightness of the belt separately, and it is not restricted by the length of the belt.
2. Bed lift
*Strong chain drive.
*The stack height of 1600 mm.
*The bed platform lift motor is attached to the brake function. The bed can keep the fixed position and will not slide.
*Add the weight iron device to make the bed lift in the control, to ensure the safety of the workers.
*The plane crepe climbing belt to prevent the paperboard from falling.
3.Paper baffle
*The air pressure action paper baffle, when the cardboard is stacked to the predetermined height, the paper plate is automatically extended to hold the cardboard.
*The position of the rear baffle is adjusted manually.
4.Control system
*the electric appliance is implemented by PLC programming control.
*independent operation electric box.
5.Vibrating &stripping function
IX. Transmission gear

XI.Motor list
Name Specifications Quantity
1.Feeding part
1) main motor(Hebei Hengshui Yongshun), 15KW (variable frequency speed regulation), 1set
2) platform assemble(Cangzhou Yongfeng), 1.5KW 1/71 gear deceleration, 1set
3) left and right baffle (Wu Qiaozhongyuan) 0.18KW RV-30, 2sets,
4) adsorption fan (Hebei Baoding) 7.5KW, 1set
5) dedusting fan (Shanghai Xin Zhi) 1.5KW, 1set
2. Printing Department
1) phase adjustment (Taiwan Taibang) 0.2KW RV-30 (variable frequency speed regulation) 1 sets / color
2) the anliox roller operation (Nantong DORT) 0.4KW 1/30, 1 gear sets / color
3) transverse stretching (Wu Qiaozhongyuan) 0.18KW RV-50 1/80, 1 sets / color
3. die cutting section
1) phase adjustment (Wu Qiaozhongyuan) 0.18KW RV-30 1
2) left and right stretching (Wu Qiaozhongyuan) 0.18KW RV-50 1/80 1 sets
3) rubber pad repair (Shangqiu rui'ao) 0.37KW RV-40-50 1/900 1
4. stack section
1) 1 sets of conveyer belt (Hebei Hengshui Yongshun) 3.0KW (electromagnetic speed regulation)
2) bed platform lifting (Hebei Hengshui Yongshun) 2.2KW RV-130 1/80 1
XII. Other instructions
Name brand number
1. bearing grade, Japanese NSK, plate roll, anolix roller and rubber shaft
The rest of Harbin, Wafangdian City and Luoyang
2. touch screen MCGS all
3.PLC Taiwan Taida all
4. frequency converter Shanghai Zhong Chen all
5. contactor, thermal relay Germany SIEMENS all
6. button switch, German SIEMENS all
7. intermediate relay, OMRON, Japan all
8. encoder Japan Koyo all
9. proximity switch Zhejiang all
10. Solenoid valve AirTAC all
11. pneumatic diaphragm pump Fujian Fuding all
12. cylinder Delixi
13. Yoiuli rubber pad Taiwan Chaonai

cardboard finished picture

Vacuum Transfer High Definition Five Color Printing Slotting Die Cutting Machine
