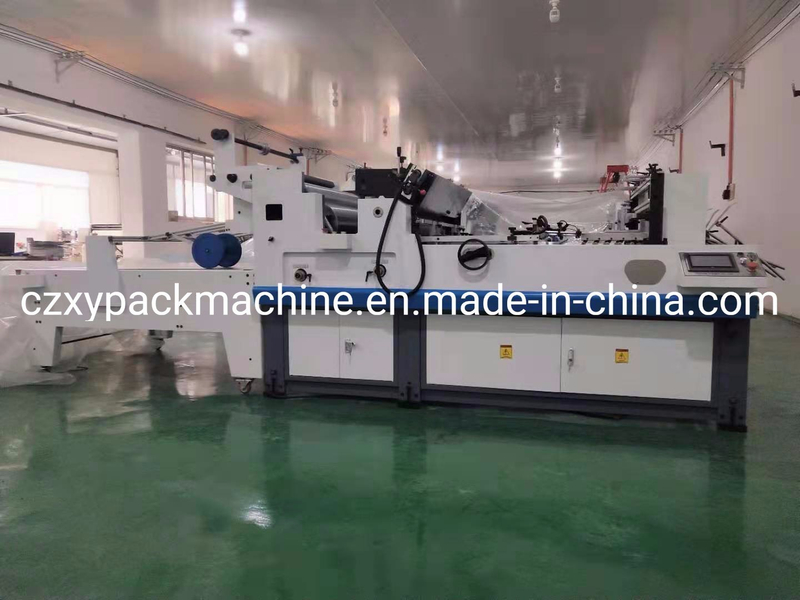

TC-1060 Double way feeding Automatic Window Patching machine
Specification:
Model
TC-1060 (Double way feeding)
Max.Paper Size(mm)
480×630
Min.Paper Size(mm)
140*140
Max. Film Size(mm)
390×380
Min.Film Size(mm)
40×60
Film Thickness(mm)
0.05-0.25
Max.Working Speed
15000s/h
Cardboard
200-500g/m2
Corrugated Paper
≤3.0mm
Power
380V 50HZ
Total Weight
2700kg
Film roll allows maximum diameter
φ500mm
Core diameter
φ76mm
Total power supply
three-phase four-wire system 380V 50Hz
Control power supply:
single phase 220V AC 24V DC
Installed capacity
10.5KW
Overall Dimensions(mm)
5000*1960*1750
(When the roller pull out)
5000*3200*1750 (Note: 3200mm is the width dimension required to remove the rubberizing roller when cleaning the surface of the rubberizing roller.
note: Whether the maximum working speed can be achieved depends on the type of window material, the thickness of the window material, the degree of warpage of the window material, the complexity of the window paper, the precision requirements of the window paper, and the operator. The level of expertise and proficiency.
General Introduction:
TC-1060 Window Patching Machine is widely used in the film patching and reinforcement to the package with or without the window of mobile phone box, liquor box, gift box, napkin box, cosmetic box, toy box, milk case and cards. The cardboard is 200-500g/m2 and also can attatched with the sticker punching, die cutting and creasing etc. for the special functions(Note: Choosable for the special functions). It can be used for the function of the paper gluing, film patching, film cutting , creasing and clearing function.
Technical Specification and configuration
The machine adopt the low voltage control with the independent transformer (The machine take it itself) which make sure the machine parts run stable and reliable.
The machine adopt Programmable Logic Controller and the Human-Machine Interface.
Input the multifunctional program, program and transform for the additional functions, checking is very convenient.
Paper feeding adopt servo system which achieving the high speed, inching paper feeding stable and accurate .
The low voltage components adopt the OMRON and the SCHNEIDER brand.
Programmable Logic Controller , Frequency Converter, Sensor and Coding Unit adopt the Taiwan product (high speed pulse) ensure the machinery working performance high quality.
Main motor and the servo motor adopt the famous brand-DongYuan
Human-Machine Interface adopt the HITECH brand-DONGYUAN.
The feeding belts and the chains adopt the famous brand, stable and durable, provide the quality guarantee.
The bearing adopt the Japan NSK and the famous brand in domestic.
The materials contact to the paper adopt the non-toxic products, accord with the healthy safety standard.
The gluing roller motor adopt the XIAMAN JOINT VENTURE products, frequency converter single control.
Air suction operation platform adopt imported independent control lift to achieve non-misprint,plenum punched belts with no adhesive.
The whole frame adopt the whole design structure, when the machine is in the running operation, especially on the high speed running, will not appear the resonance, deformation, shaking situation.
Ring Cone Variator adopt the famous brand domestic, the length of the film can be adjustable, stable performance, precision accurate. (Servo film giving can be choosable, convenient for operation)
The whole machine adopt the unique humanized design. Programmable Logic Controller, Human-Machine Interface Photoelectric tracking, central control safety alarm, data record , realizing the automatic running process of the paper feeding, conveying gluing film patching, film cutting , finishing.
Features by parts:

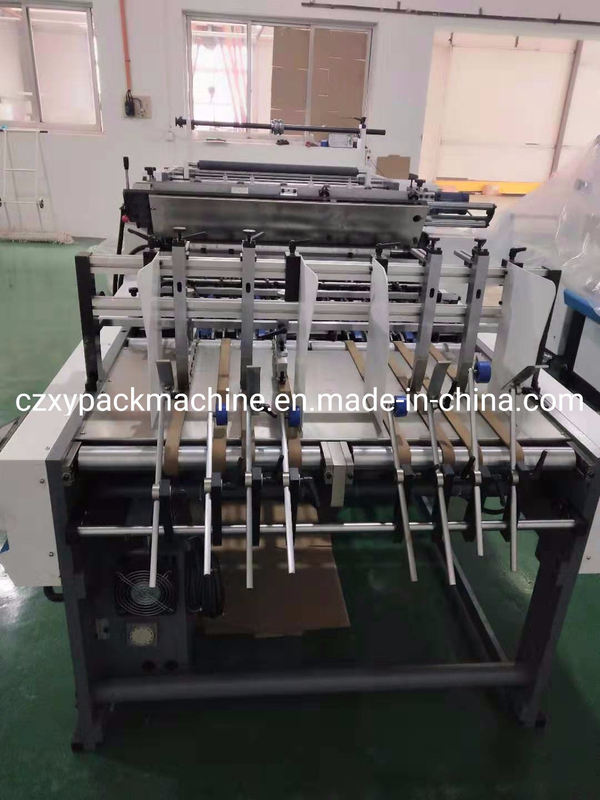

Paper Feeding Part:
Adopting the independent servo system control, realizing the inching and the high speed stable working state.
Conveying Part
Conveying paper steady by gluing wheel, Regulation push position, no creasing no scratch.
Gluing Part
Adopting the independent reducer motor, frequency converter and the main motor synchronous realize stopping machine ,but non-stop gluing, the gluing volume can be adjustable
Adopting the Light roller, reducing the running expense, the surface is the stainless material with the overlapping curve, the plate positioning is accurate and convenient, left and right and the 360° can be adjustable.
Filming part: Adopting the principle of wind source, the upper and lower gaps of the roller are adjustable, and it works with the wind chamber. It is easy to achieve thin and thick paper (with independent turbine device).
E) Film feeding section: controlled by servo motor. Each roller film is combined and conveyed, no scratches on the film, convenient size adjustment, and accurate film breaking.

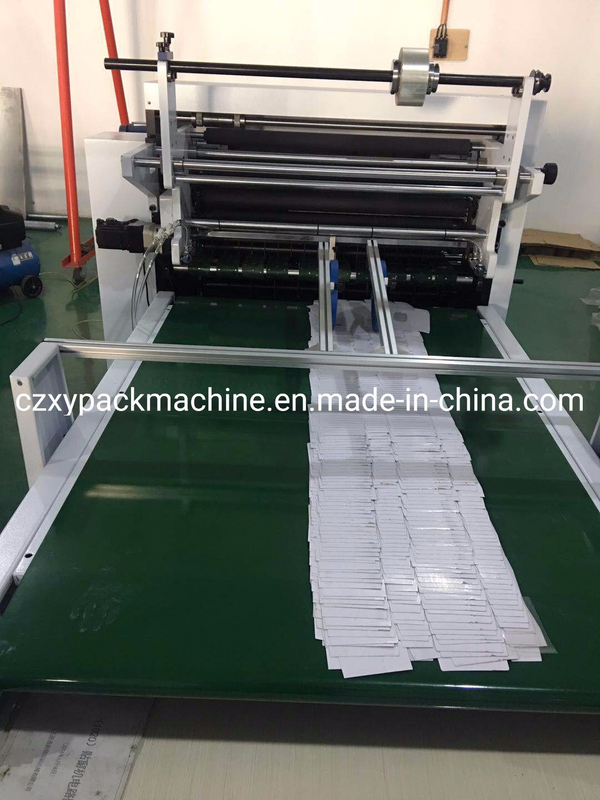

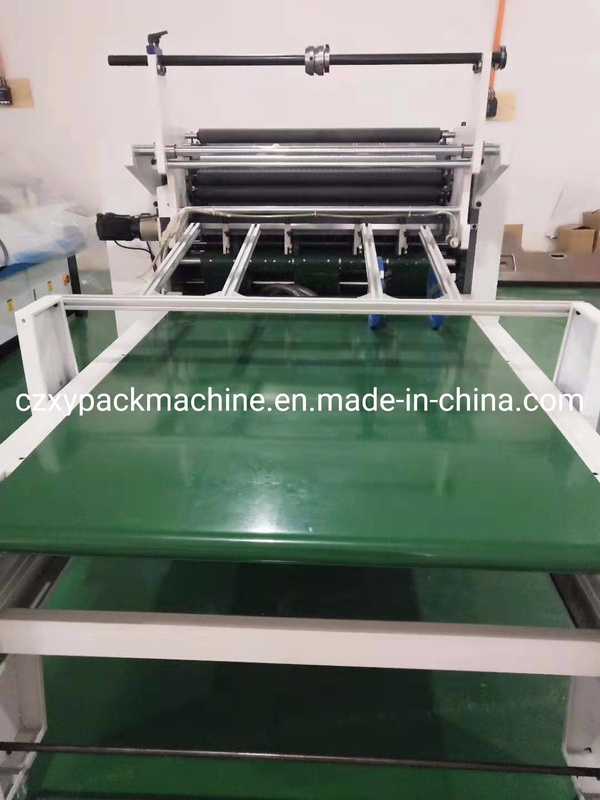

Paper Delivery parts
The patching products conveying to the paper delivery plate,finish the paper accumulation and collectionPaper delivery parts can be adjust separated.
Box Producing Process:
Customer Visit:
Related Products:
Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever! Sara Qiu Website: http://czxypackmachine.en.made-in-china.com
Fax/tel:0317-7805687
