TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting

Quantity:
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
  • Color Box Making

  • 5000PCS/H

  • 1300/1500/1600

  • Manual Feeding

  • Touch-Screen/PLC/Servo Motor Control System

  • 1300X1200mm

  • 1.5mm

  • 10kw

  • Delta

  • Automatic Gluing

  • Standard Plastic Packing for Abroad

  • 4.5ton

  • CZXY

  • Hebei, China

  • 8441809000

  • 10sets/Month

  • Available | Customized Request

TMJ-1500HII high platform semi-automatic flute laminator with automatic lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting


Major feature:
Functions and features:

1.The top paper can pile up the height of 1.5m once time ,it makes delivery more easier and efficient.

2.Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

3.The machine operation is stable,surface paper with corrugated paper joint very Accurate.The corrugated paper never pull ahead,surface paper's location is easy adjust.

4.Machine uses touch-screen / PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm.

5.Automatic gluing,and the giue can be used circulatory,avoid glue waste.

6.Roller design scientifically,avoid glue fly out when the speed is high.

7.Pressure rollers adopt unilateral adjustment,convenient and fast.

8.Rocker controls wash roller's fluctuation,easy cleaning.

9.Counter designs scientifically,easy recording the amount you have been worked.


Technological parameter:
Model TMJ-1300H-II TMJ-1500H-II TMJ-1600H-II
Max. size 1300mmX1300mm 1500mmX1300mm 1600mmX1300mm
Min size. 360mmX360mm 360mmX360mm 360mmX360mm
Economic speed 0-100 piece/min 0-100 piece/min 0-100 piece/min
Precision ±1mm ±1mm ±1mm
Power 9.5kw 9.5kw 9.5kw
Size 8.8m x 1.95m x 1.7m 8.8m x 2.15m x 1.7m 8.8m x 2.25m x 1.7m
Weight About 4 T About 4.5T About 4.5T

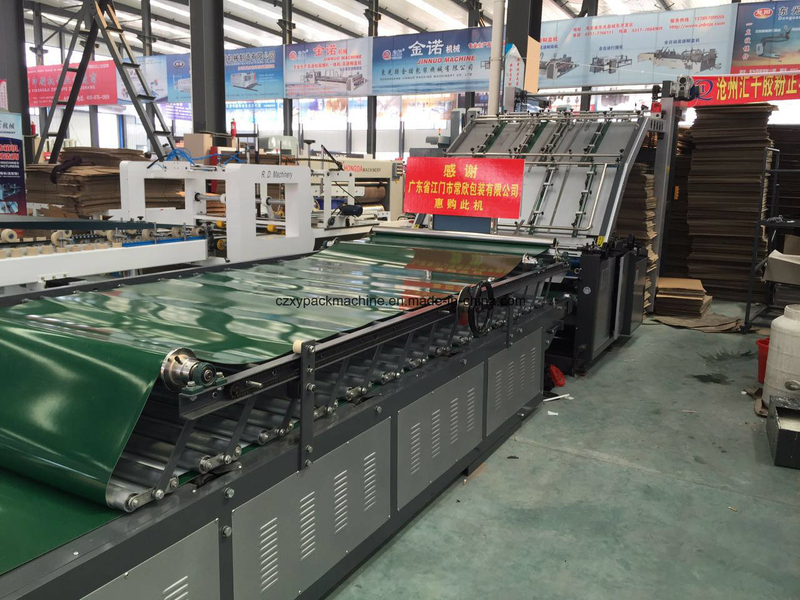

Customer Visit:
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting

TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting


Related Products:
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting

Delivery picture:
TMJ-1500HII High Platform Semi-Automatic Flute Laminator with Automatic Lifting



Welcome to visit us, we'd glad to be good friends with you!
