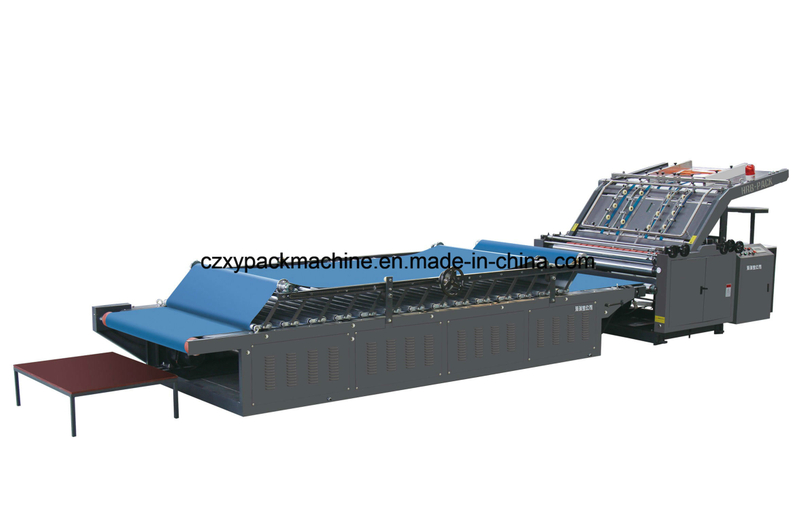

Product Description Semi-automatic high platform corrugated cardboard flute lamination machine Major feature
Functions and features:
1.The top paper can pile up the height of 1.5m once time ,it makes delivery more easier and efficient.
2.Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
3.The machine operation is stable,surface paper with corrugated paper joint very Accurate.The corrugated paper never pull ahead,surface paper's location is easy adjust.
4.Machine uses touch-screen / PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm.
5.Automatic gluing,and the giue can be used circulatory,avoid glue waste.
6.Roller design scientifically,avoid glue fly out when the speed is high.
7.Pressure rollers adopt unilateral adjustment,convenient and fast.
8.Rocker controls wash roller's fluctuation,easy cleaning.
9.Counter designs scientifically,easy recording the amount you have been worked. Technological parameter
|Model ||TMJ-1300H-II ||TMJ-1500H-II ||TMJ-1600H-II |
|Max. size ||1300mmX1300mm ||1500mmX1300mm ||1600mmX1300mm |
|Min size. ||360mmX360mm ||360mmX360mm ||360mmX360mm |
|Economic speed ||0-100 piece/min ||0-100 piece/min ||0-100 piece/min |
|Precision ||±1mm ||±1mm ||±1mm |
|Power ||9.5kw ||9.5kw ||9.5kw |
|Size ||8.8m x 1.95m x1.7m ||8.8m x 2.15m x1.7m ||8.8m x 2.25m x 1.7m |
|Weight ||About 3 T ||About 3.5T ||About 3.5T |
