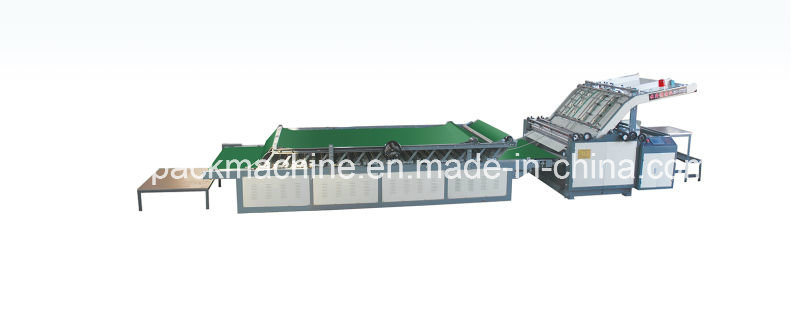

TMJ-1300HI Vacuum Servo Semi-Automatic Flute Laminator for Cardboard Pasting

Quantity:
  • Color Box Making
  • 5000PCS/H
  • 1300/1500/1600
  • Manual Feeding
  • Touch-Screen/PLC/Servo Motor Control System
  • 1300X1200mm
  • 1.5mm
  • 10kw
  • Delta
  • Automatic Gluing
  • Standard Plastic Packing for Abroad
  • 4.5ton
  • CZXY
  • Hebei, China
  • 8441809000
  • 10sets/Month
  • Available | Customized Request
TMJ-1300HI vacuum servo semi-automatic flute laminator for cardboard pasting
TMJ-1300HI Vacuum Servo Semi-Automatic Flute Laminator for Cardboard Pasting
TMJ-1300HI Vacuum Servo Semi-Automatic Flute Laminator for Cardboard Pasting


Major feature:
Functions and features:
1.Independent research and development,we are the first manufacturer for servo semi-automaticflute laminator.

2.Adopt PLC control system,working is moreprecision and stable,improved the speed,circuit faults can automatically alarm.

3.This machine adopts Taiwan servo motor,instead of the break clutch and electronic eye,realized PLC&servo single ontrol independently.

4.Corrugated cardboards auto feeding,as fast as the surface papers'working.

5.The machine operation is stable,surface paper with corrugated paper joint very accurate.the corrugated paper never pull ahead,surface paper's location is easy adjust.

6.Automatic gluing,and the gluecan be used circulatory,avoid glue waste.

7.Roller design scientifically,avoid glue fly out when the speed is high..

8.Pressure rollers adopt unilateraladjustment,convenientand fast.

9.Rocker controls wash roller's fluctuation,easy cleaning.

10.Counter designs scientifically,easy recording the amount you have been worked.

Technological parameter:
Model TMJ-1300HI TMJ-1500HI TMJ-1600HI
Max. size 1300mmX1300mm 1500mmX1300mm 1600mmX1300mm
Min. size 360mmX360mm 360mmX360mm 360mmX360mm
Economic speed 0-100piece/min 0-100 piece/min 0-100piece/min
Precision ±1 ±1 ±1
Power 8.5kw 8.5kw 8.5kw
Size 8.8m x 1.95m x 1.7m 8.8m x 2.15m x 1.7m 8.8m x 2.25m x 1.7m
Weight About 3T About 3.5T About 3.5T
