Single Piece Semi-Automatic Double Servo Stapling Stitching Machine

Quantity:
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
  • Electric

  • Engineers Available to Service Machinery Overseas

  • Carton Packaging Machinery

  • Semi-Automatic

  • Imported Brand

  • Omron Brand

  • Taiwan Technology

  • Taiwan Brand

  • Germany Tungsten Steel

  • One Minute

  • All Available

  • Automatically,

  • 2460mm

  • 3ply and 5ply

  • Standard Abroad Packaging, Container

  • 2000

  • CZXY

  • Hebei, China

  • 8441809000

  • 20days/Set

  • Available | Customized Request

Single piece semi-automatic double servo stapling stitching machine

Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
Single Piece Semi-Automatic Double Servo Stapling Stitching Machine Single Piece Semi-Automatic Double Servo Stapling Stitching Machine

CZXY-2000 Single piece semi-automatic double servo carton stapler
Feature and characteristic:

  1. Imported double servo drive, precision is accurate, can reduce mechanical transmission , thus reduce the machinery malfunction effectively.
  2. The stapler adopt touch screen operation, parameter(stitching pitch,number of stitching, stitching kind, back shield)changes conveniently and fast.
  3. The whole system of stapler is Omron PLC control system.
  4. The switch of control cabinet are all produced by Taiwan Shilin.
  5. The blade of automatic stapler die block is made of Germany tungsten steel.(wearable)
  6. The nailhead of stapler are all made of special steel ,processed by computer precisely.
  7. The switch and button are all produced by Taiwan Tiande

Fatures:
  1. Change size quickly in a minute.
  2. Easy operation , no training is necessary.
  3. Single ,double, strengthen are all available.
  4. The feeding part can count automatically, and output automatically in a certain, easy for binding.
  5. Touch screen operate
  6. Adopt servo system
  7. Stitching distance :100mm
  8. Stitching whatever the carton has cover or not.
  9. Stitching distance can be set up in touch screen directly.
  10. Auto adjust paperboard thickness.
Max size (L+W)*2 2460mm
Min size(L+W)*2 606mm
Max size (L+W)*2 1515mm
Min size(L+W)*2 300mm
Height of feeder 900mm
Motor Power 6kw
Length 4500mm
Width 2100mm
Weight 2000kg
Speed 450staples
Stitching Pitch 30-70mm
Number of stitching 1-99stitches

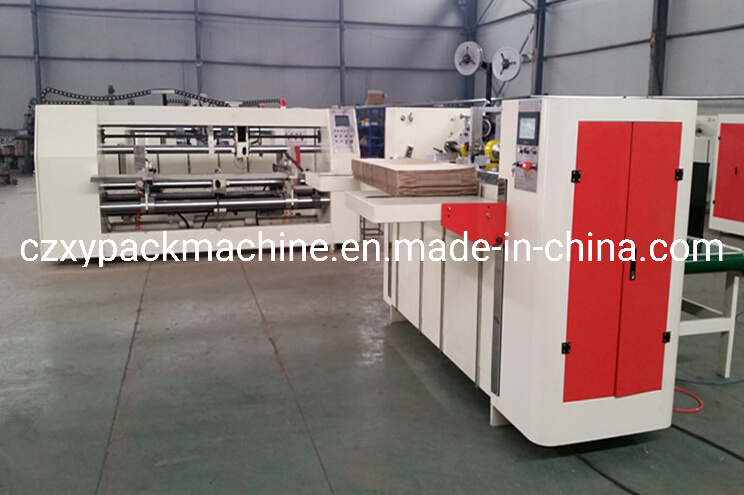

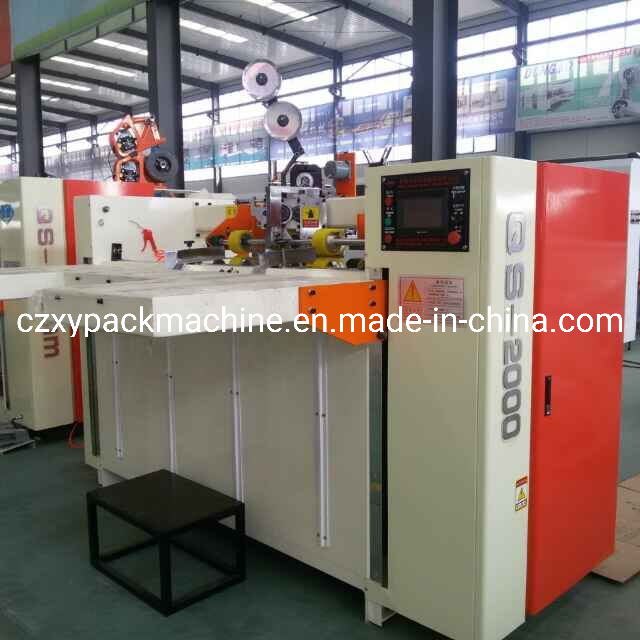

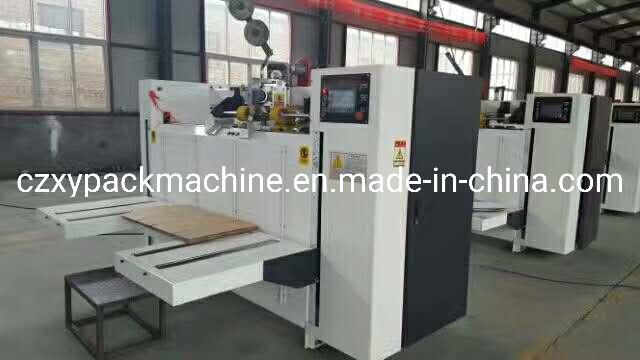

Machine details:

Single Piece Semi-Automatic Double Servo Stapling Stitching Machine

Box Producing Process:

Single Piece Semi-Automatic Double Servo Stapling Stitching Machine

Customer Visit:

Single Piece Semi-Automatic Double Servo Stapling Stitching Machine
