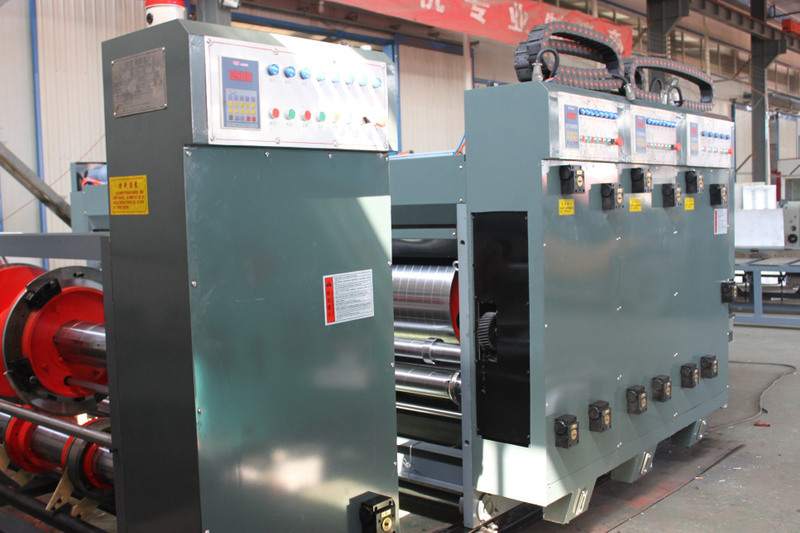

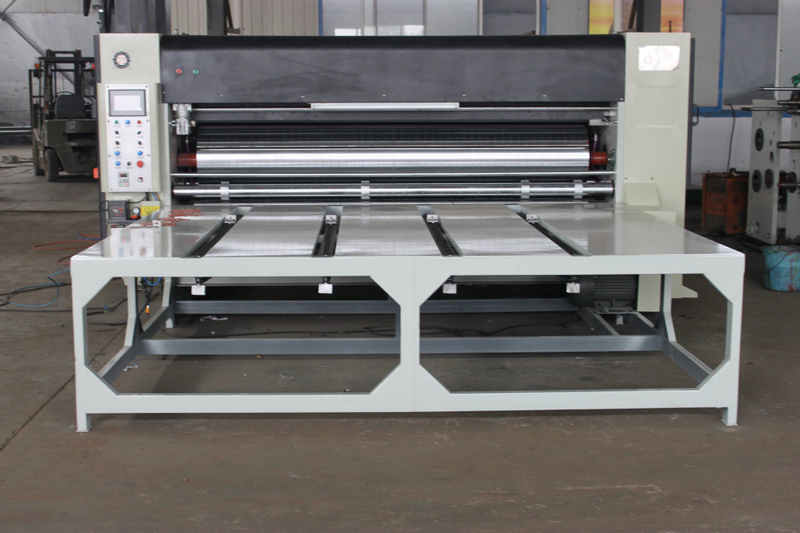

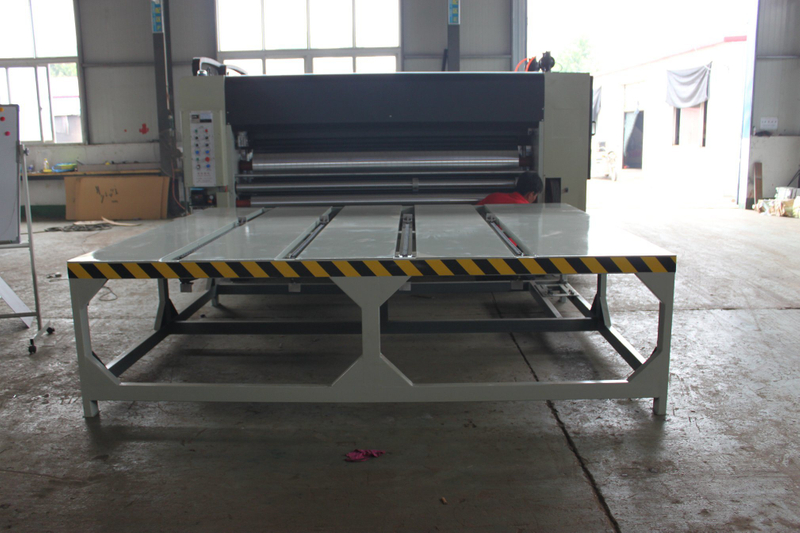

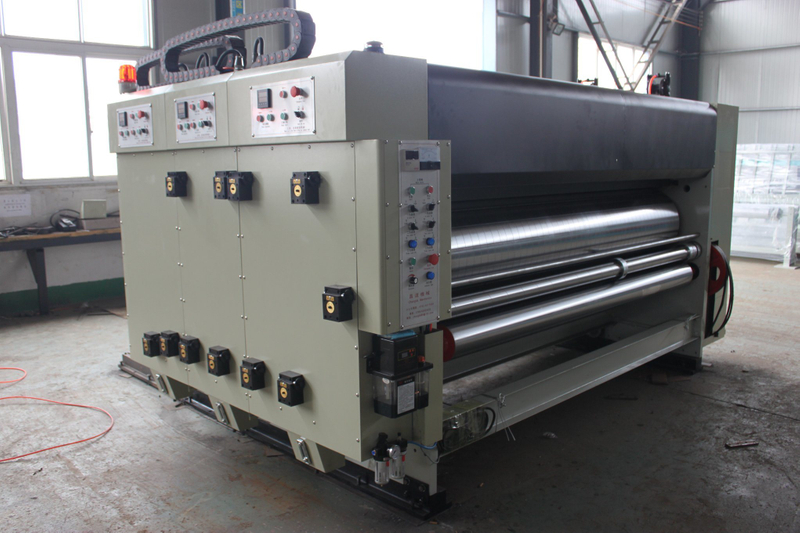

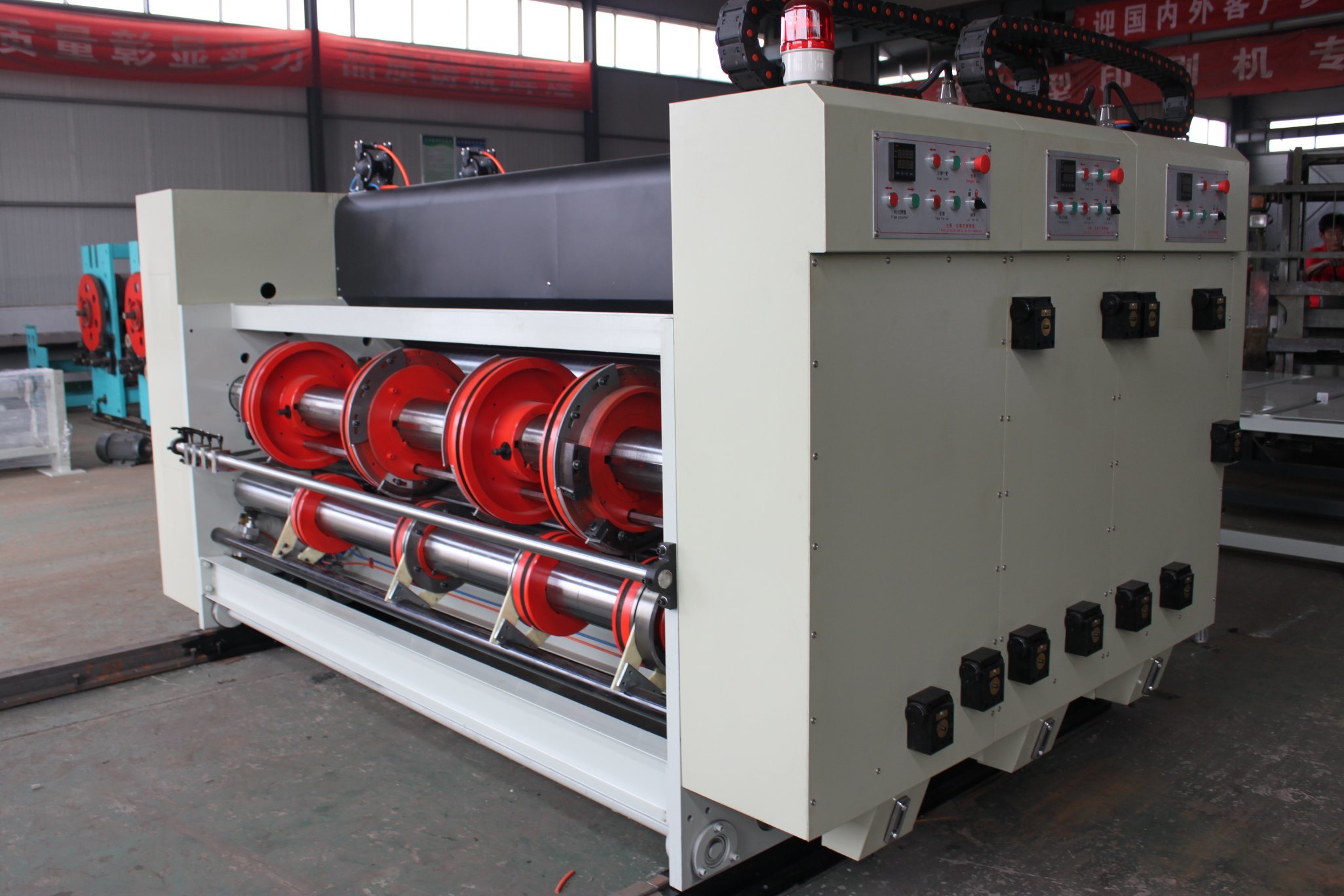

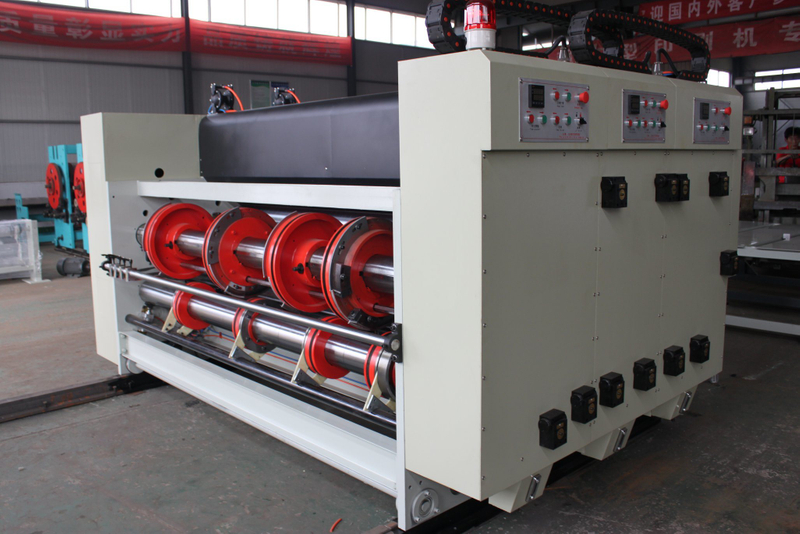

Semi Automatic Printing Slotting Die Cuttiing Machine

Quantity:
Semi Automatic Printing Slotting Die Cuttiing Machine
Semi Automatic Printing Slotting Die Cuttiing Machine
Semi Automatic Printing Slotting Die Cuttiing Machine
Semi Automatic Printing Slotting Die Cuttiing Machine
Semi Automatic Printing Slotting Die Cuttiing Machine
Semi Automatic Printing Slotting Die Cuttiing Machine
  • Depending on The Customer′s Configuration

  • 5.5 Kw

  • Engineers Available

  • Both Can Optional

  • 1-5color

  • Chain Feeding

  • CZXY-2600*1650

  • 60PCS/Min

  • Customized as Customer Need

  • 380/400/440V

  • Non-Key Connection

  • Plastic Film, Container

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

Semi automatic printing slotting die cuttiing machine

Configuration :
Printing unit:
Printing precision: ±0.5mm

Printing roller
External diameter is Ø 528mm( diameter is Ø 540mm including plate)
Surface grinding, hard chromium plating .
Dynamic and static balance correction, smooth ly operation .
2.Printing pressing
External diameter is Ø 164mm
G rinding, hard chromium is plat ed on s teel tube s urface .
Dynamic and static balance correction, smooth ly operation .
Printing press roller gap adopts digital electric adjustment , and adjust scope is 0-12mm.
3. Metal Anilox Roller
External diameter is Ø 180mm
4. Rubber Roller
External diameter is Ø 164mm
Corrosion resistance rubber is wrapped on steel tube surface.
Rubber r oller is grinded specially, i nk transfer effect is good .
5. Phase adjusting mechanism
Planetary gear structure .
Digital display type phase instructions , operation more convenient, intuitive and accurate .
Printing adopts electric digital 360 degrees adjustment accordingly ( run or stop can also be adjusted ), p hase modulation precision can reach 0.15 mm
6. I nk circulation
Pneumatic diaphragm pump , ink-supplying stably , make it simple to operat e and maint ain.
Adopts ink -saving cleaning device , c an save the ink effectively .
Ink filter, can filter impurities .
7. Axial adjusting mechanism
Manual type axial adjusting mechanism .
Digital display type position indicator, make the operation more convenient, intuitive and accurate .

Slotting unit:
  1. The knife dish slot configuration
S lotting precision: ±1.5mm
clearer burr :
  1. Diameter of axle is Ø110mm, after two times of grinding, hard chromium is plated on surface, moving smoothly.
Adjustment scale turbine box line pressing wheel clearance , adjust scope is 0-12mm
Slotting knife holder transverse adjusting mechanism
  1. Diameter of axle is Ø156mm, bedplate diameter is Ø280mm, after two times of grinding, hard chromium is plated on surface, moving smoothly
  2. Slotting knife width is 7mm
  3. Alloy tool stainless steel material is dealled by heat, grinding tooth slotting knife, trimming knife, with good hardness and toughness,also high precision
Slotting phase adjusting mechanism : p lanetary gear structure
T ransmission gear
  1. Main Transmission gear
  1. Thickness of wheel gear is 50mm, using (HT150) ball mill steel, carburizing heat treatment
  2. The precision is Grade6-7, hardness is 58-62 degree, life time can last 20years.
  3. Dealed with finish-milling and processing, reduces the machine noise , keep machine operate smoothly
  1. The key link
By free key link , c an make the shaft connected to the gear , t here will be no gap when working, make Installation and maintenance more convenient , c an make the machine for a long time the high precision, ensure the printing alignment .
R ack Unit
  1. Wallboard is 40mm solid, 160 joist steel tiepiece, make the machine run smoothly.
  2. The thickness of working table is 3mm.
  3. Walking is 40 mm solid cold drawn roll.
  4. Ground rack is cast iron, make machine work more smoothly.
Parameter:
Type 2600*1650
Mechanical top speed 60pcs/min
Maxfeeding size 2800*1650
Min feeding size 400*600
Interleave Paper feeding size 2800*2000
Feeding thickness scope 0-12
Max printing size 2600*1650
Standard printing thickness 6
Min slotting distance Positive cutter 130*130*130*130
Opposite cutter 230*60*230*60
