Semi-Automatic Double Head Corrugated Box Stitcher Machine

Quantity:
  • Electric
  • Engineers Available to Service Machinery Overseas
  • Carton Packaging Machinery
  • Semi-Automatic
  • Imported Brand
  • Omron Brand
  • Taiwan Technology
  • Taiwan Brand
  • Germany Tungsten Steel
  • One Minute
  • All Available
  • Automatically,
  • by Touch Screen
  • 3ply and 5ply
  • Taiwan Brand
  • Standard Abroad Packaging, Container
  • 2000
  • CZXY
  • Hebei, China
  • 8441809000
  • 20days/Set
  • Available | Customized Request
Semi-automatic double head corrugated box stitcher machine

Semi-Automatic Double Head Corrugated Box Stitcher Machine Semi-Automatic Double Head Corrugated Box Stitcher Machine

Semi-Automatic Double Head Corrugated Box Stitcher Machine
Semi-Automatic Double Head Corrugated Box Stitcher Machine

CZXY-1600 Dual piece semi-automatic double servo carton stapler

Main function and parts:

  1. Single ,double, strengthen are all available.
  2. One machine can stitch single, double, irregular box.
  3. Change size quickly in a minute, easy operation , no training is necessary.
  4. The feeding part can count automatically, and output automatically in a certain, easy for binding.
  5. Back part counts automatically, the finished product can be sent to end of conveyor according to the setting quantity
  6. Suitable for 3/5layer color box, stitching whatever the carton has cover or not.
  7. Stitching distance can be set up in touch screen directly, easy operation.
  8. Auto adjust stitch distance by computer.
  9. Imported multi-servo system control, stitch distance more longer, stable, and accurate.
  10. Omron PLC control system
  11. The nailhead of stapler is produced in Guangdong, longer warranty period.
  12. The blade of automatic stapler die block is made of Germany tungsten steel.(wearable)
  13. The switch of control cabinet are all produced by Taiwan Shilin.
  14. The switch and button are all produced by Taiwan Tiande
  15. All pneumatic parts are produced by Taiwan brand.
Model 1600mm(2100) 1800mm
Stitch distance 30-120mm
speed 450stitch/min
Max paper size(length +width)*2 3200mm 3600mm
Min paper size(length +width)*2 1060mm
Max carton box length 1450mm
Min carton box length 350mm
Max carton box width 800mm
Min carton box width 180mm
Min carton box height 400mm
Motor power 10kw 11kw
Length 4000mm
Width 3400mm 4000mm




Machine details:

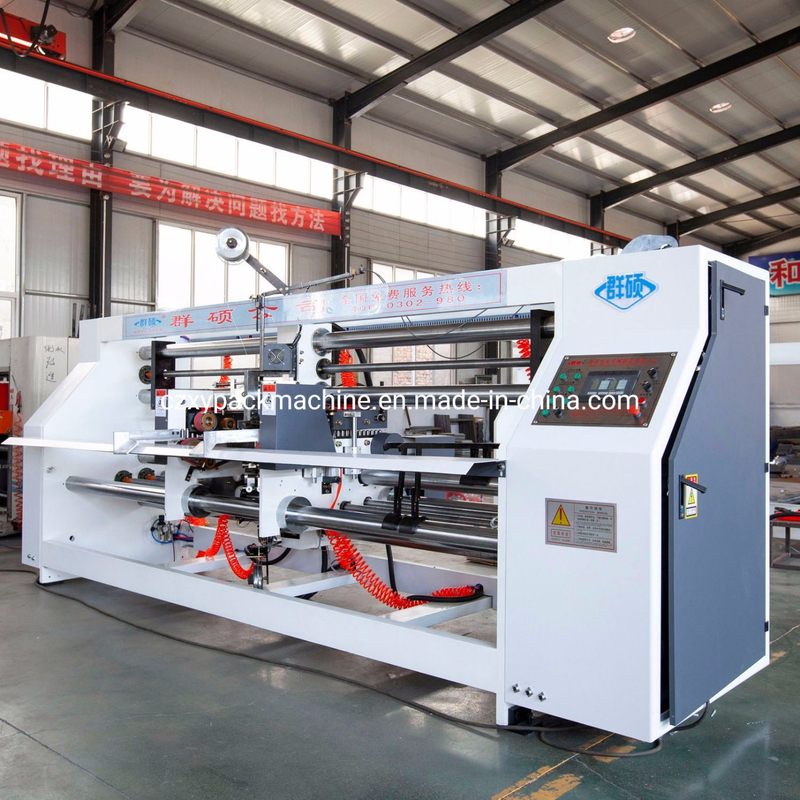

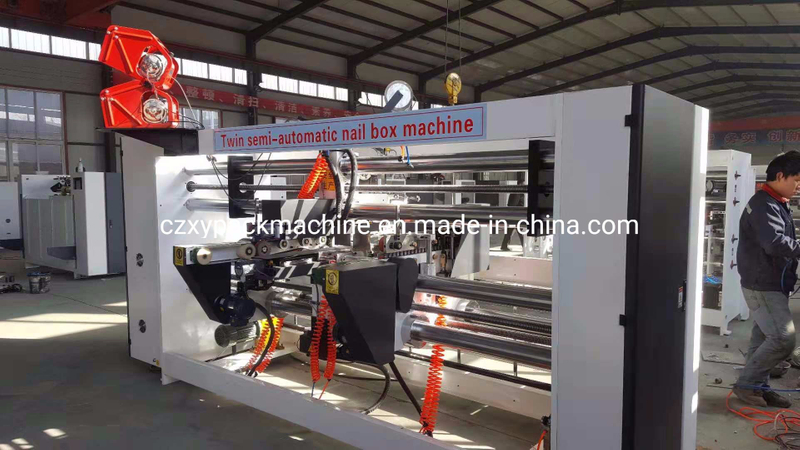

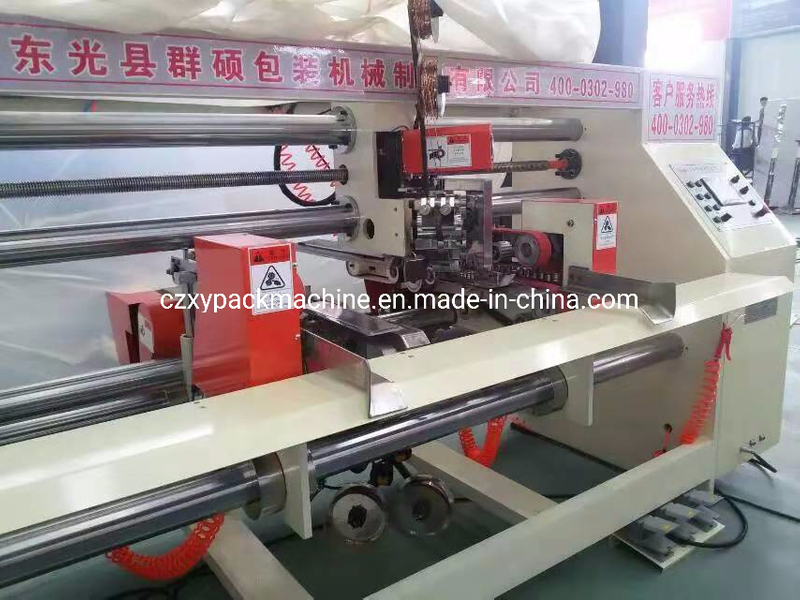

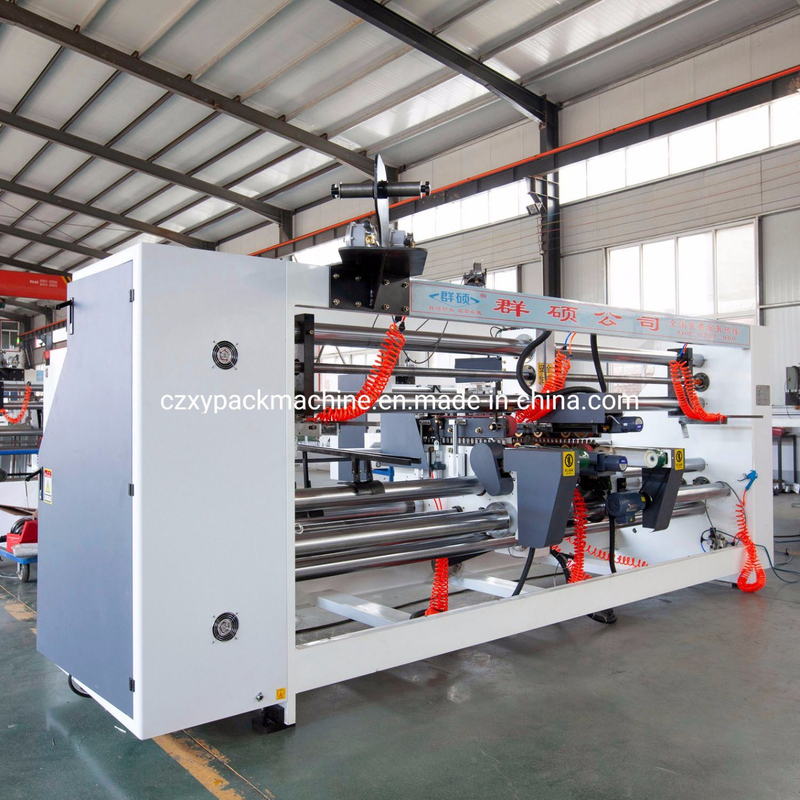

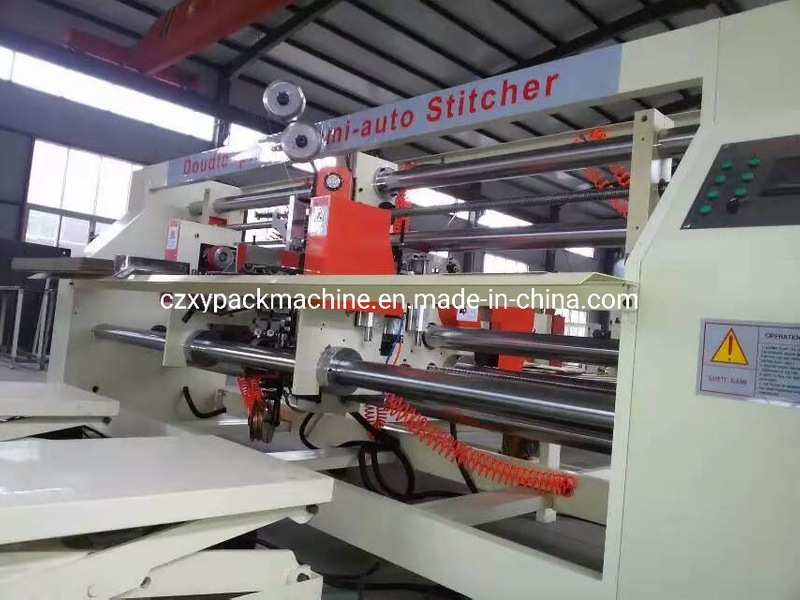

Semi-Automatic Double Head Corrugated Box Stitcher Machine

Box Producing Process:

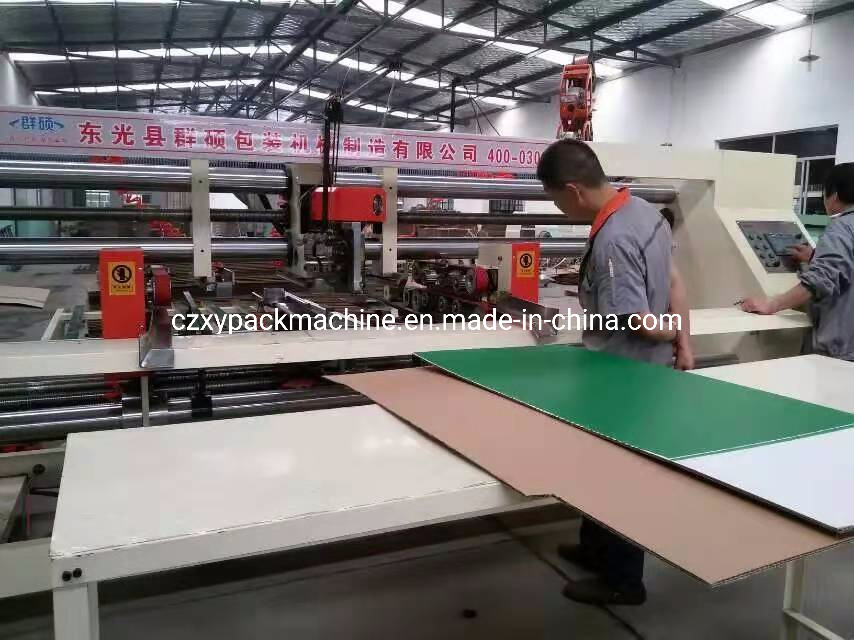

Semi-Automatic Double Head Corrugated Box Stitcher Machine

Customer Visit:

Semi-Automatic Double Head Corrugated Box Stitcher Machine

Related Products:

Semi-Automatic Double Head Corrugated Box Stitcher Machine
