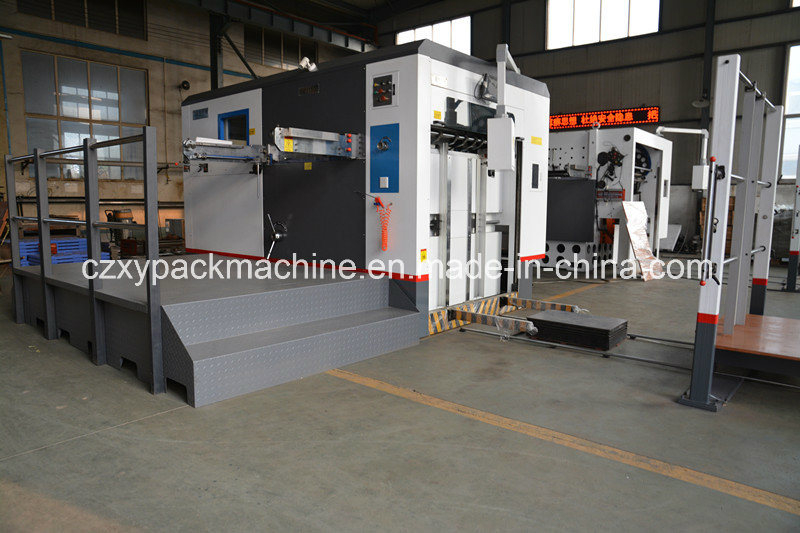

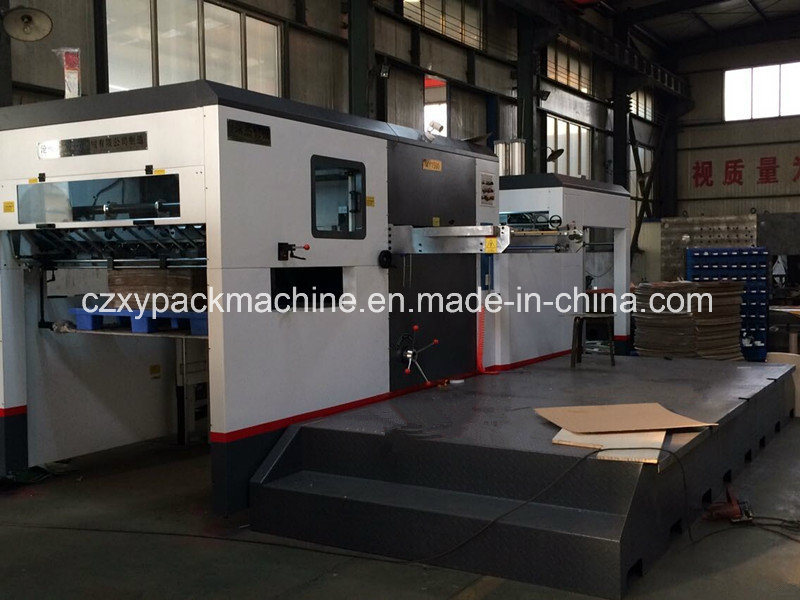

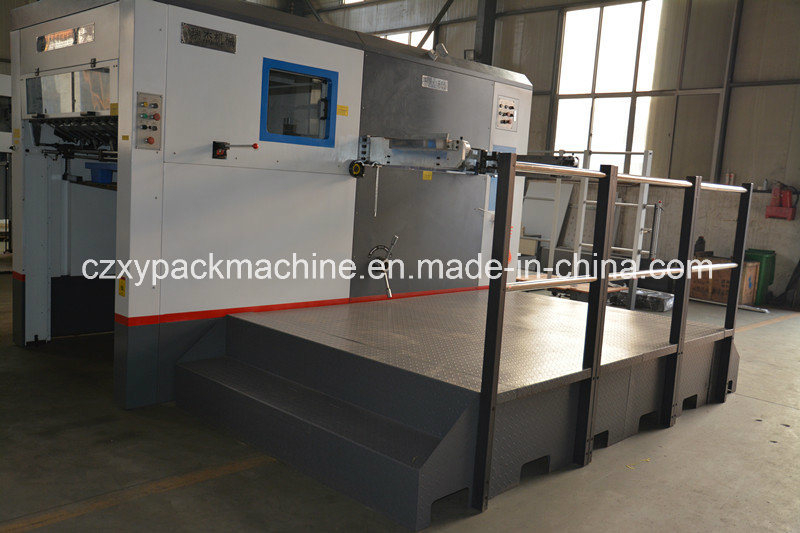

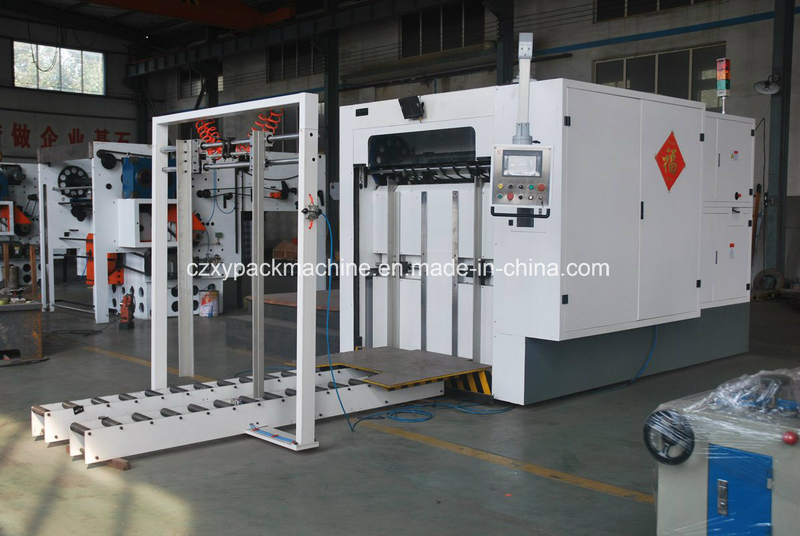

Semi-Auto Die Cutting Creasing Machine for Paperboard Making

Quantity:
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
  • Die Cutting and Creasing Machine

  • Platen

  • Horizontal

  • Steel Plate

  • Computerized

  • Semi-Automatic

  • MY-1200

  • Paper Packaging Materials

  • Platen press

  • 1230*850mm

  • 350*450mm

  • 1210*830mm

  • 300N

  • 200-2000g

  • 8mm(max thickness)

  • 4500 sheets/h

  • 0.1mm

  • 13 T

  • Plastic Film, Container.

  • Delivery time: About 50 days according to our fact

  • Xiaoyuan

  • Cangzhou City, Hebei Province

  • 8441809000

  • 5sets/Month

  • Available | Customized Request

Semi-Auto Die Cutting Creasing Machine for paperboard making
Semi-Auto Die Cutting Creasing Machine for Paperboard Making Semi-Auto Die Cutting Creasing Machine for Paperboard Making

Semi-Auto Die Cutting Creasing Machine for Paperboard Making
Specifications

Semi-Auto Die Cutting Creasing Machine
1. Model: MY1200 to MY1600
2. CE Certificate, ISO Certificate

I. Brief Introduction:
MY1200 semi-automatic die-cutting and creasing machine is a special equipment applying to die-cutting of advanced colored boxes made of paper.
The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal,back and side registration mechanism ensure great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision , air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time,etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to operator and of environment. . Frontal and back pressure can be adjusted separately.It is convenient to stop the machine by hand.It can also realize die cutting without clipper margin.

II. Main Specifications
Model MY-1200
Max paper transmitting size 1230*850mm
Min paper transmitting size 350*450mm
Max die cutting size 1210*830mm
Min gripper size 6mm
Max die cutting pressure 300N/cm²
Paper processed Ivory board 200-2000g/ m²
Corrugated board 8mm(max thickness)
Die cutting precision ±0.1mm
Max die cutting speed 4500 sheets/h
Max feeding pile height 1400mm(above the level)
Min feeding pile height 1200mm(above the level)
Total power 11kw
Total weight 13 T
Overall size 4200*2200*2250mm


Finished box picture:
Semi-Auto Die Cutting Creasing Machine for Paperboard Making

Related Machines:
Semi-Auto Die Cutting Creasing Machine for Paperboard Making


Delivery picture:
Semi-Auto Die Cutting Creasing Machine for Paperboard Making
