Hot Sale Full Automatic Flat Bed Die Cutter with Stripping Machine

  • New

  • CE

  • Automatic

  • Paper

  • Thick Paper

  • Flat Die Cutting with Stripping

  • 1070×790

  • 450×360

  • 1060×780

  • 5mm

  • 7000sheet/H

  • ≤4mm

  • 1630mm

  • 1350mm

  • ±0.1mm

  • Plastic Film Wrapping Outside, Container

  • SL1060 MF

  • CZXY

  • Cangzhou City, Hebei Province

  • 8441809000

  • 3-5sets/Month

  • Available | Customized Request

Product Description

Semi automatic die cutting and creasing machine with CE

High Quality Automatic Creasing Machine with Ce Myq1500

Main Production

1. Paper feeding part: Pre code paper, paper feeding platform, pneumatic bench.
Pre code paper: Cylinder sliding angle aluminum, easy and fast to operate. The operator needs to put the processed
paper into the pre-code paper trolley, and put the trolley back to paper feeding platform to continue the next
working when the paper sets the lower limit.
Paper feeding platform: Automatic upgrade step distance can be set according to the paper amount, the operation
is simple and fast. With the characteristics of shorter feeding distance and low labor intensity.
Pneumatic bench: The operator stand on the working platform, pneumatic adjusting the height of machine according
to different height of operator, easy to operate, saving time and effort..
2. Positioning section: the former regulations, the regulatory side.
Former regulation: The oscillating former swinging on the paper side of a small impact, high positioning precision,
with four sets of regulations former detection precision(Taiwan Riko) fiber switch, the paper is in place to detect and avoid paper waste.
Side regulation: You can choose different products based on the regulatory side, no need to replace components,
easy adjustment and quick.
3.Die cutting section: gripper, die cutting frame, die cutting steel, transmission structure, host bottom station, the moving
platform and the platform, intermittent structure, pneumatic clutch and brake.
Die cutting pressure can overall regulating and can gripper edge regulating alone, manual slow down before turning
convenient save Labor.
Gripper edge tooth row: USES the high strength of hard aluminum alloy precision casting gripper edge tooth row of
good rigidity, light material, small inertia, high strength, can accurate smoothly transfer paper in high speed running.
Unique tooth top gauge, die cutting double location and curve of CAM movement, low noise, high precision and durable,
gripper edge only 6 mm.
Die cutting plate and frame: double reinforcement of die cutting plate and frame adopts pneumatic locking, spread into
the rolling bearing guide rail, high safety, easy operation.Hard aluminum alloy plate, die cutting space/hanger card,
make a template accurate positioning, strong, and can be repeated use, can effectively prevent the die-cutting edition prolapse and escape.
Die cutting plate: cr steel processed by special heat treatment by 70, good flatness, high hardness, long service life.
Personalized air cushion smoke edition system make the steel plate propulsion and pull out, a convenient time.

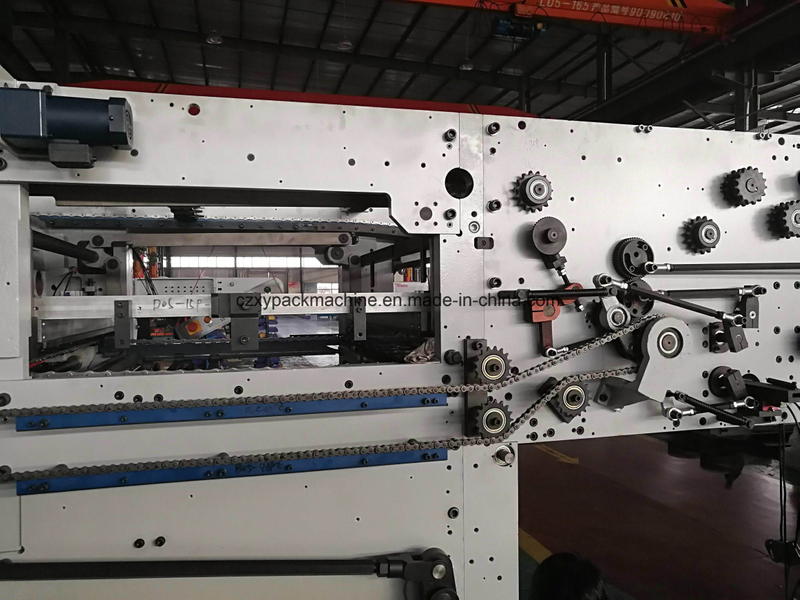

Transmission mechanism: novel transmission design, realizes the high speed precision die cutting, worm gear and
worm pair is used in the main drive system and the special design of crankshaft connecting rod mechanism, in the
form of bearing bush connection, reduce the movement clearance, avoid the worm gear and worm, die-cutting pressure, and have the function of high pressure.Corners of moving platform is equipped with buffer spring for
decompression and reduce wear machine, the machine run more smoothly.
Host platform, moving platform and the platform: key parts such as high strength ductile iron resin sand casting, high
tensile strength and good toughness.
Intermittent mechanism: using high precision parallel ternary CAM indexing mechanism, CAM curve by the special
design, dynamic process Angle, take the tooth row run more smoothly.
Pneumatic clutch brake: by adjusting the air pressure control torque, low noise, good braking performance.Automatic
stop when the machine overload protection to avoid the happening of the accident.
4, Deceive paper: paper, quantitative paper automatically.
After his paper, side neat paper to ensure the automatic paper orderly, paper receiving organization structure is simple,
quick operation, neat paper location by electric adjustment, after three times faster than the manual, the operation is
simple and convenient.Collect paper after the monitor in front of a machine operators can observe after paper.After
paper double detection switch, monitoring paper to ever reach the designated position.After the paper doesn't stop air
sampling.Paper, full automatic alarm, remind the operator timely replacement of paper machine.
Quantitative paper: from 10 to 9999 set arbitrary values, when the paper reaches the set value, automatic parking.
5, Electric control department: motor, PLC and man-machine interface, electronic control system, all kinds of safety protection device.
With imported Fuji inverter motor, main motor stepless speed control, saving energy, low noise.For paper and paper
reduction motor imported Taiwan electromagnetic braking deceleration motor, safety performance is high, long service
life and low noise operation.
PLC and humanmachine interface: digital display of the machine work speed and status, application of frequency converter to control
the main motor, stepless smooth operation.Man-machine interface display system can real-time display all
kinds of working condition, fault location and solutions are put forward.
Electrical control system: Microcomputer control implementation from to paper, paper, die-cutting,each part of
the paper, process of automatic control and real-time detection.
All kinds of safety protection device: a failure occurs more sound the horn alarm, and automatically stop, really ensure
human safety.
6, lubrication system: forced lubrication system and regular lubrication system.
Forced lubrication system, oil pressure and flow rate adjustment is convenient, make sure that the main drive internal
oil supply is normal, no oil, automatic stop.
Regular lubrication system, combined with the host of the programmable controller, so as to realize the automatic
control of the lubrication function, the drive chain are painting lubrication and oil control, keep the machine clean, timing
quantitative on all lubricating points for oil lubrication, avoid the artificial oil does not reach the designated position and
increase the machine wear.Timing lubrication system not only reduces the machine noise, to ensure the stable operation of the machine.

Technical Parameters:

Model MY-1200
Max paper transmitting size 1230*850mm
Min paper transmitting size 350*450mm
Max die cutting size 1210*830mm
Min gripper size 6mm
Max die cutting pressure 300N/cm²
Paper processed Ivory board 200-2000g/ m²
Corrugated board 8mm(max thickness)
Die cutting precision ±0.1mm
Max die cutting speed 4500 sheets/h
Max feeding pile height 1400mm(above the level)
Min feeding pile height 1200mm(above the level)
Total power 11kw
Total weight 13 T
Overall size 4200*2200*2250mm

Product Overviews

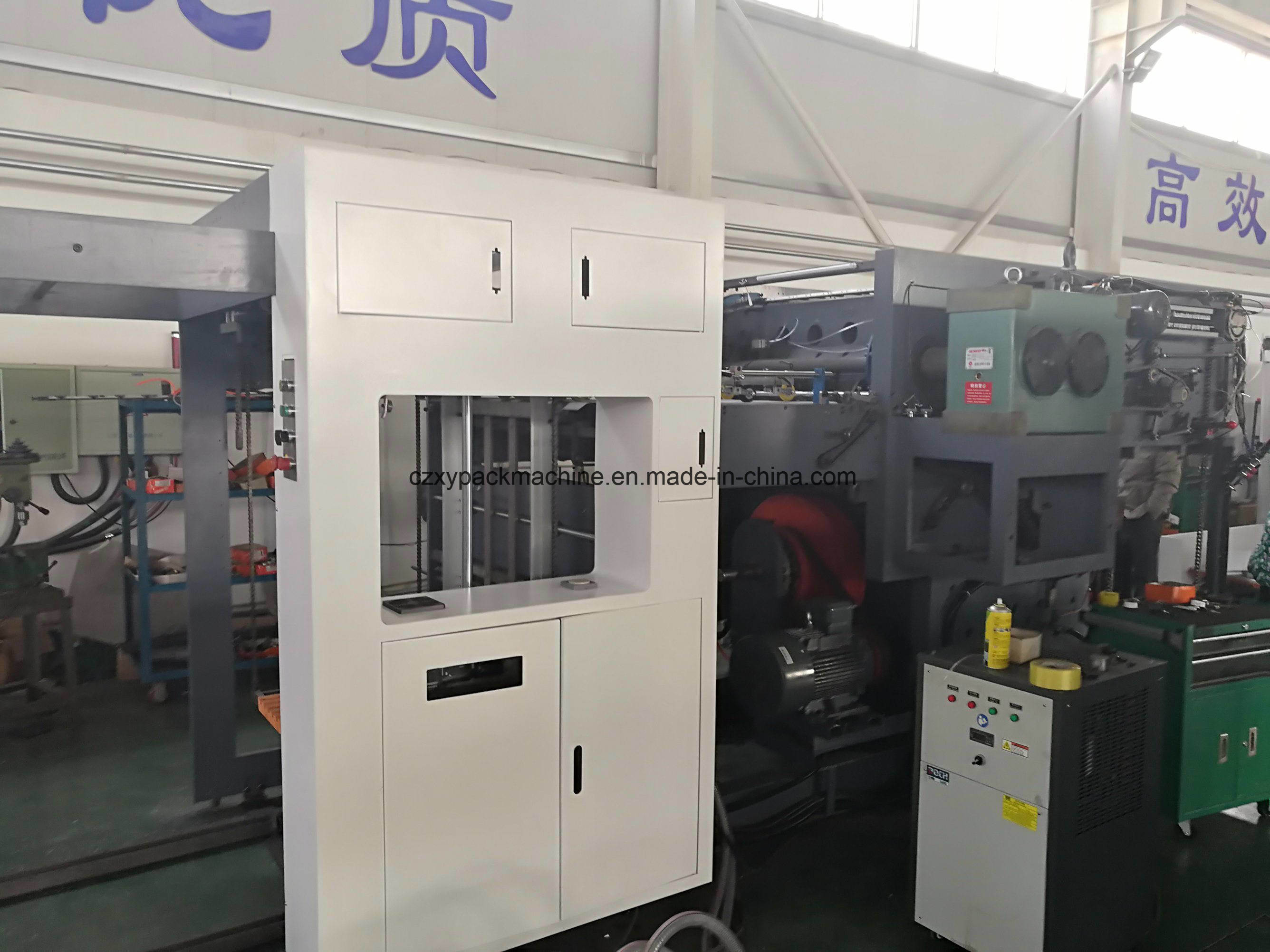

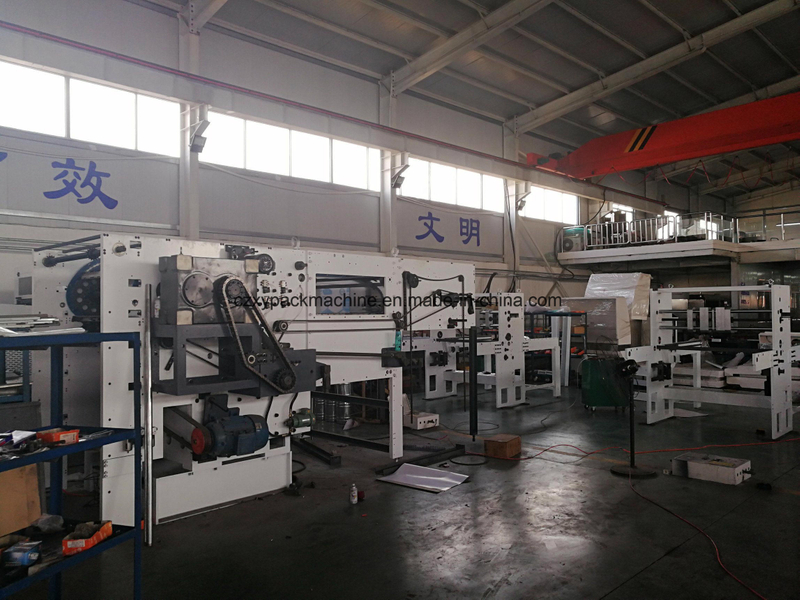

High Quality Automatic Creasing Machine with Ce Myq1500
High Quality Automatic Creasing Machine with Ce Myq1500

Carton box finished picture:
High Quality Automatic Creasing Machine with Ce Myq1500

Our Services

1. OEM service are available.
2. TradeManager online, also contact by Email, Skype. MSN.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.

Customer Visiting Picture:

High Quality Automatic Creasing Machine with Ce Myq1500

Packaging & Shipping
High Quality Automatic Creasing Machine with Ce Myq1500
