Printer Slotter Die Cutter Machine for Corrugated Paperboard

  • 360 Degree Adjusting

  • 5.5 Kw

  • Engineers Available

  • Both Can Optional

  • 1-5color

  • Chain Feeding

  • CZXY-1200*2000

  • 60PCS/Min

  • Customized as Customer Need

  • 380/400/440V

  • Non-Key Connection

  • Plastic Film, Container

  • high quality steel

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

Printer slotter die cutter machine for corrugated paperboard

Printer Slotter Die Cutter Machine for Corrugated Paperboard

Use and performance
1. Circulating oil lubrication system and others printing machine structure .
2. Wallboard 4 0 mm thick cast iron material
3. All the drive roller , shaft fine grinding , hard chromium plating processing .
4. Automatic cycle to the ink system , pneumatic diaphragm pump , ink stability , simple operation and maintenance . Ink filter , filter impurities , ink separation . Cleaning is easy to operate , so the ink volume can be adjusted trace . Ink roller can be rising and separate pneumatic rotation , to prevent downtime when the ink dries up , ink roll and convenient cleaning .
5. Gear no gap adjusting device , make cardboard run more smoothly , printing design more clearly not double .
6. Printing and phase structure of planetary gear electric digital phase controller 360 degrees adjustment ( run and stop are adjustable ), position can be adjusted to the first set , long service life and easy to adjust accurately .
7. Drive gear adopt 40 Gr , shaving , quenched and tempered treatment ( high hardness , good wear resistance ), according to the requirements of high precision processing and manufacturing , and cross slide block connections , and USES the spray lubrication mechanism , long service life , low noise , smooth operation , ensure the accuracy of tinted .
8. Each unit electric points , pneumatic locking , relax . With alarm , warning light tip more can improve the safety of the operation .
9.front and back is equipped with urgent stop switch and control in the paper feeding.
10.CAD Design modules can be any combination of multicolor printing unit .
11. With automatic counting device , it can display properly production number , and host automatically stop after complete the preset number .

Type unit YFQ1200*2000
Plate roller diameter:(including plate thickness) mm ¢405
Plate roller length mm 1600
Inner width mm 2000
Design speed pcs/min 60
Max printing size mm 1150×1600
Max paper size mm 1150×1800
Min paper size mm 400×600
To adapt to the thickness of the cardboard mm 3-11
Wall thickness mm 40
Slotting width mm 7
Corner cut width mm 50
Overprint error mm ≤±0.5
Max slotting depth mm 300

III . Main Configurations and parameters of machines

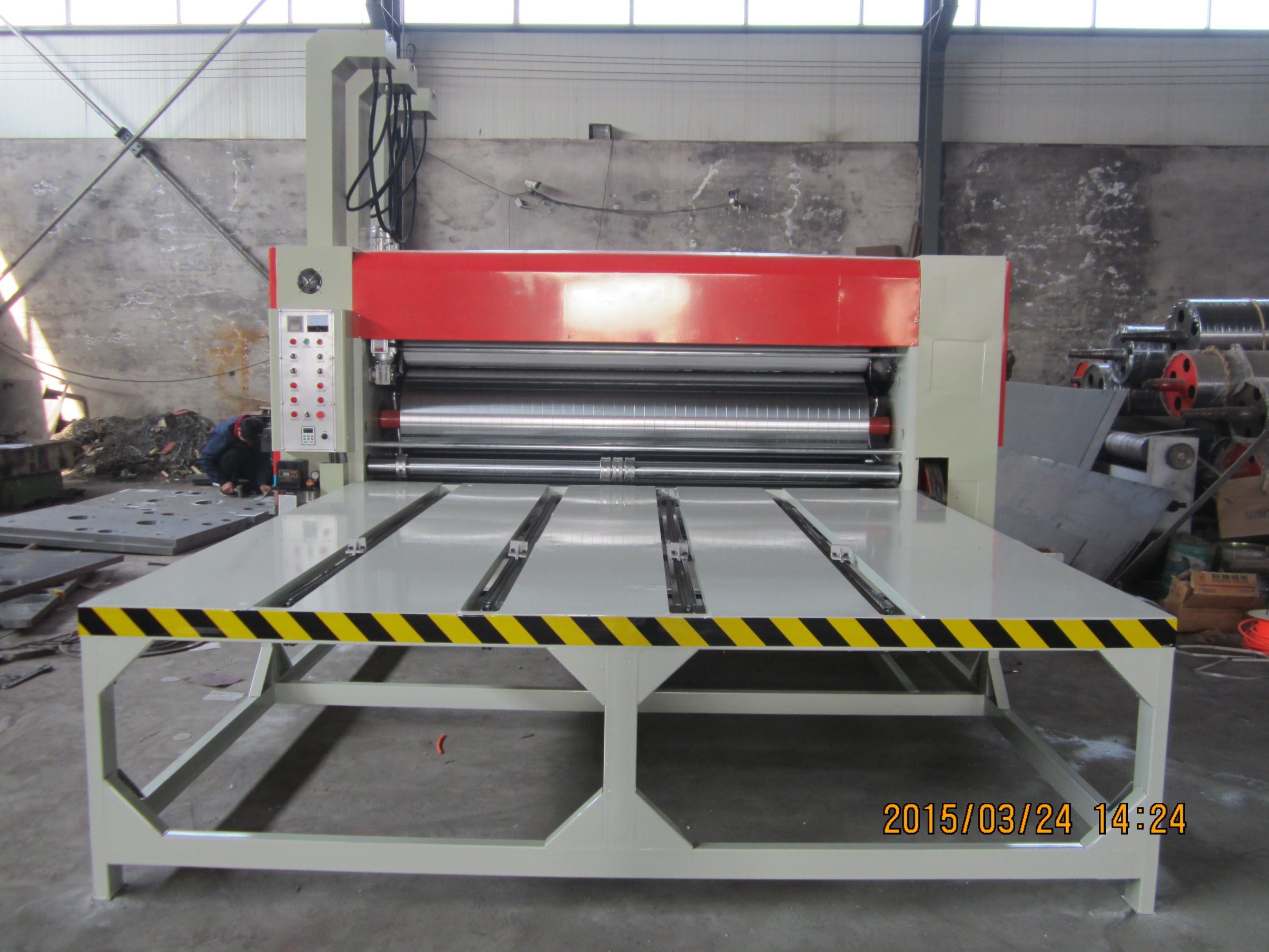

Paper feeding department

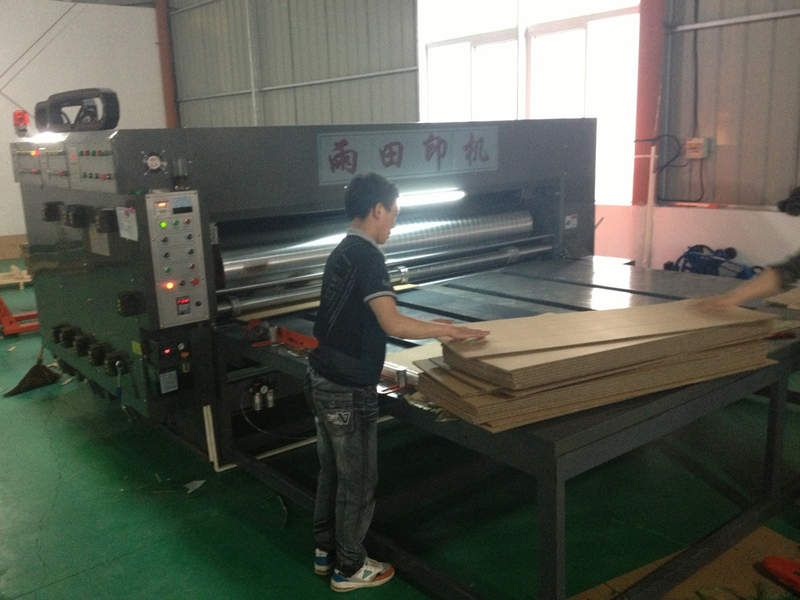

1. Workbench use chain plate feeding way , the manual sheet paper to adapt to the cardboard wide ly and general warping board are applicable .
2. F ront and back axle 35 mm , three points fixed , operate smoothly.
3. The chain firmness adjusting mechanism .
4. Attach paper pressure device , make the warp cardboard fe e d into paper axis smoothly .
5. Overprint adjusting mechanism is convenient and quick adjustment plate and cardboard position .

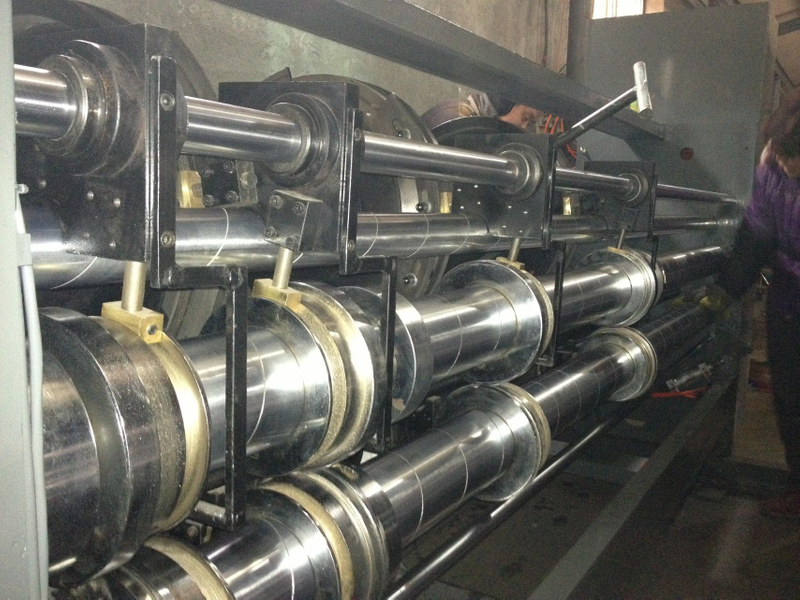

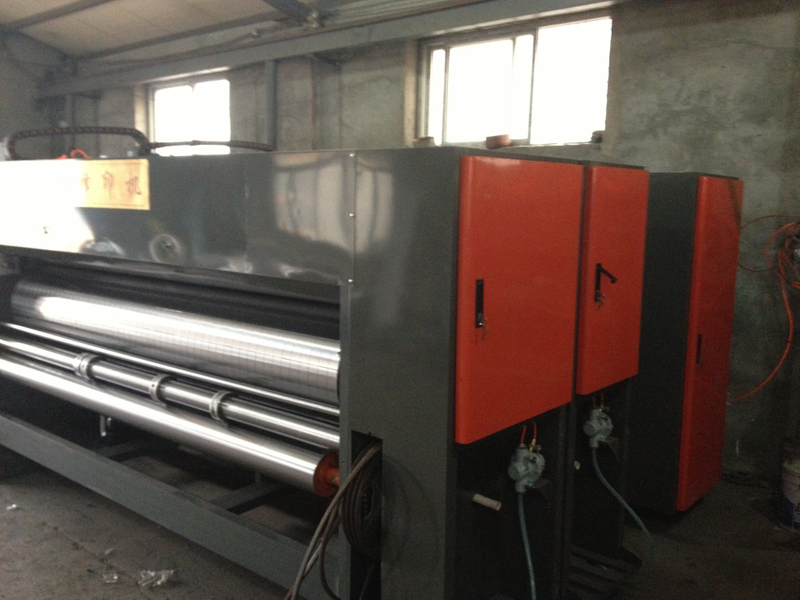

Printing department
1. Upper paper feeding roll diameter 86 mm , paper feeding wheel outer diameter 12 0 mm .
2.Lower paper roll 155 mm , fine grinding hard chromium plating , 14 mm wall thickness .
3. Roller clearance between upper and lower roller a dopt the sliding block structure and adjusting range 0 to 10 mm .
4.Printing roller:
(1) External diameter is Ø 398 mm(diameter is Ø 405 mm including plate)
(2) Surface grinding, hard chromium plating.
(3) Surface interval 50 mm delimit scale line , convenient version .
5. Phase adjusting mechanism :
(1) Electric planet gear , which can realize adjusting roller circumferential 360 degrees , digital display , intuitive and accurate .
(2) Axial adjusting mechanism can make the version of the roll around adjust the total of 100 mm . ( 5 mm unilateral )
6. Printing pressing roller
(1) External diameter is Ø1 55 mm , wall thickness 14mm
(2) Grinding, hard chromium is plated on steel tube surface.
(3) Roller clearance adjustment a dopt the sliding block structure , and adjusting range 0 to 1 2 mm .
7. Metal Anilox Roller
(1) External diameter is Ø1 75 mm , wall thickness 22mm.
(2) Steel tube surface through special processing after carving checker ( 180-250 line option )
(3) Network is consistent , uniform inking , durable .
8. Rubber Roller
(1) External diameter is Ø1 65 mm , wall thickness 22mm.
(2) Steel tube surface parcel wear-resisting rubber . ( 20 mm wall thickness )
(3) High special grinding , ink transfer effect is good .
(4) Ink loop adopts pneumatic diaphragm pump , ink stability , simple for operation and maintenance .
(5) ink mesh filter impurities , to protect network roll .

Slotting department

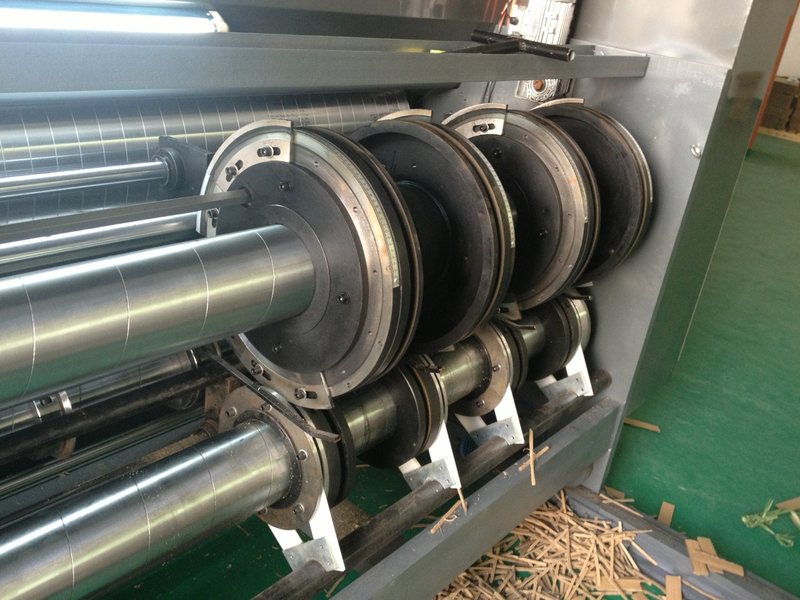

1.Upper knife shaft diameter 1 5 6 mm , the lower knife shaft diameter 156 mm , surface grinding hard chromium plating , balance correction , smooth operation .
2. Line pressing wheel clearance manual adjustment , dial display adjustment data .
3. Slotting knife width is 7 . 0 mm . Alloy steel material , after heat treatment type grinding gear slotting knife 4. Slotting knife gap worm gear box to adjust , dial , according to adjust the range of 0-11 mm .
5. Slotting phase adjusting mechanism , planetary gear structure
6. Slot electric digital phase using phase controller 360 degrees adjustment ( motion and stop all can be adjusted ).
7. Manual sync adjusting box height.
8. Line pressing roller diameter and 110 mm , thick wall seamless steel tube is made of high quality , fine grinding hard chromium plating on the surface of dynamic balancing correction and computers . Line pressing wheel diameter ф 176 .

Transmission gear
Using 40 cr material , thickness of 50 mm , tempering gear shaving processing , hardness of HRC50-55 degrees , high wear resistance , convenient maintenance characteristic .

Rack body
The body adopt the HT - 200 material , thickness of 40 mm , shock absorption performance is good , braced with gb channel steel , solid and stable . Rail adopt casting structure , unit electric opening and closing .

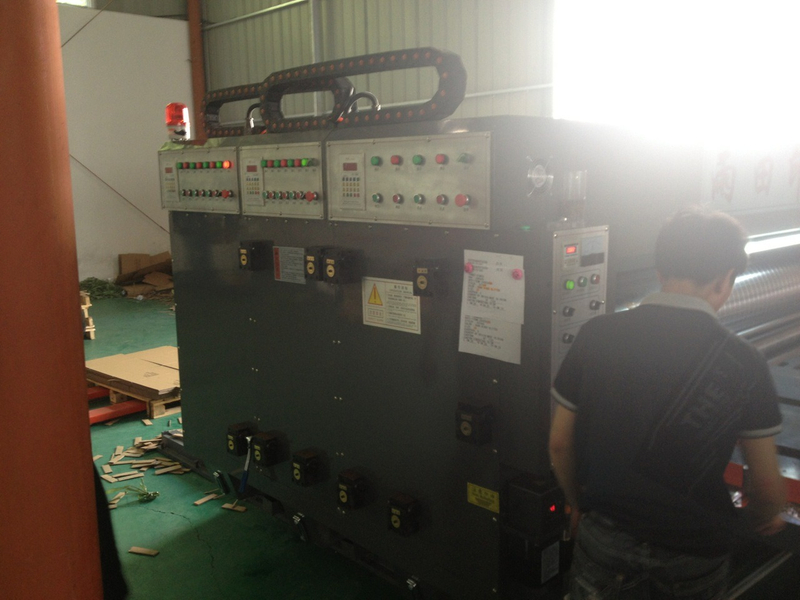

Electrical part of the main features :
domestic chint , famous people such as electrical control components , reliable operation , circuit design is reasonable , simple operation , long service li
