High Speed and Good Quality Flexo Ink Corrugated Paperboard Printing Pressing Slicing Corner and Grooving Machine

  • Single Faced

  • 6 Colors

  • Metal Anilox Roller

  • UV& IR

  • Ink Jet

  • Rotary Letterpress

  • Satellite

  • Pre Printed Carton

  • Semi-Automatic

  • 60m/min

  • 220V/380V/440V

  • 7500*3000*2200mm

  • 1.5t

  • 30days

  • Chain-Paper Pushing

  • 45# Alloy Steel

  • Optional

  • Domestic and Abroad Famous Brand

  • 360 Degree Electrical Adjust

  • 1-5colors Optional

  • Plastic Film, Container

  • Wall thickness: 50mm

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

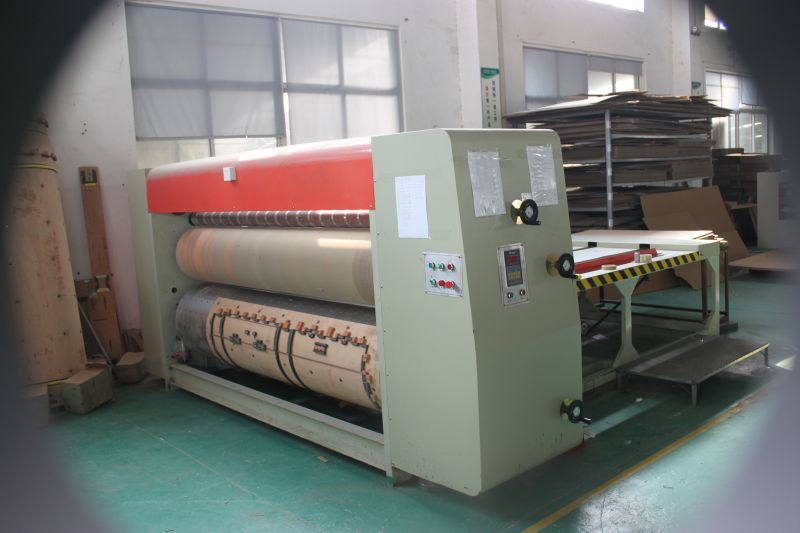

Corrugated printer Carton flexo printing slotting machine

1 Whole machine electric parts was choice the domestic famous brand, good quality and steady.

2 Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.

3 All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.

4 All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.

5 The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.

6 Option: Presetting adjustment function, feeding, printing, slotting, zero setting, memory reposition automatic.

7 Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

8 Option the vacuum adsorption, kick feeding or lead edge feeding to the customer request.

Option: Anilox roller, And stacker Machine.

Technical Parameter:

YFQ480×1800 1447×2000 1447×1800 0-60 Piece/min 5.5kw
YFQ480×2000 1447×2200 1447×2000 0-60 Piece/min 5.5kw
YFQ480×2400 1447×2600 1447×2400 0-60 Piece/min 5.5kw
YFQ480×2600 1447×2800 1447×2600 0-60 Piece/min 5.5kw

Customer visit:

Delivery pictures:

Carton box pictures:

Factory process:
