High Speed Automatic Corrugated Paper Box Folding and Gluing Machine

Share to:

High Speed Automatic Corrugated Paper Box Folding and Gluing Machine

Quantity:



Inquire Add to Basket

Type:
Shun Stick Folder Gluer
Automatic Grade:
Automatic High-Speed Folder Gluer
Driven Type:
Electric
Packaging:
Film
Main Motor:
Frequency Control of Motor
Speed:
0-130m/Min.
Model NO.:
CZXY-2600
Baffles Adjust:
Electric Adjustment
Stacking Height:
8-25 Pic
Cardboard Thickness:
2-8mm
Programmable Controller:
PLC
After Service:
Engineers Are Available Service Abroad.
Width:
2300/2600/2800mm
Weight:
6ton
Speed Adjust:
Computer Digital Adjustment
Transport Package:
Standard Abroad Packaging, Container
Specification:
computer conrol
Trademark:
CZXY
Origin:
Hebei, China
HS Code:
8441809000
Production Capacity:
10sets/Month
Customization:
Available | Customized Request

Product Description

High speed automatic corrugated paper box folding and gluing machine

Introduction:

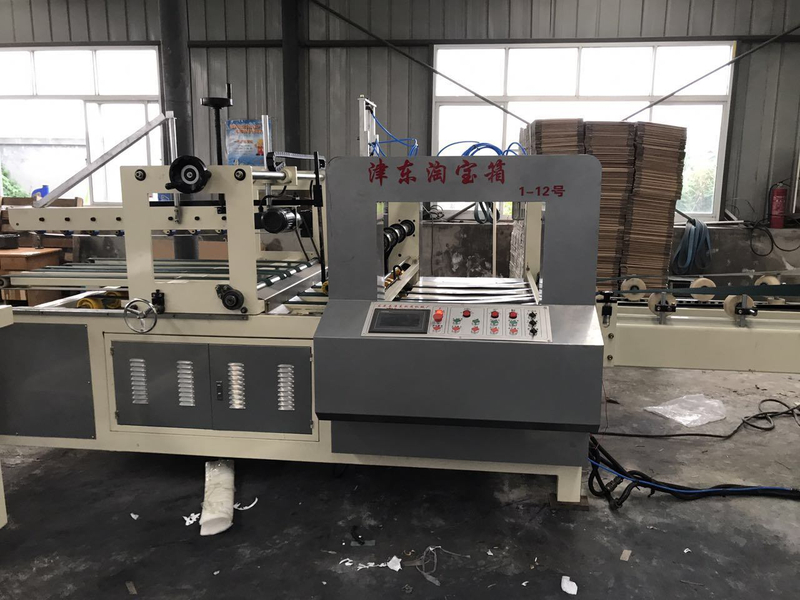

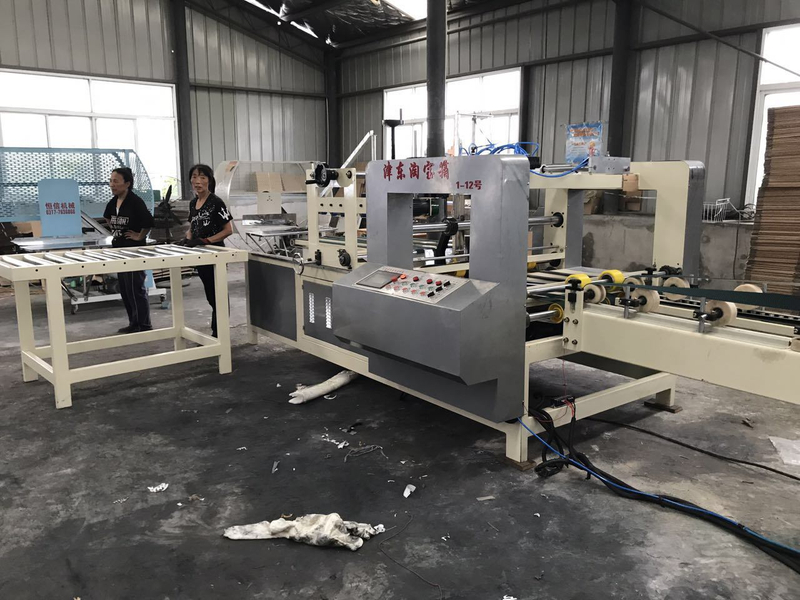

Automatic folder gluer is consist of three parts which are feeding paper part, glue folding part,and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting, automatic stacking and output. Gluing speed can reach to 150m/min, energy -saving, labor saving.

Function of each unit:
Feeding department:
1.Adopt adsorption type belt front paper feding method, accurately and stable.
2.Adopt high-grade electromagnetic cluth and electromagnetic brake system. Paper feeding department can be controlled individually. Easy operation.
3.Creasing wheel is adjustable for the thickness 2-8mm of cardboard.
4.Frequency control of motor speed with the glue folding department, has a speed of 0-130m/min.
5.Front baffle and the belts of the feeding unit can be adjusted right and left, quick adjustment of various sizes and length of cardboard box.

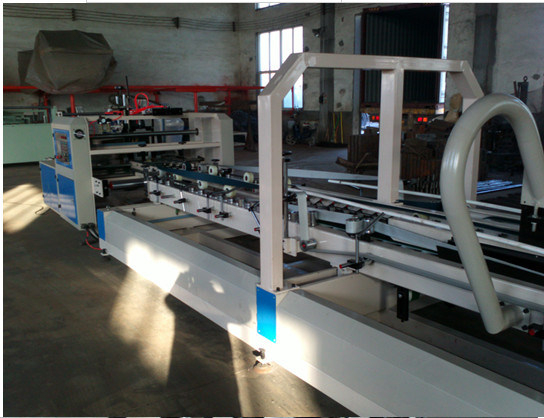

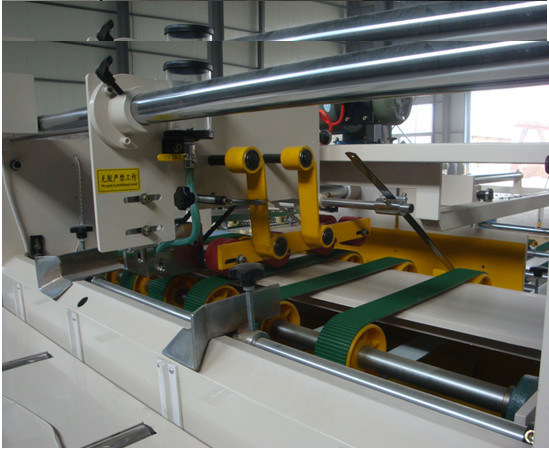

Glue folding department:
1.Main motor adopt frequency control of motor, no noise, convenient and stable.
2.Imported circular seamless docking convey belt made of high wear resistant materials ,folding of cardboard accurately and automaticly.
3.Gluing department selects high quality stainless steel gluing wheels, coating evently ,trouble free and glue saving.
4. Folding department equipped with paper corrective and creasing corrective device.
5.Folding department equipped with two rows fixed position wheel , precision shaping.
6.Folding speed 0-130m/min.
7.The right and left baffles are adjusted electrically.

Counting and stacking department
1.With PLC programmable controller and touch screen digital control ,easy operation, input data without downtime, automatic counting, stacking and output.
2. Counting department adopts frequency control, speed can be adjusted.
3.With Imported circular seamless docking convey belt, stacking trimly, has a speed of 0-130m/min.
4.With knocking system beat the paperboard, has corrective function.
5.Counting and output pneumatically ,with PLC, accuracy and fast.
6.Output department adopt upper and lower belt compressing tightly, make the carton gluing firmly and output trimly. Stacking height is 8-25 pic.

Parameter

model	LF-2300	LF-2600	LF-2800
SIZE A(mm)	80-880	80-880	80-880
SIZE B(mm)	700-2320	700-2620	700-2820
SIZE C(mm)	160-840	160-840	160-840
SIZE D(mm)	260-1050	260-1150	260-1250
Install Area(mm)	3500×14000	4000×15000	4200×16000
Motor KW	10KW	12KW	12KW
Total weight	6T	6.5T	7T
