Hebei High Speed Automatic Corrugated Sheet Board Flute Laminating Machine

Share to:

Hebei High Speed Automatic Corrugated Sheet Board Flute Laminating Machine

Quantity:


Inquire Add to Basket

Apply: Color Box Making
Max.Speed: 5000PCS/H
Model: 1300/1500/1600
Sueface Paper Feeding System: Manual Feeding
Control System: Touch-Screen/PLC/Servo Motor Control System
Max Size of Cover Face: 1300X1200mm
Precision: 1.5mm
Power: 10kw
Servo Motor Brand: Delta
Glue System: Automatic Gluing
Transport Package: Standard Plastic Packing for Abroad
Specification: 4.5ton
Trademark: CZXY
Origin: Hebei, China
HS Code: 8441809000
Production Capacity: 10sets/Month
Customization: Available | Customized Request

Product Description

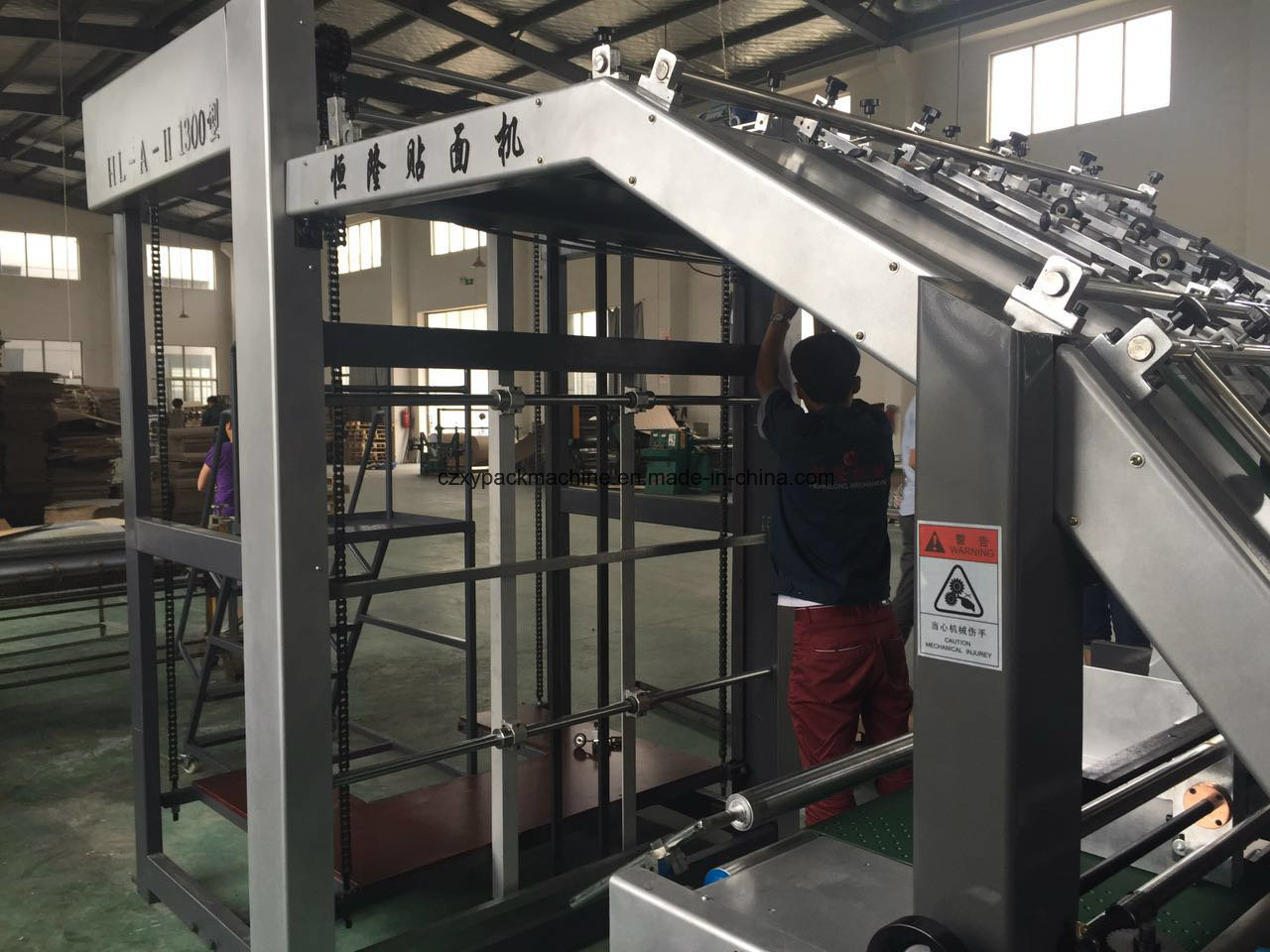

Hebei High speed Automatic corrugated sheet board flute laminating machine

Major feature:
Functions and features:

1.The top paper can pile up the height of 1.5m once time ,it makes delivery more easier and efficient.

2.Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

3.The machine operation is stable,surface paper with corrugated paper joint very Accurate.The corrugated paper never pull ahead,surface paper's location is easy adjust.

4.Machine uses touch-screen / PLC/servo motor control system, the circuit system is stable, and can automatically display the failure alarm.

5.Automatic gluing,and the giue can be used circulatory,avoid glue waste.

6.Roller design scientifically,avoid glue fly out when the speed is high.

7.Pressure rollers adopt unilateral adjustment,convenient and fast.

8.Rocker controls wash roller's fluctuation,easy cleaning.

9.Counter designs scientifically,easy recording the amount you have been worked.

Technological parameter:

Model	TMJ-1300H-II	TMJ-1500H-II	TMJ-1600H-II
Max. size	1300mmX1300mm	1500mmX1300mm	1600mmX1300mm
Min size.	360mmX360mm	360mmX360mm	360mmX360mm
Economic speed	0-100 piece/min	0-100 piece/min	0-100 piece/min
Precision	±1mm	±1mm	±1mm
Power	9.5kw	9.5kw	9.5kw
Size	8.8m x 1.95m x 1.7m	8.8m x 2.15m x 1.7m	8.8m x 2.25m x 1.7m
Weight	About 4 T	About 4.5T	About 4.5T
