Product Description

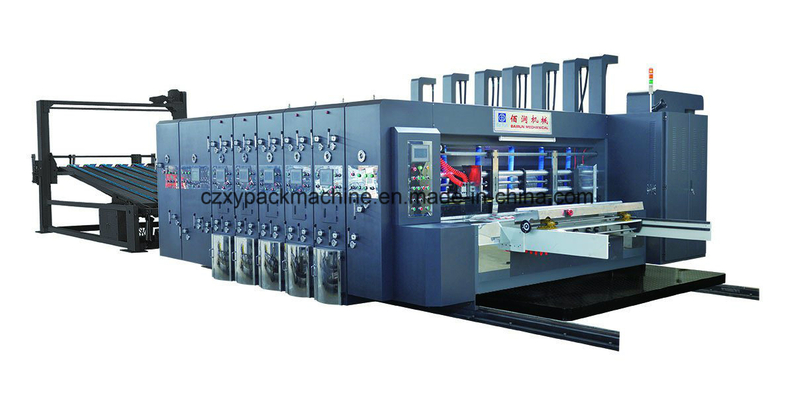

Corrugated carton box packaging making machine
Function of the machine:
1.The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable.Man-machine inter
-face.Multi-set touch screen control,computer order management,easy to operate.Replace the order faster(can be stored 999 orders in advance)
2.Whole wallboard and important components are adopted aging treatment,eliminate the metal internal stress;Adopt high precision centers,CNC
grinding machine for grinding processing.
3.The machine shaft,roller are adopted high quality steel,grinding processing,high precision computer dynamic balancing correction and surface
hard chromium plating.
4.The engine gear is adopted 40Cr,Fine grinding and become,it can achieve the precision of six levels.
5.The machine drive bearing,impertant driving parts adopt international brand bearing,simple maintenance,long service life,the printing roll elecric
moves across.
6.The engine lubrication system is adopted automatic spray type lubrication,Equipped with antomatic balancing device,keep the oil in every units
at the same level.
7.The machine is adopted adjustment preset functions,feeding,printing,slotting,die-cutting,automatic zero resetting,separate and combine memory
automatic reset.
8.The main motor is adopted frequency conversion control.It makes start,running more steadily and saves more energy.
9.There is lack of ink alarm device and the real-time monitoring for the ink working condition system.
10.Optional:ceramic anilox roller,doctor blade and set ink system ,stacking machine,Make the printing more clearer.
11.Optional:The entire vacuum adsorption delivers the paper system.Glazing unit and drying unit for opting.
Parameter:
Name of parameter | Unit | Specification |
GYK1270*2600 | GYK1450*2800 | GYK1700*3000 |
Inside width of machine | mm | 2600 | 2800 | 3000 |
Design speed | Piece/min | 180(lead edge) | 180(lead edge) | 180(lead edge) |
Max size of feeding paper | mm | 1200*2400 | 1400*2600 | 1650*2800 |
Min size of feeding paper | mm | 380*650 | 420*650 | 500*650 |
Feeding paper by partition | mm | 1600*2400 | 1600*2600 | 1900*2800 |
Max printing area | mm | 1200*2200 | 1400*2400 | 1650*2600 |
Precision of color process(double/three/four/five color) | mm | ±0.5/±0.5/±0.75/±0.75 | ±0.5/±0.5/±0.75/±0.75 | ±0.5/±0.5/±0.75/±0.75 |
Thickness of standard printing | mm | 7.2 | 7.2 | 7.2 |
Thickness of printing paperboard | mm | 3-11 | 3-11 | 3-11 |
Min slotting space | mm | 320*50*320*50 | 320*50*320*50 | 320*50*320*50 |
Max slotting depth | mm | 300 | 360 | 420 |
Printing roller axle circle-oriented regulating | degree | 360°revolving | 360°revolving | 360°revolving |
Printing roller axle-oriented regulating | mm | ±10 | ±10 | ±10 |
Max die-cutter size | mm | 1200*2250 | 1200*2450 | 1200*2650 |
Die-cutter thickness | mm | 3-8 | 3-8 | 3-8 |
Total power(double/three/four/five color) | Kw | 20/25/30/35h | 40/50/54/63 | 40/50/54/63 |
Feeder:
- Leading edge feeding paper system, simple operation, high precision. Gear of gear box adopts the same grade material with vehicle transmission.
- The 7.5kw high pressure centrifugal fan, can control wind pressure with frequency conversion according to the cardboard warp degree, ensure the warp and thin cardboard transmit fast and accurately.
- About side clapboard position is drived by lead screw electric adjustment.
- In front clapboard upper and lower gap position, synchronization regulation is optional.
- With the paper-feeding partition device, you can choose partition feeding paper according to need, to guarantee larger specification cardboard can also be processed.
- Slotting department is loaded with interconnection controlling switch, which can realize sudden stop, stop feeding or return feeding.
Printer:
- The phase is 360°adjusted by electric wheel planetary, keyless connection
Foot switch is installed, and convenient to load and unload. - The plate roller axial can be adjusted position by electrically and manually, move range:0-10mm.
- Good quality metal anilox roller manufactured by professional factory.
- Drum-type rubber roller manufactured by professional factory ensures the quality of ink distribution.
- Pneumatic circular ink-supplying system.
- Optional for ceramic anilox roller.
- Max printing area:1200*2600mm
- Whole plate hang plate, suitable for standard plate strips.

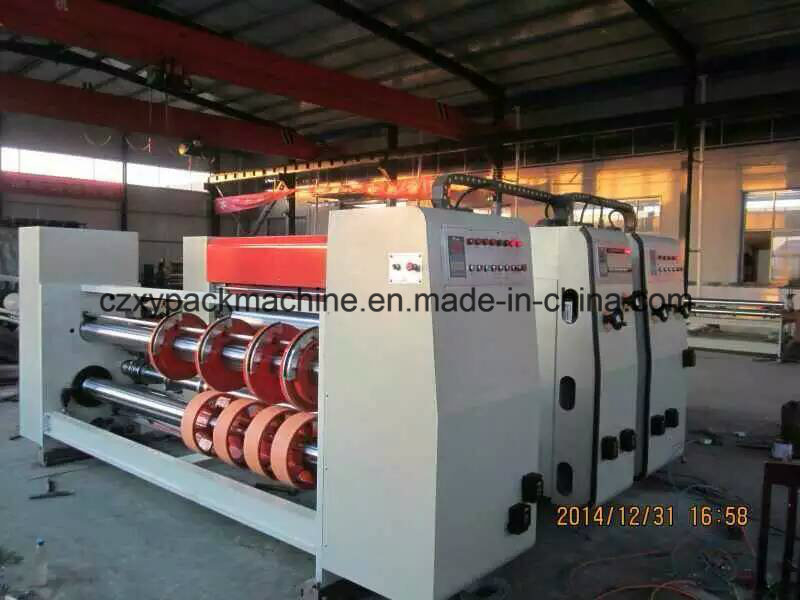

Slotter:
- With pre-creasing wheels for prevent the cardboard rupture while creasing.
- Single axis dual blade slot, four blade increase simultaneously the case height.
- The phase of slotting unit adopts electric digital input type 360°adjust, also can be adjusted while the machine running or stop.(PLC and touch screen adjustment is optional)
- Slotting tool apron and creasing wheel horizontal moving adopts electric synchronous adjustment.
- Creasing space and blade roller space adjustment adopts self-lock structure.
- The case height adjustment has an anticollision device for slotting blade, will not destroy the machine.
- An anticollision device is used while slotting tool apron horizontal moving.
- The width of slotting blade is 7mm, adopts alloy steel material and after heat treatment and grinded, gear slotting knife, douple-piece type cutting knife, sharp edge, and high precision.

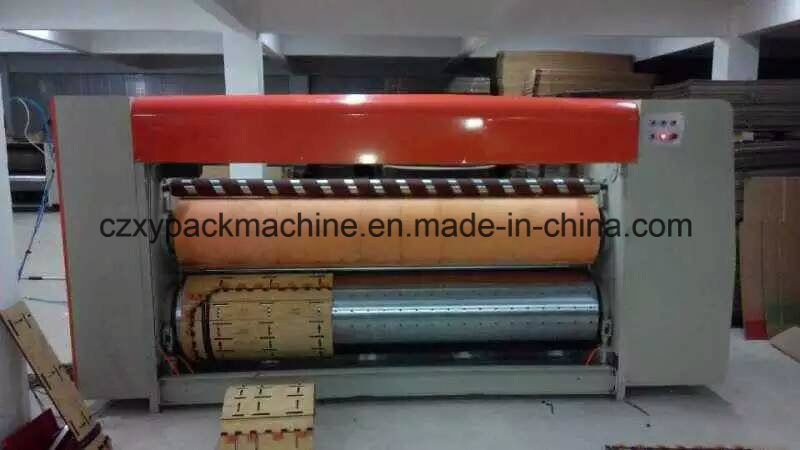

Die-cutting:
- Youli cushion imported from Taiwan.
- Double-warm abrasive belt cushion correction facility.
- Cushion axial floating automatically to improve the utilization rate of cushion.The range of floating is 0-20mm(from middle to left or right)
- Speed difference self-compensating function.
- The axial adjustment of platen roller is electric/manual, range:0-20mm(left to right )
- Die-cutting phase is adjusted by electric planet gears, keyless junction.
Delivery Pictures:
Carton box pictures:
Factory Manufacture Process:
