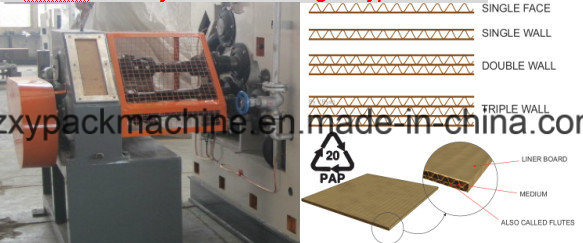

Czxy-280s Fingerless Type Single Facer

Quantity:
  • New
  • CE
  • Automatic
  • Paper
  • Thick Paper
  • Steam Heating/ Electric Heating
  • CZXY-280S
  • 1400mm-2500mm
  • 3/5/7 Optional
  • 120m/Min
  • 60-100m/Min
  • Vacuum Absorbable
  • Acbe as Customer Requirements
  • 280
  • Imported Famous Brand
  • Plastic Film Wrapping Outside, Container
  • Corrugated type: A, B, C, E Optional
  • CZXY
  • Cangzhou City, Hebei Province
  • 8441809000
  • 3-5sets/Month
  • Available | Customized Request

Product Description


Corrugated paper making automatic grade packaging machinery
Corrugated Paper Making Automatic Grade Packaging Machinery

Glue Rollers:
Diameter Φ215mm
Processing Way Surface of glue roller is grinded,
then with 25 line rut type net dot,then plating chrome
Surface of glue banlance roller is grinded then plating chrome
Control Way Pneumatic cylinder control of the Lifting Up-down

Corrugated Rollers:
Diameter Φ280mm
Material 48CrMo high quality alloy steel,rigidity HRC60°
Processing Way Through hardening and tempering→inside hold boring→roller heading connecting→weld→tempering to low the stress→ meticulous turning→rough grinding→mid frequeney induction hardening→Nc meticulous grinding→chrome plating.
Flute Type (U/V) ACBE as customer's requirements

Press Rollers:
Diameter Φ284mm
Material medium steel (MS)45#
Processing Way The surface is grinded then plating chrome,
hardening and tempering(With Buffer)
Control Way Penumatic cylinder control of the Lifting Up-down

Preheater Rollers:
Diameter Φ320mm
Material seamless steel tube
All connected by flexible metallic tubes

Transmission
About gear Close style gear transmission oiliness lubricated,
long use life of gear

Common Spec :
Machinery Speed KnightΦ280:100 m/min
Width of Paper 1400mm
Style of Transmit cardboard Vacuum Cover adsorbable style,
Hight pressure Draw fan.with wind control Adjusting & noise deadening device.
Style of Control Roller Pneumatic control the upper roller, pressure roller and glue roller
Lubrication Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller's gears
Power 7.5 kw
Pneumatic & Electric control systems are in one operation counter,
Distance between main machine no less than 1.5m
Wallboard: cast iron,thickness:130mm

Working width: 1400 mm Operation Direction: Left or right (decided by the workshop of customer)
Temperature: 160-200ºC Air pressure: 0.4-0.9Mpa Steam Pressure: 0.8-1.3Mpa

Spec of Motor :
Draw Fan Motor: 7.5 kw Nominal voltage: 22 0V 6 0Hz Continuous (S1) working Type
Main Motor: 7.5 kw Nominal voltage: 22 0V 6 0Hz Continuous (S1) working Type
Box Producing Process:
Corrugated Paper Making Automatic Grade Packaging Machinery

Factory Manufacture Process:
Corrugated Paper Making Automatic Grade Packaging Machinery
Corrugated Paper Making Automatic Grade Packaging Machinery
Customer Visit:
Corrugated Paper Making Automatic Grade Packaging Machinery

Delivery Pictures:
Corrugated Paper Making Automatic Grade Packaging Machinery

Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
