3ply Corrugated Cardboard Making Machine

Quantity:
  • New
  • CE
  • Automatic
  • Paper
  • Thick Paper
  • 360mm
  • CZXY-2200-360mm
  • 2200mm
  • 150m/Min
  • Gimbal Driver System
  • Vacuum Absorbable Feeding
  • Steam Heating
  • 48crmo High Quality Alloy Steel
  • 400mm
  • Controller by Hydraulic Cylinder
  • (U/V) Acbe as Customer’s Requirements
  • Plastic Film Wrapping Outside, Container
  • diameter 360mm
  • CZXY
  • Cangzhou City, Hebei Province
  • 8441809000
  • 10 Sets/Month
  • Available | Customized Request

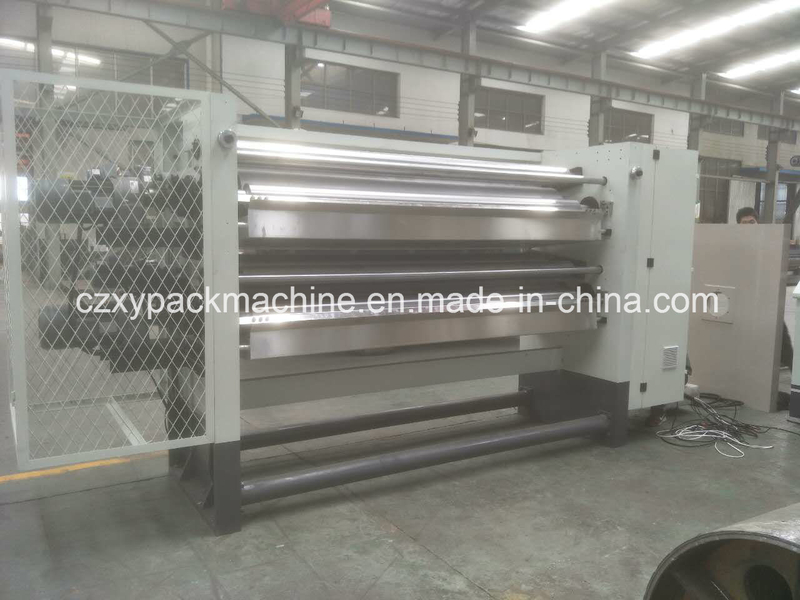

3ply Corrugated cardboard making machine

3ply Corrugated Cardboard Making Machine


Feature:

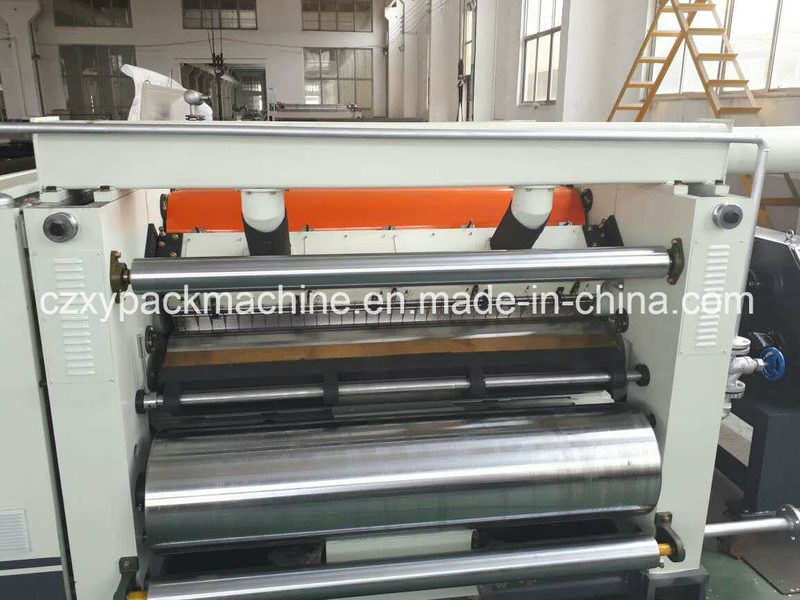

. Upper corrugating roller lift-down controller by two hydraulic cylinder.
Cylinder with magnetic valve button & hydraulic station control pressure roller
. Gluing group: Advance and retreat of the glue roller house is control by two pneumatic cylinders.
. Adjust glue thickness: Quantity of pasting glue and control glue is control by the clearance between glue roller and doctor roller adjustment and the inter-face appear control, figure show gluing details.
. Adjust advance and retreat of glue roller and pressure roller clearance: The electric motor drive cam micro-adjust, and display the adjusting quantity on inter-face by the motor.
. Adjust pressure roller clearance: The electric motor drive cam micro-adjust, and display the adjusting quantity on inter-face by the displacement sensor.
. Main drive part: Main drive with the separate gear box to shift drive, gear is made from high quality alloy steel and the dip oil type, low noise, long life.
. Driving part details: The gear box transfer the kinetic energy to the three rollers (upper, down corrugated roller and pressure roller) through the universal transmission shaft. The structure ensures the stable performance, easy and fast to maintenance.
. Gluing roller idle running part: gear reducer motor,avoid glue dry on roller when machine paused.
. Add three steam turning tie-ins, steam tube and one backwater equipment.
. The iron blank on top of machine can separate disconnect to clean garbage inside, not need disconnect whole machine.
.The axis of upper, down corrugated roller and pressure roller adopt the resistant high temperature oil to lubricate

Gimba l driver system. Individual gear type drive box

3ply Corrugated Cardboard Making Machine


Technical parameters:
1.Working width: 22 00mm
2,Operation side:left or right(depends on customer's factory)
3, Design speed:1 5 0m/min
4,Temperature Control:160-200ºC
5,Gas:0.4-0.9Mpa
6,Steam pressure:0.8-1.3Mpa
7,Corrugated type(UV or UV V)

Roller diameter:
1.Main corrugated roller: ¢3 6 0mm
2,Pressure roller: ¢3 6 4mm Gluing roller242mm
3,Pre-heater roller40 0 mm
Box Producing Process:
3ply Corrugated Cardboard Making Machine

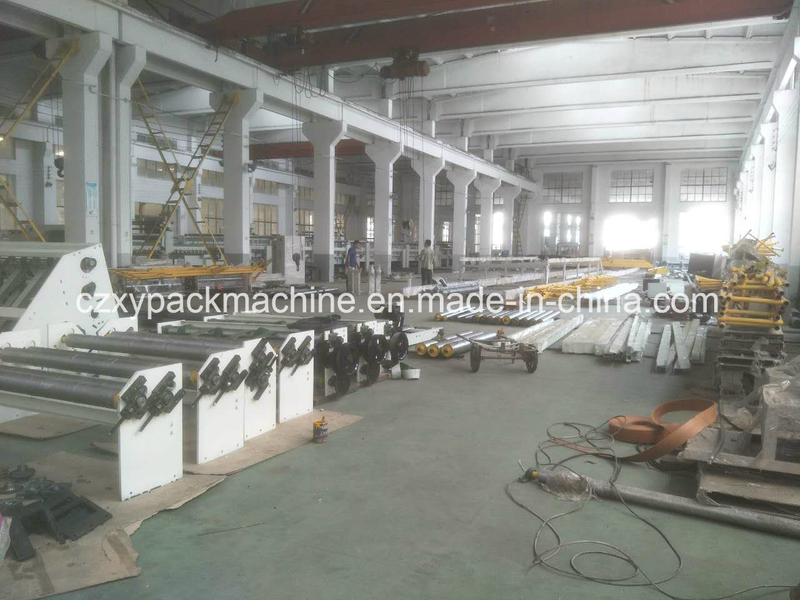

Factory Manufacture Process:

3ply Corrugated Cardboard Making Machine

Customer Visit:
3ply Corrugated Cardboard Making Machine


Related Products:
3ply Corrugated Cardboard Making Machine
