Chain Feeding Flexo 4 Colors Printing Slotting Die Cutting Machine

Chain Feeding Flexo 4 Colors Printing Slotting Die Cutting Machine


Use and performance

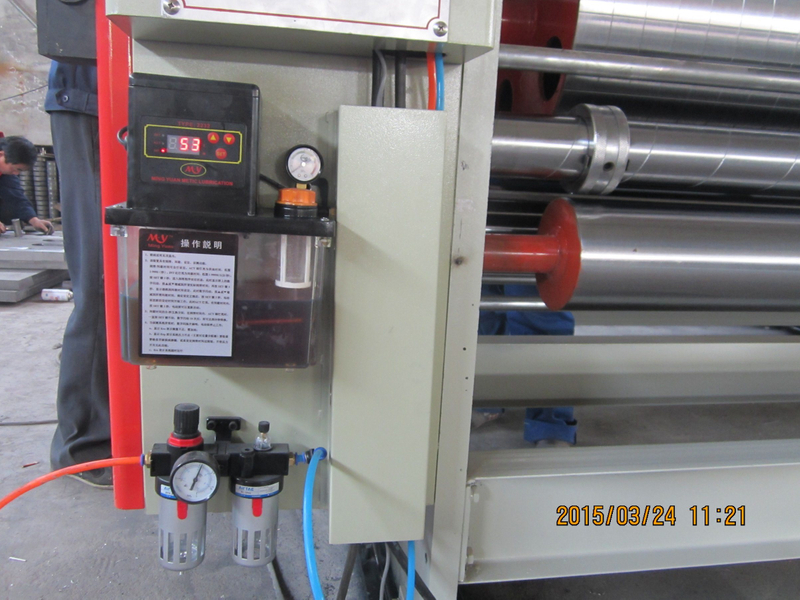

1. Circulating oil lubrication system and others printing machine structure .
2. Wallboard 4 0 mm thick cast iron material
3. All the drive roller , shaft fine grinding , hard chromium plating processing .
4. Automatic cycle to the ink system , pneumatic diaphragm pump , ink stability , simple operation and maintenance . Ink filter , filter impurities , ink separation . Cleaning is easy to operate , so the ink volume can be adjusted trace . Ink roller can be rising and separate pneumatic rotation , to prevent downtime when the ink dries up , ink roll and convenient cleaning .
5. Gear no gap adjusting device , make cardboard run more smoothly , printing design more clearly not double .
6. Printing and phase structure of planetary gear electric digital phase controller 360 degrees adjustment ( run and stop are adjustable ), position can be adjusted to the first set , long service life and easy to adjust accurately .
7. Drive gear adopt 40 Gr , shaving , quenched and tempered treatment ( high hardness , good wear resistance ), according to the requirements of high precision processing and manufacturing , and cross slide block connections , and USES the spray lubrication mechanism , long service life , low noise , smooth operation , ensure the accuracy of tinted .
8. Each unit electric points , pneumatic locking , relax . With alarm , warning light tip more can improve the safety of the operation .
9.front and back is equipped with urgent stop switch and control in the paper feeding.
10.CAD Design modules can be any combination of multicolor printing unit .
11. With automatic counting device , it can display properly production number , and host automatically stop after complete the preset number .

.Parameter:
III . Main Configurations and parameters of machines
Paper feeding department
1. Workbench use chain plate feeding way , the manual sheet paper to adapt to the cardboard wide ly and general warping board are applicable .
2. F ront and back axle 35 mm , three points fixed , operate smoothly.
3. The chain firmness adjusting mechanism .
4. Attach paper pressure device , make the warp cardboard fe e d into paper axis smoothly .
5. Overprint adjusting mechanism is convenient and quick adjustment plate and cardboard position .

Printing department
1. Upper paper feeding roll diameter 86 mm , paper feeding wheel outer diameter 12 0 mm .
2.Lower paper roll 155 mm , fine grinding hard chromium plating , 14 mm wall thickness .
3. Roller clearance between upper and lower roller a dopt the sliding block structure and adjusting range 0 to 10 mm .
4.Printing roller:
(1) External diameter is Ø 398 mm(diameter is Ø 405 mm including plate)
(2) Surface grinding, hard chromium plating.
(3) Surface interval 50 mm delimit scale line , convenient version .
5. Phase adjusting mechanism :
(1) Electric planet gear , which can realize adjusting roller circumferential 360 degrees , digital display , intuitive and accurate .
(2) Axial adjusting mechanism can make the version of the roll around adjust the total of 100 mm . ( 5 mm unilateral )
6. Printing pressing roller
(1) External diameter is Ø1 55 mm , wall thickness 14mm
(2) Grinding, hard chromium is plated on steel tube surface.
(3) Roller clearance adjustment a dopt the sliding block structure , and adjusting range 0 to 1 2 mm .
7. Metal Anilox Roller
(1) External diameter is Ø1 75 mm , wall thickness 22mm.
(2) Steel tube surface through special processing after carving checker ( 180-250 line option )
(3) Network is consistent , uniform inking , durable .
8. Rubber Roller
(1) External diameter is Ø1 65 mm , wall thickness 22mm.
(2) Steel tube surface parcel wear-resisting rubber . ( 20 mm wall thickness )
(3) High special grinding , ink transfer effect is good .
(4) Ink loop adopts pneumatic diaphragm pump , ink stability , simple for operation and maintenance .
(5) ink mesh filter impurities , to protect network roll .

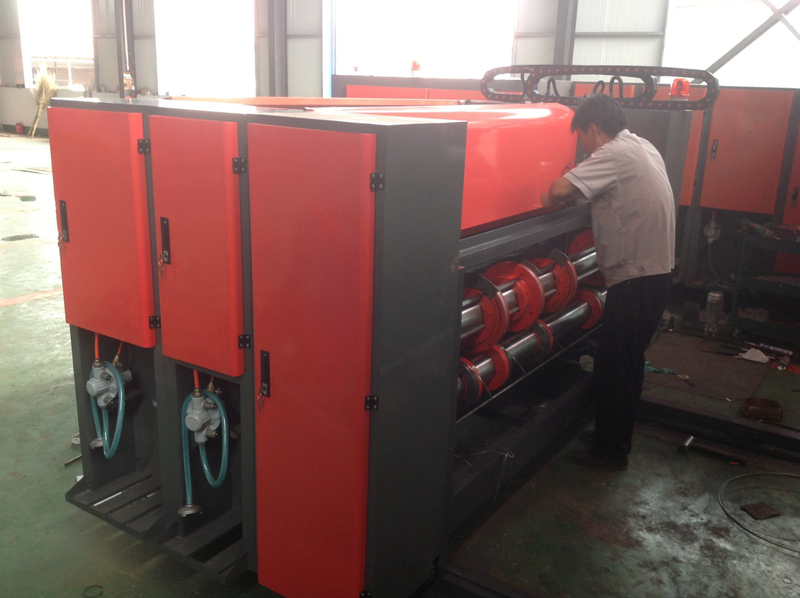

Slotting department
1.Upper knife shaft diameter 1 5 6 mm , the lower knife shaft diameter 156 mm , surface grinding hard chromium plating , balance correction , smooth operation .
2. Line pressing wheel clearance manual adjustment , dial display adjustment data .
3. Slotting knife width is 7 . 0 mm . Alloy steel material , after heat treatment type grinding gear slotting knife 4. Slotting knife gap worm gear box to adjust , dial , according to adjust the range of 0-11 mm .
5. Slotting phase adjusting mechanism , planetary gear structure
6. Slot electric digital phase using phase controller 360 degrees adjustment ( motion and stop all can be adjusted ).
7. Manual sync adjusting box height.
8. Line pressing roller diameter and 110 mm , thick wall seamless steel tube is made of high quality , fine grinding hard chromium plating on the surface of dynamic balancing correction and computers . Line pressing wheel diameter ф 176 .

Transmission gear
Using 40 cr material , thickness of 50 mm , tempering gear shaving processing , hardness of HRC50-55 degrees , high wear resistance , convenient maintenance characteristic .

Rack body
The body adopt the HT - 200 material , thickness of 40 mm , shock absorption performance is good , braced with gb channel steel , solid and stable . Rail adopt casting structure , unit electric opening and closing .

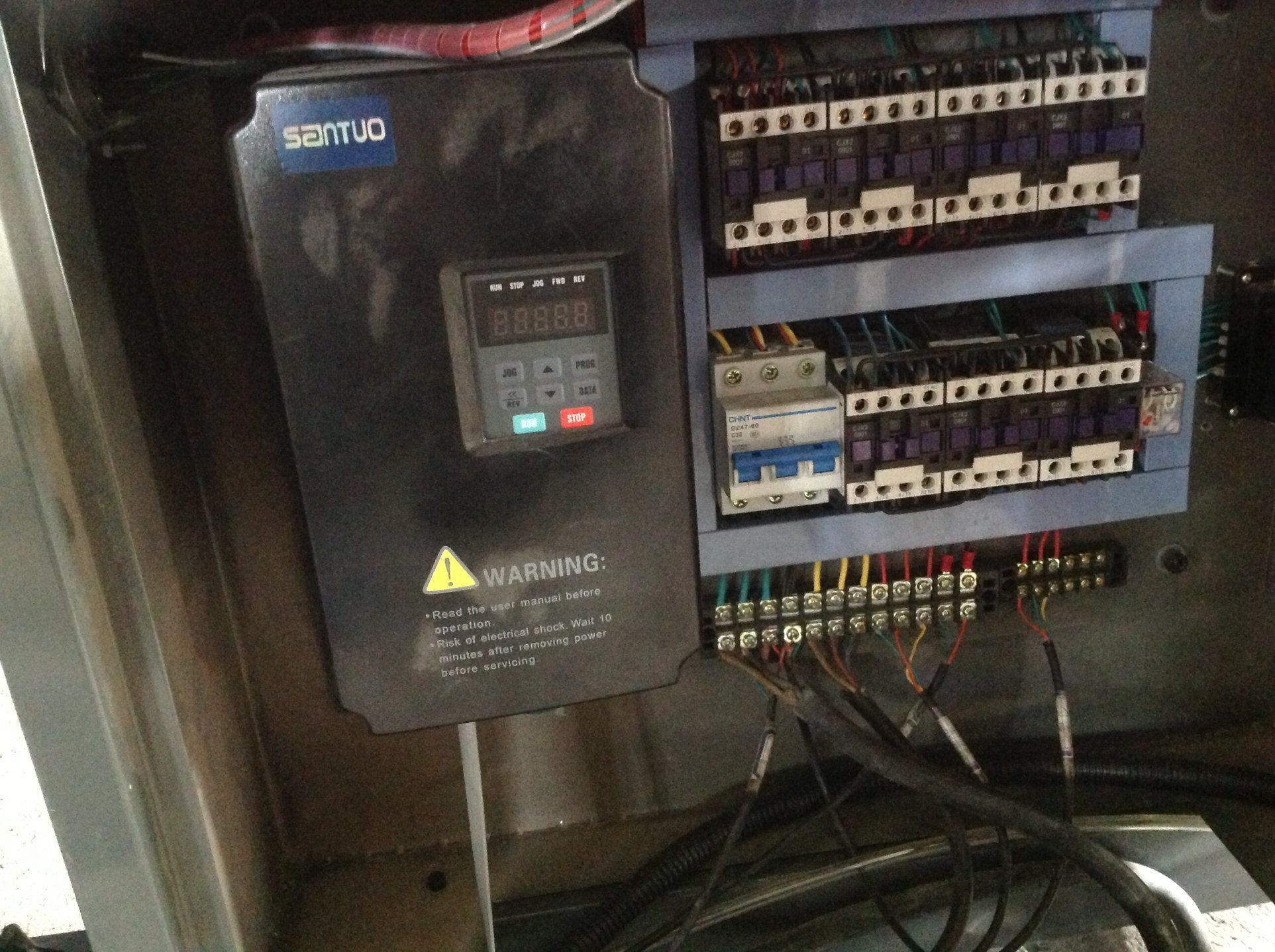

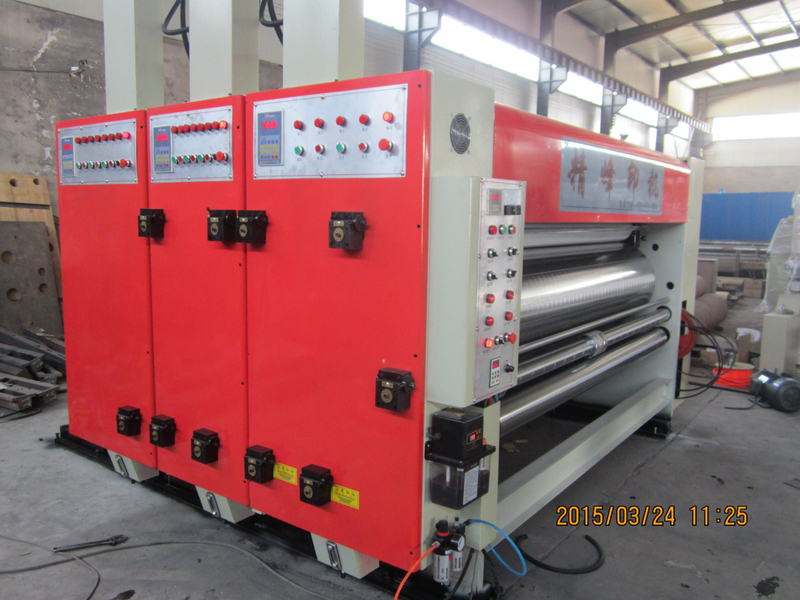

Electrical part of the main features :
domestic chint , famous people such as electrical control components , reliable operation , circuit design is reasonable , simple operation , long service li
