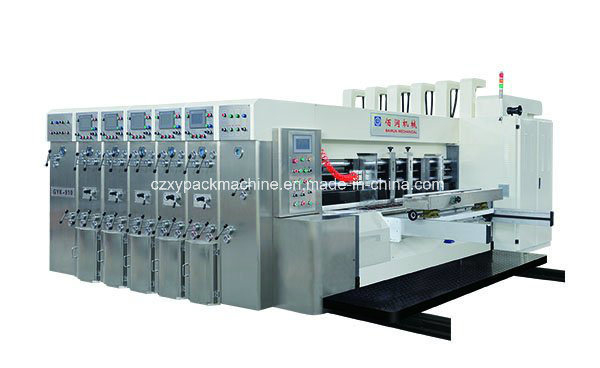

Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding

Quantity:
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding
  • 7500X4500X2400

  • 220V/380V/440V

  • Engineers Available to Service Machinery Overseas

  • Pneumatic Diaphragm Pump

  • Computer 360 Degree

  • Printing, Slotting and Cutting

  • One Year

  • Schneider

  • Simens

  • Planetary

  • Plastic Film, Container

  • customized as customer need

  • CZXY

  • Hebei, China

  • 8441809000

  • 10sets/Month

  • Available | Customized Request

automatic cardboard flexo printing die cutting machine with auto feeding


Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding

Automatic Cardboard Flexo Printing Die Cutting Machine with Auto Feeding

I . Use and performance

Function and characteristics:

1The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (adoption).

2Straight gear drive.The gears are after high frequency quenching and grinding

3All the rollers are plated with chromium to encrease their hardness.

4Spray circulated oil lubrication.

5Return to zero and adjust printing plate automatically.

6Module-designed. Multicolor printing sections can be combined as your requests.

7The side baffle of feeder and slotter are all adjusted electrically.

8PLC, touch screen and frequency-variable controller are adopt,accurate and reliable.

Feeding-unit:

1Lead edge feeding type, and back kick feeding type.

2Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

Printing unit:

1The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.

2Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.

Slotting unit

1.The function of the double shaft slotting unit(Adopt units). Big size carton box or kicking paperboard slitting can save loading knife time.

2.Slotting phase and the height carton box adjusting, computer and the electrical number can be controlled.

3.Line wheel, slotting knife a move transversely adjustment, computer and electric control.

Die-cutting unit

The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.

Stacker unit

1.Installed with safeguard mechanism the paper-receiving arm can be operated by hand or automatically in order to prevent the sudden falling down of the paper-receiving arm for the safety of the operating personnel.

2.The rising and descending of the machine tool platform is driven by the powerful chain.

3.The hight of piling is 1600mm.

4.The surface corrugated belt can prevent the sliding of the paperboard.

Main Parameters:

parameter

unit

GYK910×1800

GYK1270×2400

inner width

mm

2000

2600

max speed

sheets/min

160

160

max feeding size

mm

910×1800

1270×2400

min size of feeding

mm

280×600

350×700

feeding break

mm

1100×1800

1600×2400

max printing area

mm

840×1640

1200×2240

precision of printing

mm

±0.75

±0.75

thickness of standard plate

mm

7.2

7.2

thickness of board printed

mm

3-9

3-9

min slot space

mm

190×50×190×50

190×50×190×50

max depth of slot

mm

210

300

radial adjust

degree

360°

360°

axial adjust

mm

±10

±10

gross power

kw

18.5

22

outer size

mm

6500×3230×2000

7500×4500×2400

total weight of machine

about kg

16000

20000

Carton box pictures:
