Automatic 4 Colors Printer Slotter Die Cutter Machine for The Carton Box

Share to:

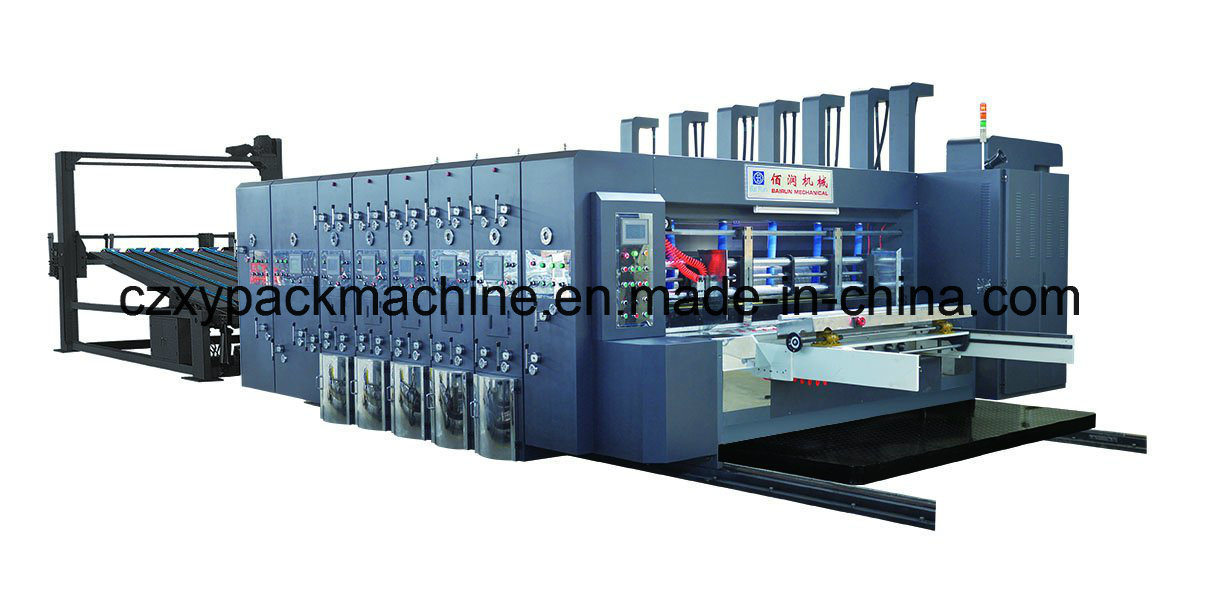

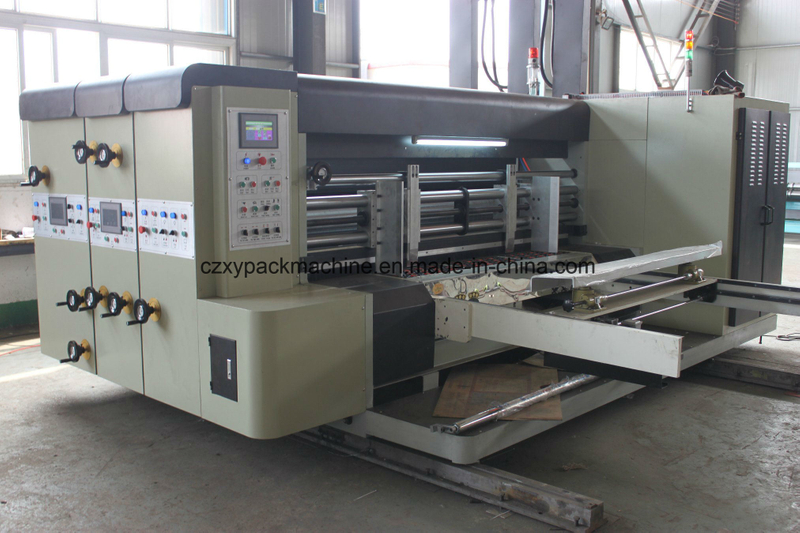

Automatic 4 Colors Printer Slotter Die Cutter Machine for The Carton Box

Quantity:



Inquire Add to Basket

Voltage:
380V/440V as Required
Speed:
120-200 Piece/Min
Gear:
Grinding
Power:
50Hz
Color:
1-5color Optional
Slotting and Die Cutting:
Both Can Be Optional
Model NO.:
CZXY-910x2200 4
Structure:
Satellite
Weight:
27000kg
Warranty:
One Year
Electirl Parts:
Schneider
Transport Package:
Plastic Film, Container
Specification:
Wall thickness: 50mm
Trademark:
CZXY
Origin:
Hebei, China
HS Code:
8441809000
Production Capacity:
10sets/Month
Customization:
Available | Customized Request

Product Description

Automatic 4 colors printer slotter die cutter machine for the carton box

I . Use and performance
1. Computer control can be used to store orders, change orders faster, more convenient operation.
2. PLC, touch screen control, system reliability, low failure rate, easy to understand, easy to operate.
3. All transmission rollers are made of high quality steel, hard chromium plating, surface grinding and dynamic balance.
4. Oil automatic balancing device to keep the unit oil at the same level.
5. The main transmission gear is made of alloy steel (40Cr), which is made of hardened and tempered gear. The precision is 6. The planetary wheel is made of carburizing alloy steel, and the hardness is 58-62.
6. All gaps are adjusted using self locking mechanism to make the adjustment more efficient, convenient, accurate and reliable.

Parameter:

1	Type	MM	910X2200
2	Max speed	Pcs/min	120
3	Max paper size	MM	840X2000(Continuous paper)
4	Min paper size	MM	350*600
5	Interval Sheet feed size		1100X2000
6	Max printing area	MM	840X1800
7	Max slotting area	MM	840X1800
8	Min slotting size	MM	380
9	Wall plate thickness	HT200	50mm
10	Feeding precision	MM	±1.0
11	From the first printing to the last set of overprint accuracy	MM	±1
12	Printing roller diameter	Φ	300(include printing plate)
13	Main motor power	15KW
14	Production power	26KW
15	Total power	33KW
16	Supply current		200A

Feeder:

Leading edge feeding paper system, simple operation, high precision. Gear of gear box adopts the same grade material with vehicle transmission.
The 7.5kw high pressure centrifugal fan, can control wind pressure with frequency conversion according to the cardboard warp degree, ensure the warp and thin cardboard transmit fast and accurately.
About side clapboard position is drived by lead screw electric adjustment.
In front clapboard upper and lower gap position, synchronization regulation is optional.
With the paper-feeding partition device, you can choose partition feeding paper according to need, to guarantee larger specification cardboard can also be processed.
Slotting department is loaded with interconnection controlling switch, which can realize sudden stop, stop feeding or return feeding.

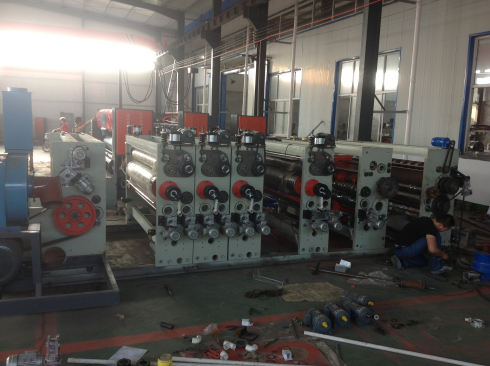

Printer:

The phase is 360°adjusted by electric wheel planetary, keyless connection
Foot switch is installed, and convenient to load and unload.
The plate roller axial can be adjusted position by electrically and manually, move range:0-10mm.
Good quality metal anilox roller manufactured by professional factory.
Drum-type rubber roller manufactured by professional factory ensures the quality of ink distribution.
Pneumatic circular ink-supplying system.
Optional for ceramic anilox roller.
Max printing area:1200*2600mm
Whole plate hang plate, suitable for standard plate strips.

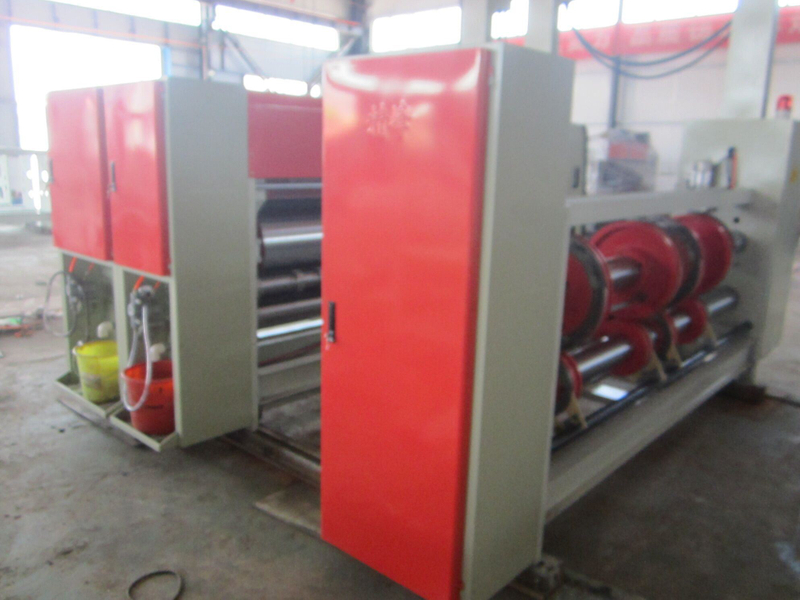

Slotter:

With pre-creasing wheels for prevent the cardboard rupture while creasing.
Single axis dual blade slot, four blade increase simultaneously the case height.
The phase of slotting unit adopts electric digital input type 360°adjust, also can be adjusted while the machine running or stop.(PLC and touch screen adjustment is optional)
Slotting tool apron and creasing wheel horizontal moving adopts electric synchronous adjustment.
Creasing space and blade roller space adjustment adopts self-lock structure.
The case height adjustment has an anticollision device for slotting blade, will not destroy the machine.
An anticollision device is used while slotting tool apron horizontal moving.
The width of slotting blade is 7mm, adopts alloy steel material and after heat treatment and grinded, gear slotting knife, douple-piece type cutting knife, sharp edge, and high precision.

D ie-cutting:

Youli cushion imported from Taiwan.
Double-warm abrasive belt cushion correction facility.
Cushion axial floating automatically to improve the utilization rate of cushion.The range of floating is 0-20mm(from middle to left or right)
Speed difference self-compensating function.
The axial adjustment of platen roller is electric/manual, range:0-20mm(left to right )
Die-cutting phase is adjusted by electric planet gears, keyless junction.
