Auto High Speed and Profession Flexo Ink Corrugated Paperboard Printing Pressing Slicing Corner Grooving Machine

  • Single Faced

  • 6 Colors

  • Metal Anilox Roller

  • UV& IR

  • Ink Jet

  • Rotary Letterpress

  • Satellite

  • Pre Printed Carton

  • Semi-Automatic

  • 60m/min

  • 220V/380V/440V

  • 7500*3000*2200mm

  • 1.5t

  • 30days

  • Chain-Paper Pushing

  • 45# Alloy Steel

  • Optional

  • Domestic and Abroad Famous Brand

  • 360 Degree Electrical Adjust

  • 1-5colors Optional

  • Plastic Film, Container

  • Wall thickness: 50mm

  • CZXY

  • Hebei, China

  • 8441809000

  • 15sets/Month

  • Available | Customized Request

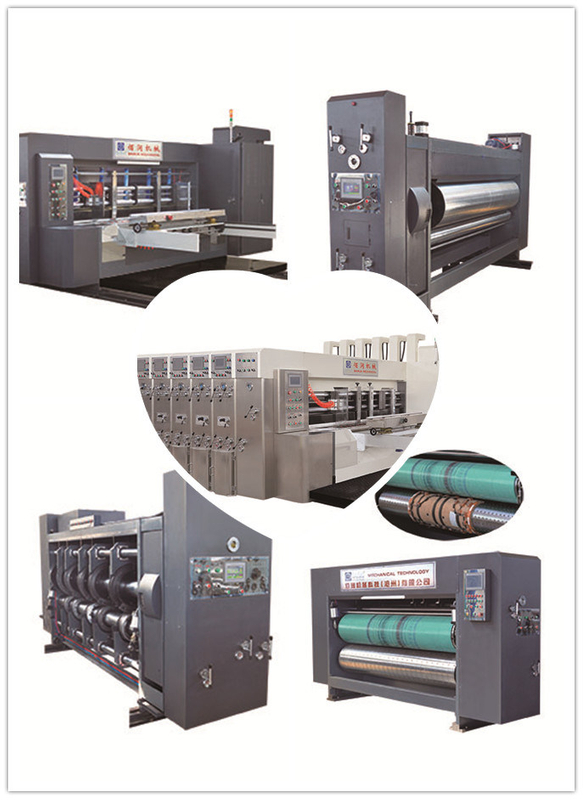

YSKG 1200X2800 4 color flexo printing &rotary die cutting machine
.Use and performance
1.The whole machine electrical appliances adopt famous brand.
2.The transmission gear of the machine adopts 40Gr to be quenched and tempered.
3.All axes are treated with chromium plating to enhance the surface hardness.
4.The gear adopt circular spray lubrication drive.
5.The host adopt frequency conversion control.
6.Module design, any combination of multicolor printing unit.

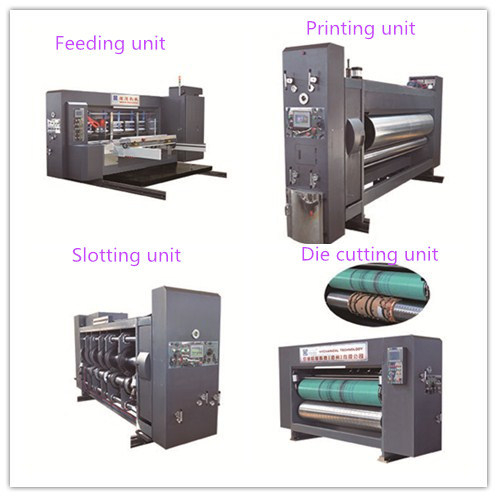

.Main mechanical functions configuration and technical parameters

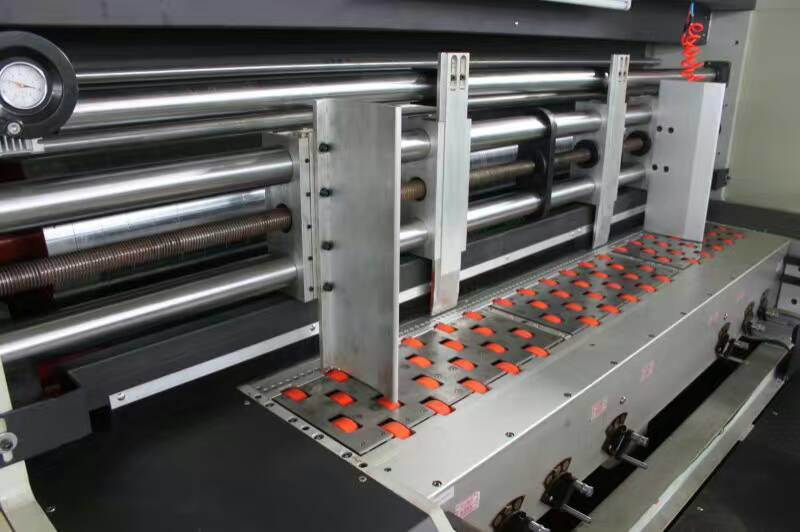

Paper feeding department
A.Front edge feeding system.(Can also be equipped with light pressure, or pressure free front paper feeding mechanism)
  1. Three axis front feed, increase the flow of fans, to maintain high speed, low speed paper feeding accuracy, the smallest paper width 350mm.
  2. Adjust the air flow and pressure in 4 sections to match the size of the board.
  3. Positioning by the front baffle to reduce feed errors, improve paper feeding, printing and die-cutting precision.
  4. Electric control of left and right baffle.
  5. Electric control of rear supporting board.
  6. Front paper baffle clearance adjusted by manual.
  7. Equiped with continuous and intermittent paper feeding function. (optional or continuous feed) as required.
B.Upper and lower roll
  1. Upper roller:The outside diameter is 155mm,wear resistant rubber on the surface of steel pipe.
  2. Lower roller: the outer diameter of the 155mm paper feeding roller surface embossed plated hard.
  3. Feeding pressure roller adjustment gap manual adjustment, adjustment range 0-12mm.
  4. The power transmission of the pressure roller is driven by the rolling cross coupling, which reduces the abrasion and makes the transmission more balanced.
  5. Machine clutch, accompanied by sirens, continue to ring the alarm when traveling, to ensure the safety of operators.
  6. The driving shaft is provided with a friction type clutch to avoid the misoperation and damage to the machine.
  7. The main motor is equipped with protection device (not start machine locking when the host is unable to turn the shipment).
  8. Paper feeding unit electric automatic zeroing.
  9. The general carton use automatic zeroing device, try printing 1 to 2 pieces of cardboard can be adjusted to the correct position, reduce cardboard waste.

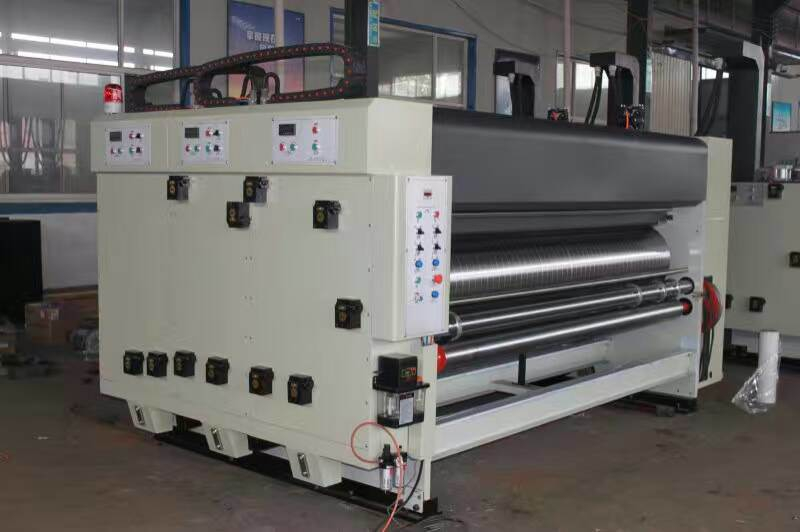

Printing department
A.Printing roller
  1. The outer diameter is 395.6mm (with diameter of 410mm).
  2. High quality steel, surface grinding, hard chromium plating.
  3. Scroll hanging version, using the right and left sides of the locking device, so that the more accurate version of the hanging.
  4. Full version of hanging plate hook, adopt 9mm hanging bar.
  5. Loading and unloading printing board, foot switch electric control forward and reverse.
B.Printing press roller
  1. The outside diameter is 155mm
  2. Steel pipe surface grinding, hard chromium plating.
  3. The pressure roller gap is adjusted manually, and the adjustment range is 0-12mm.
C.The metal roller (customized according to customer demand for the mesh) (high with 250 mesh ,optional ceramic roller)
  1. The outside diameter is 215mm.
  2. The surface of the steel pipe is made of advanced chromium plating process.
  3. Dot consistent, ink uniform.
  4. Prolong the service life of printing plate and rubber roller.
  5. The anilox roller clearance is adjusted manually, and the adjustment range is 0-12mm.
D.Rubber roller
  1. Uniform ink roller, coated with wear-resistant rubber, rubber roller high parabolic type, to compensate for the force deformation, improve the effect of inking. Rubber for the butyl rubber, shore hardness of 60 degrees or more, through the special effect of good polish ink. The rubber roller is driven by the motor when the machine is stopped.
2.The outside diameter is 205mm
3.The rubber roller clearance is adjusted manually, and the adjustment range is 0-12mm.
E.Phase adjusting mechanism
  1. Planetary gear structure.
  2. The printing phase is controlled by computer and electric digital control (360 degrees)
  3. The transverse direction of the printing roller is adjusted manually, and the adjustment range is 5mm.
  4. The printing plate roller uses the electric adjustment phase, to return to zero and the edition speed is quick, adjusts the edition precision to be high.
F.Paper feeding roller
1.Paper feeding upper roller, outer diameter of 86mm, high quality steel plated hard chromium with four guide wheel diameter of 125mm.
2.Paper feeding lower roller, outer diameter is 155mm, guide paper roll plating hard chromium.
3.The guide roll gap is adjusted manually, and the adjustment range is 0-12mm.
G.Ink circulation structure
  1. Pneumatic diaphragm pump for ink stability, simple operation and maintenance.
  2. Ink filter,Filter impurities
H. Printing roller fixing device
  1. Adopt pneumatic brake mechanism. When the unit is used for separating and adjusting the phase or cleaning, the brake mechanism limits the gear to rotate, and the fixed position of the original gear position is maintained.
  2. The power transmission of the pressure roller is driven by the rolling cross coupling, which reduces the abrasion and makes the transmission more stable.
Slotting department
1.The outer diameter of the cutter shaft is 156mm, the outer diameter of the cutter shaft is 156mm, and the surface is plated with hard chromium.
2.Press line wheel clearance manual adjustment.
3.Width of slotting cutter 7mm. Alloy steel material.
4.Slotting knife seat clearance worm gear box adjustment, dial display, adjustment range 0 - 10 mm.
5.Planetary gear structure for slotting phase adjustment
6.Slotted phase using the phase controller digital 360 degree adjustment (run, stop can be adjusted)
7.Manual synchronization adjust box height.
8.The top and bottom rollers of the pressure line are 110 mm, which is made of high quality thick wall seamless steel tube, and the surface is hard to be plated with hard chromium. The wire diameter phi 176.
Die cutting department
A. Rubber pad roller
1.The outer diameter of the rubber pad roller is 388.9mm.
2.Rubber pad roller for high quality steel, surface grinding, hard chromium plating.
3.Rubber pad thickness 8mm, width 250mm.
4.The adjustment of the gap between the pad roller and the cutter roller adopts manual adjustment, and the adjustment range is 0-16mm.
5.Automatic compensation structure of rubber pad roller, automatic control of pad roll speed.
6.Rubber pad roll cutting flat structure, keep the pad roll.
7.The rubber pad roller adopts the 1:900 engine crankshaft rotation conversion to 30mm swimming transverse structure.
B.Die cutting roller
  1. Die roll 360mm.
  2. The die roller is of high quality steel, the surface is grinded, hard chromium plating.
  3. Dynamic balance correction, increased operating stability.
  4. Die fixed screw hole spacing, horizontal 100mm, radial 12, screw hole M10.
  5. Application of line height 22.60mm
  6. Wood template thickness 13mm, blade height 25.4mm.
  7. The cutter roller adopts manual adjustment, the adjustment range is 10mm
C.Die cutting phase adjusting mechanism planetary gear type structure.
  1. Die cutting phase using the computer and electric digital control 360 degree adjustment (run, stop can be adjusted).
  2. Press line wheel clearance manual adjustment, adjust the scope of 1-12mm, using the cross slider mechanism, adjust the transmission gear always ensure the correct meshing state.
  3. Bottom cutter uses the international brand rubber pad.

.Technical parameter
Machine size MM 1200X2800
1 Machine inner width MM 2900
2 Max paper size MM 1200X2700(Continuous paper)
3 Min paper size MM 400*600
4 Max printing area MM 1150X2500
Max slotting area MM 1150X2500
Min slotting size MM 380
5 Min die cutting size MM 380
6 Max die cutting area MM 1150X2500
7 Printng roller and die cutter roller traverse MM 10 both left and right
8 anilox roll manual adjustment upper and lower MM 0~11
9 Lower printing roll manual adjustment upper and lower MM 0~11
10 Rubber roller automatic traverse MM 20 both left and right
11 Printing roller, rotary die cutting roller, rubber roller body ratation degree 360
12 Economic speed P/min 120
13 Feeding rubber roller Φ 156
14 Printing roller diameter Φ 410(include printing plate)
15 Wall of machine HT200 50MMthickness
16 Driving gear 20GrMnTi Hardness 60, fine grinding, transmission gear thickness 50mm
17 Paper feeding precision ±1.0mm
18 Die cutting precision ±1.0mm
19 Main motor power 15KW
20 Production power 26KW
21 Total power 33KW
.Main parts original place
Name Brand
  1. Bearings Qianchaowanxiang,wafangdian
  2. AC contactor, thermal relay chint
3,Keyless connection ring Chaoyang
4,Pneumatic diaphragm pump Changjiang
5,Frequency converter Puchuan
6,Pneumatic solenoid directional valve chint
7,Pneumatic cylinder chint
8Metal Anilox Roller Dalian junfeng
9Printing rubber roller Hebei Xintai
  1. knife imported
  2. Rubber Chaonai,Ledika

Corrugated printer Carton flexo printing slotting machine

1 Whole machine electric parts was choice the domestic famous brand, good quality and steady.

2 Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.

3 All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.

4 All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.

5 The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.

6 Option: Presetting adjustment function, feeding, printing, slotting, zero setting, memory reposition automatic.

7 Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.

8 Option the vacuum adsorption, kick feeding or lead edge feeding to the customer request.

Option: Anilox roller, And stacker Machine.

Technical Parameter:

YFQ480×1800 1447×2000 1447×1800 0-60 Piece/min 5.5kw
YFQ480×2000 1447×2200 1447×2000 0-60 Piece/min 5.5kw
YFQ480×2400 1447×2600 1447×2400 0-60 Piece/min 5.5kw
YFQ480×2600 1447×2800 1447×2600 0-60 Piece/min 5.5kw

Customer visit:

Delivery pictures:

Carton box pictures:

Factory process:
