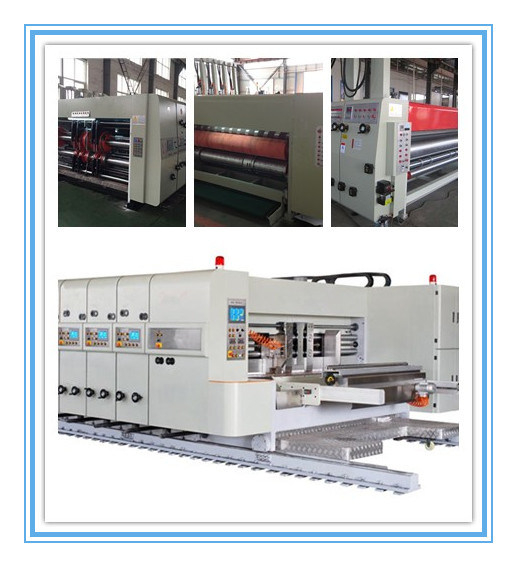

Automatic High Speed Corrugated Carton Box Printing Packing Machine
Function and Characteristics:
1.Computer order storage and adjustment, faster order update and convenient operation.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digit-controlled grinder.
3.All the transmission axle and rollers are made of high-precision dynamic balance, plated with rigid chrome and grinded surface.
4.The transmission gear adopts high-quality steel with heat-treatment, it will still maintains high topping precision after long working time.
5.The main machine transmission parts adopt the hand-free connection ring to eliminate the interval, suitable for long-term high speed printing.
6.The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
7.It possesses the print, die-cutting, slotting memory function, which could return to zero and re-set automatically.
8.PCLINK control network, MCGS software, Simens low voltage electric appliance and host frequency conversion control, 30% electricity saving.
9.Double axle slotting to configure whole machine production management computer control system and single axle to configure whole machine production management computer control system.
Optional: Remote computer diagnosis system and Front paper feeding system
Main Technical Parameters:
|No. ||Parameter Name ||Unit ||2600 Type ||2800 Type |
|1 ||Max Paper Coverage Area ||mm ||1500*2500 ||1500*2700 |
|2 ||Expiry Printing Area ||mm ||2500*2200 ||1500*2400 |
|3 ||Min Working Size ||mm ||400*500 ||400*500 |
|4 ||Thickness of printing plate ||mm ||6 ||6 |
|5 ||Max printing Speed( ||Pieces/min ||120 ||120 |
|6 ||Economic Speed ||Pieces/min ||100 ||100 |
|7 ||Frequency Conversion Power of Main Motor ||kw ||18.5-30 ||18.5-30 |
|8 ||Topping Precision ||mm ||±0.75 ||±1.75 |
|9 ||Slotting Precision ||mm ||±0.75 ||±0.75 |
Function of Paper feeding Unit:
1.The light alloy aluminum back-kick vaccum adsorption paper feeding mechanism with several groups of rolling bearing to ensure more steady machinery operation.
2.Left and right baffle and back baffle position are controlled by computer and electric digit; the side baffle is equipped with pneumatic trimming facilities.
3.Consecutive or skip paper feeding, infrared electrophonic counter, general lock mechanism, brush dust removal mechanism.

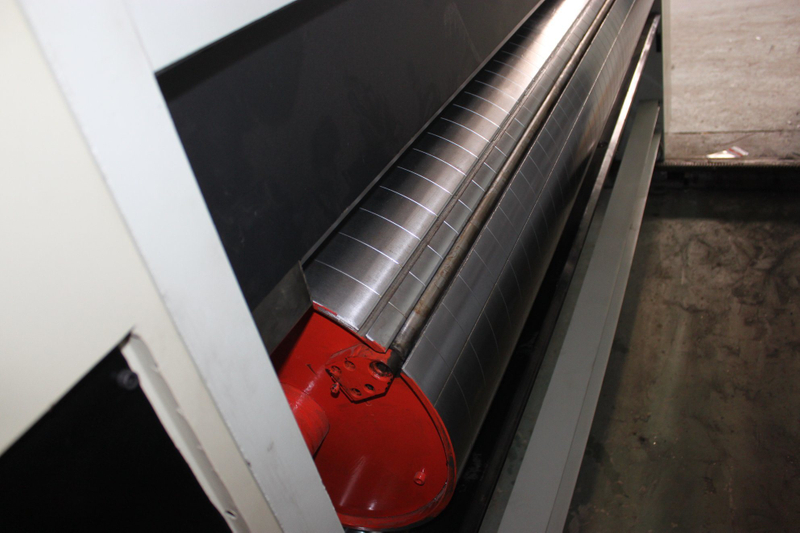

Function of Printing Unit:
1.High precision dynamic balance reticulated roller, present fine printing effect
2.The print phase is controlled by computer and electric digit with 360° adjustment
3.The print plate roller could be adjusted horizontally with computer and electric digit control ranging from +5mm to -5mm
4.The interval of transmission roller, paper press roller and glue roller adopt the self-lock structure
5.Brush plate reset, printing ink inspection, fission brake location and water ink clean mechanism
6.Has rapid handing plate mechanism

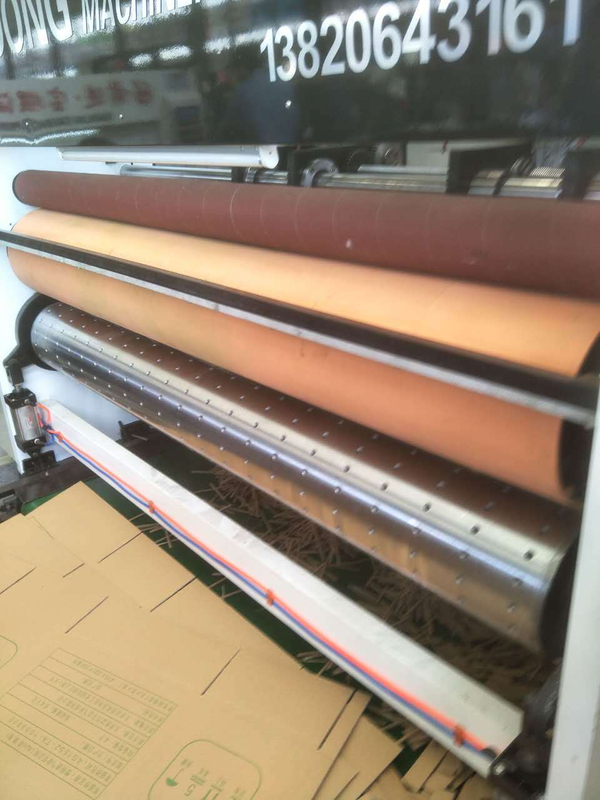

Function of Die-Cutting Unit:
1.The die cutter phase is controlled by computer and electric digit.
2.The die cutting scraper could be adjusted ranging from +5mm to -5mm.
3.Uniflair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the servo computer system, it will calculate accurately and follow the print speed to ensure the velocity of blade line the same as the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die cutting plate will not be damaged. The upper and lower roller of the die cutting adopts the design of different size, the servo system ensures the automatic deviation of the cushion and cutting die for every circle, which greatly lengthen the service life of the cushion; In addition, the renovated cushion could be used for many times and greatly reduce the use cost.
4.The cushion roller's mechanical, horizontal and cam facility from +35mm to -35mm could raise the service life of the cushion of the die-cutting.

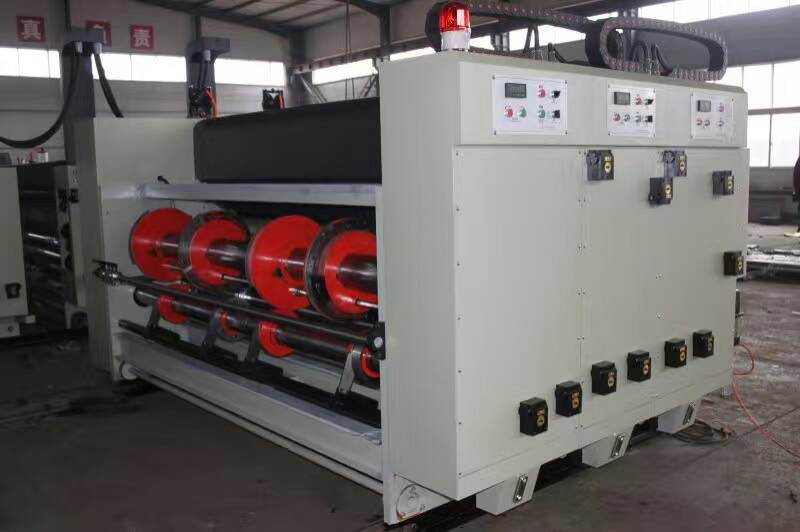

Function of Slotting Unit:
1.Optional: Single Axle Slotting.
2.The horizontal movement structure of slotting tool rest; Cooperate with precision master screw, the bronze. screw and glided bar could ensure more flexible movement and accurate orientation of upper and lower cutting.
3.The phase and height of the slotting are controlled by computer and electric digit, in addition, it's equipped with bump-proof protective equipments without damage to the machines.
4.The press line wheel and slotting scrape horizontal movement mechanic joint are electrically controlled.
5.The slotting and impress interval adjustable adopts self-lock structure.
6.The elastic tangential scraper structure could cut off three and five ply cardboard without any adjustment, which is quite convenient.
7.It could be equipped with portable punching die holder.
8.Standard: Equipped Double Axle Slotting.
9.Double Slotting structure could facilitate more convenient slotting adjustment and faster order change.
10.Glue press line wheel could contribute to good formation of cardboard press line.
11.The horizontal movement structure of slotting tool rest; Cooperate with precision master screw, the bronze screw and glided bar could ensure more flexible movement and accurate orientation of upper and lower cutting, prevent the scraper bumping accident and lengthen the service life of the scraper.
12.The phase and height of the slotting are controlled by computer and electric digit, in addition, it's equipped with protective bump-proof facilities without damage to the machines.
13.The slotting and impress interval adjustment adopts self-lock structure.
14.The elastic tangential scraper structure could cut off three and five ply cardboard without any adjustment, which is quite convenient.
15.It could be equipped with portable punching die holder.
Function of Stacking Unit
1.Installed with safeguard mechanism the paper-receiving arm can be operated by hand or automatically in order to prevent the sudden falling down of paper-receiving arm for the safety of the operating personnel.
2.The rising and descending of the machines tool platform is driven by the powerful chain.
3.The height of stacker is 1600mm.
4.With the paperboard's piling to the higher level the machine tool platform automatically adjusts the tilting height. Lifting and descending the electrical machinery. Equipped with brake function, so the machine tool can keep the fixed position to prevent falling down.
5.The organization of lifting the paper by pneumatic motion. The paper receiving tray will automatically open and catch the paperboard while the paperboards are piled to planned height.
6.The surface corrugated belt can prevent the sliding of the paperboard. Delivery Pictures:
