3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery

Quantity:
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
  • Shun Stick Folder Gluer

  • Automatic High-Speed Folder Gluer

  • Electric

  • Film

  • 1100X2600

  • 280X730

  • 100-130 M/Min

  • Imported Brand

  • PLC

  • Double Head Baler

  • PP or PE

  • Taiwan Technology

  • Plastic Film Wrapping Outside, Container

  • CZXY-2600

  • CZXY

  • Cangzhou City, Hebei Province

  • 8441809000

  • 5-10sets/Month

  • Available | Customized Request

3/5layer corrugated box automatic folding gluing strapping machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery

I.Introduction and Configuration:
The full automatic folder gluer is mainly developed and produced for the hand paste box forming business. Nowadays, there are the largest number of employees in the enterprise, occupying a large area and having low efficiency. In particular, the problem of poor adhesiveness, overflowing glue, and poor adhesion of corrugated cartons in the domestic market is endless. For this reason, our company has developed an automatic glue box machine, which saves a lot of labor and saves three times the cost. Paste boxes standard, do not overflow, really small investment, save production space, achieve benefits, quality double harvest. It is preferred by the color printing press, printing press, and other types of carton packaging companies.

II.Features of automatic folding gluing machine:
The whole machine adopts PLC computer programming controller, digital operation, touch screen input data can realize non-stop change data, production speed, etc. The whole machine automatically feeds paper, automatically folds, automatically counts, folding speed can reach 100-130 m/min.

III.Main structure:
1, automatic paper feeding
2, automatic glue coating
3, automatic folding
4, automatic stacking, counting and output
5, electrical parts

IV. Main features and characteristics of each part

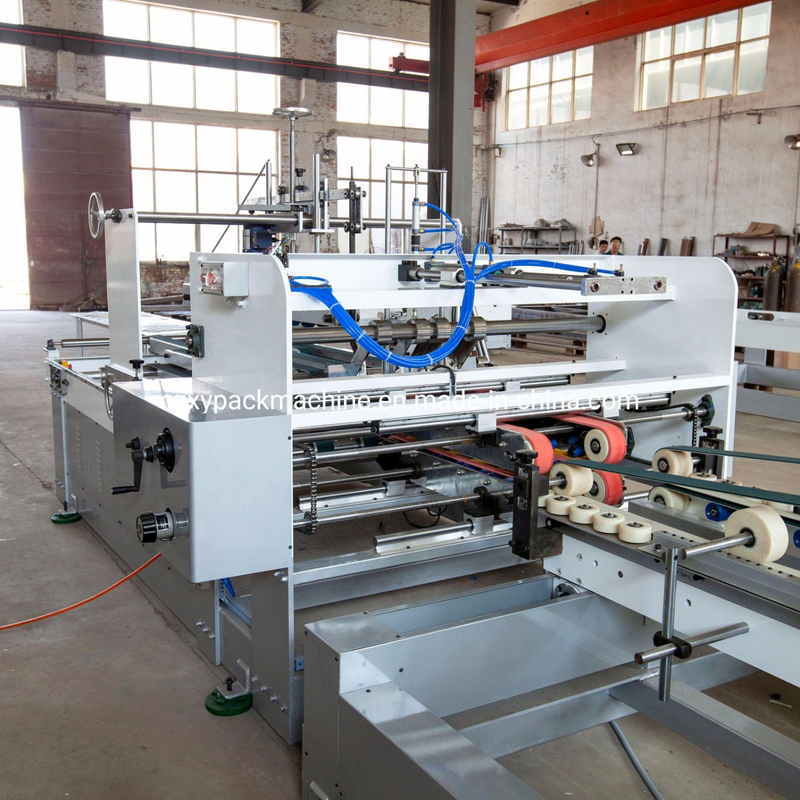

1.automatic paper feeding part
1) Adopt imported high-tech materials suction belt, suction feeding paper, stacking automatically enter to ensure smooth and high speed paper feeding.

  1. The use of high-grade electromagnetic clutches and electromagnetic brake systems enable the paper feeding section to be single-sheet or continuous operation, effectively controlling the waste of the cardboard in the specification adjustment and the accuracy of the output paperboard.

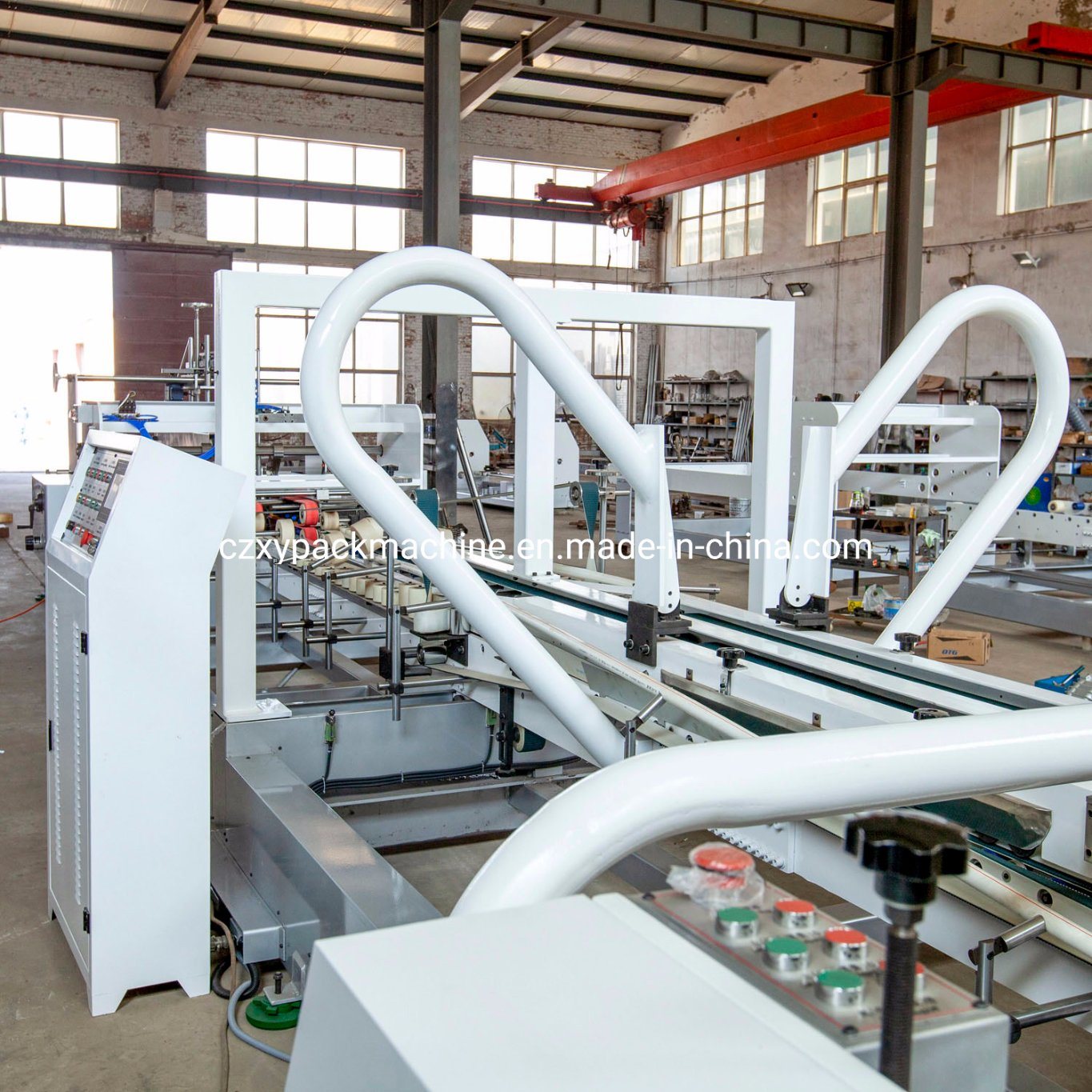

2.Automatic folding gluing part
  1. The folding section adopt imported seamless connecting conveyor belts made of high-friction, ultra-abrasive and special materials. The frequency conversion speed control can be controlled independently, and the automatic folding of the cardboard can be completed accurately.
  2. Coating width 20-25mm, bottom coating method.
  3. According to the box-shaped, glue box can be moved around, glue evenly, the amount of glue is stable, save glue and high efficient.
  4. The folding section is equipped with three pressure line correcting devices to accurately and effectively correct the deviation of the cardboard pit line, so that the entire carton can be folded with the most accurate, and the occurrence of the scissors mouth can be well controlled.
3.Automatic Stacking, Counting and output Unit

1)Stacking flapping can adjust the carton's fish marks.
2)Select the corresponding amount of accumulation on the display screen, set the number of counts out of the stack, you can choose 15, 20, 25 sheets.
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery

VI.Full automatic folding gluing machine model and parameter:
  1. This machine is suitable for three-layer, five-layer single piece carton adhesive.
  2. Main technical parameter:
Model SF-2400 SF-2600 SF-2800
Max.cardboard size 1000×2300mm 1100×2600mm 1200×2800mm
Min.cardboard size 280×730mm 280×730mm 280×730mm
Install area 3500×15500mm 3800×15500mm 4000×15500mm
power 10.5kw 10.5kw 10.5kw

VII.Core Technology
  1. Suction feeding accuracy
  2. Secondary creasing makes the crease more accurate
  3. The size of the mouth is well controlled and the waste is reduced.
  4. Secondary correction, eliminate scissors.
  5. Accurate counting.
  6. Carton forming speed quickly.
  7. Beating part makes the carton forming well.
  8. Stacking accurate and neat.

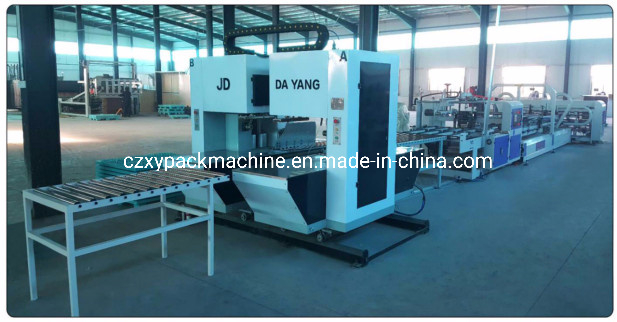

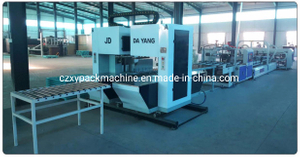

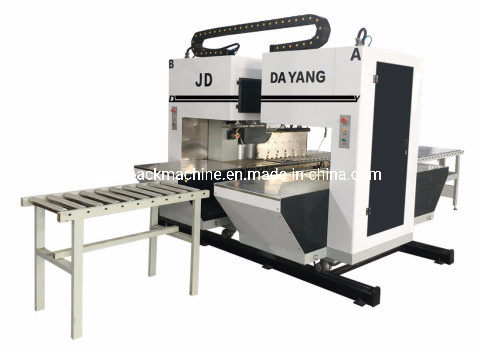

Automatic double head baler configuration

The automatic double-head baler is a new automation product that our company introduced Taiwan technology and re-integrated design and research and development. With a number of advanced technologies, we are developing with high automation, high precision, high speed, high reliability and safety. Make users really energy-efficient and efficient. The whole machine is controlled by PLC, the operation is reliable, the adjustment of the order is simple, fast and accurate. The head of the machine adopts imported big beak, the structure is firm and the stability is good, which greatly prolongs the service life of the whole machine.


Features:
1. Easy to operate, easy to maintain, safe and no need to experience, turn on the power to start.
2. Cost savings. (The cost of using PE tape is 1/4 of the cost of PP belt)
3. This machine can be customized for automatic glue box machine, automatic glue nail machine, semi-automatic nail box machine, etc.

The main structure of the machine:
I.Host transfer consists of two parts
1 stainless steel conveying roller shaft transmission, fully reducing the abrasion of the carton caused by the transmission friction. A total of 38 conveying rollers are arranged on the left and right sides of the conveying roller shaft, and are driven by a special high-friction belt for transmission.


2 The paper pusher transmission. The power roller is equipped with a photoelectric sensing system near the paper inlet. When the carton touches the first photoelectric sensor, the paper feeder will start to push the carton forward.
Push the carton to the knotting part, touch the second photoelectric sensing system, the paper feeder stops, and the upper platen falls down, press the carton until it reaches the specified position, and the push plate starts to move back to the starting point.

  1. In addition, the conveying roller has intermittent and frequent rotation two functions can be selected, and the conveying roller portion automatically waits in standby to save power. When a carton comes over, the sensing part automatically senses and starts to run.

II.Patting part:
The patting part is composed of up and down, left and right 4 directions. After the carton passes through the second set of photoelectric sensing system, the left and right pats are started, and the left and right directions are aligned. During the process of pushing the carton to the designated position by the push plate, the front of the carton is blocked by the packing tape and the completed carton in front, and the carton uniformity adjustment is performed before and after. After reaching the designated position, the upper platen is pressed down, and the upper and lower directions are aligned. The combination of the above several parts ensures the neatness of the packaged carton, and perfectly meets the upper folding, lower folding type glue box machine and nail box machine.

III:Knotting Department:
Patented double-head knotting technology, the machine head adopts Taiwanese technology, and the double head is knotted at the same time to improve the knotting speed and knotting precision. The PE strapping used in knotting is better and cheaper than the PP strapping, and the perfect interpretation machine has a double bow buckle.

IV.Machine control:
The assembly structure has a bottom moving track and a secure design. The whole machine is controlled by computer, the size and speed are adjusted, and the left and right movements are all controlled by electric control. It can be quickly changed for one minute and controlled by Taiwan Delta controller.

Customer visit:
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery

Delivery picture:
3/5layer Corrugated Box Automatic Folding Gluing Strapping Machinery
