Semi-automatic 5ply carton box stapling machine
CZXY-2000 Single piece semi-automatic double servo carton stapler
Feature and characteristic:
- Imported double servo drive, precision is accurate, can reduce mechanical transmission , thus reduce the machinery malfunction effectively.
- The stapler adopt touch screen operation, parameter(stitching pitch,number of stitching, stitching kind, back shield)changes conveniently and fast.
- The whole system of stapler is Omron PLC control system.
- The switch of control cabinet are all produced by Taiwan Shilin.
- The blade of automatic stapler die block is made of Germany tungsten steel.(wearable)
- The nailhead of stapler are all made of special steel ,processed by computer precisely.
- The switch and button are all produced by Taiwan Tiande
Fatures: - Change size quickly in a minute.
- Easy operation , no training is necessary.
- Single ,double, strengthen are all available.
- The feeding part can count automatically, and output automatically in a certain, easy for binding.
- Touch screen operate
- Adopt servo system
- Stitching distance :100mm
- Stitching whatever the carton has cover or not.
- Stitching distance can be set up in touch screen directly.
- Auto adjust paperboard thickness.
| Max size (L+W)*2 | 2460mm |
| Min size(L+W)*2 | 606mm |
| Max size (L+W)*2 | 1515mm |
| Min size(L+W)*2 | 300mm |
| Height of feeder | 900mm |
| Motor Power | 6kw |
| Length | 4500mm |
| Width | 2100mm |
| Weight | 2000kg |
| Speed | 450staples |
| Stitching Pitch | 30-70mm |
| Number of stitching | 1-99stitches |

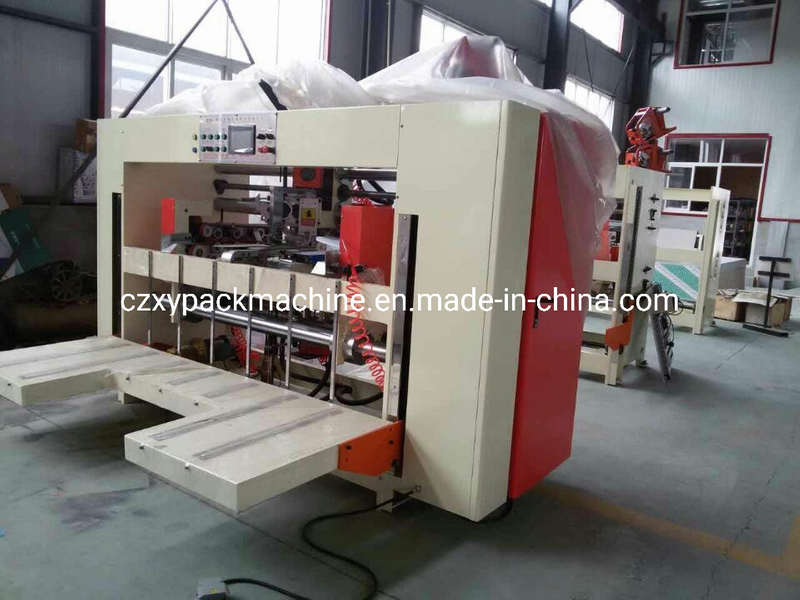

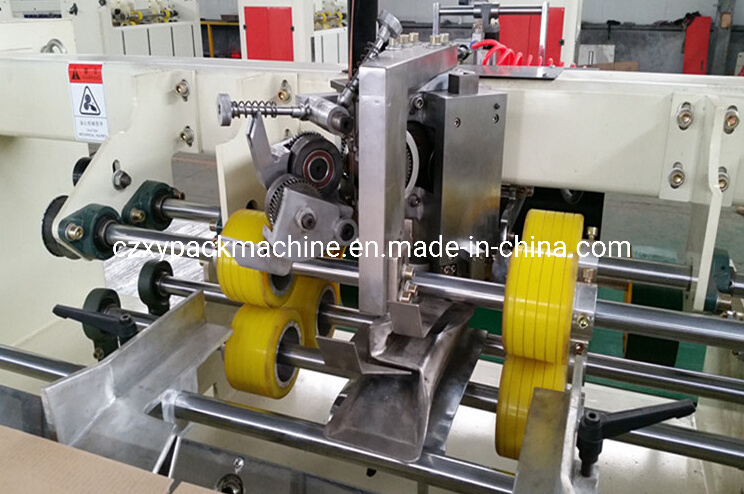

Machine details:

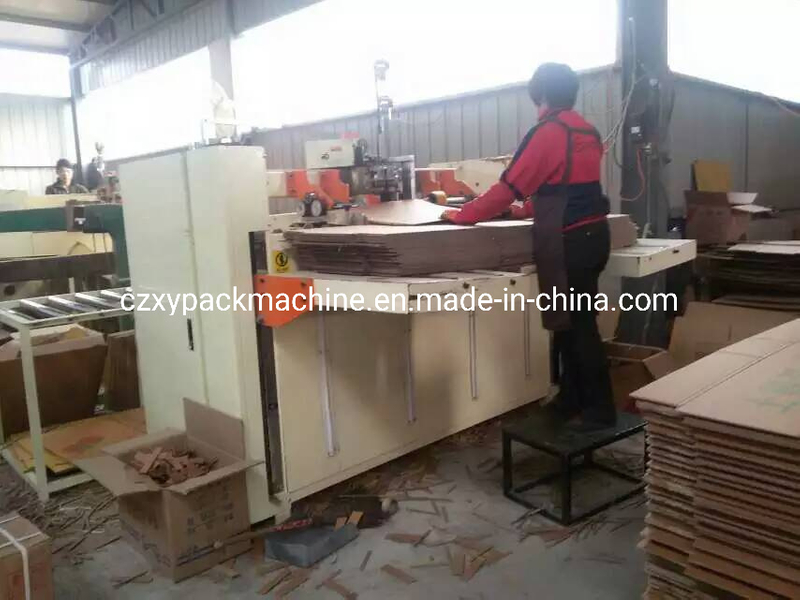

Box Producing Process:
Customer Visit:
Related Products:
Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
