Semi-Automatic 3/5/7ply Colorful Corrugated Box Folding Gluing Machine

Quantity:



Inquire Add to Basket

Type:
Shun Stick Folder Gluer
Automatic Grade:
Semi-Automatic Folder Gluer
Driven Type:
Electric
Packaging:
Film
Main Motor:
Taiwan Taibang
Cardboard Thickness:
2-8mm
Max.Feeding Size:
2800*1400mm
Min.Feeding Size:
600*300mm
Gluing Head:
Aluminum Alloy
Photoelectric:
Imported Brand
Electric Apliance:
Chint
Dimension:
3800*1900*1700mm
Transport Package:
Standard Abroad Packaging, Container
Specification:
2800
Trademark:
CZXY
Origin:
Hebei, China
HS Code:
8441809000
Production Capacity:
10sets/Month
Customization:
Available | Customized Request

Product Description

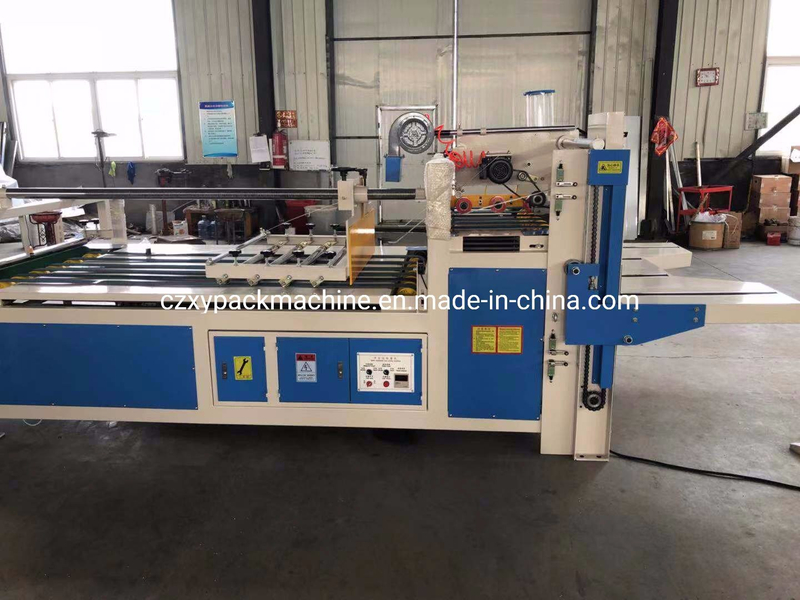

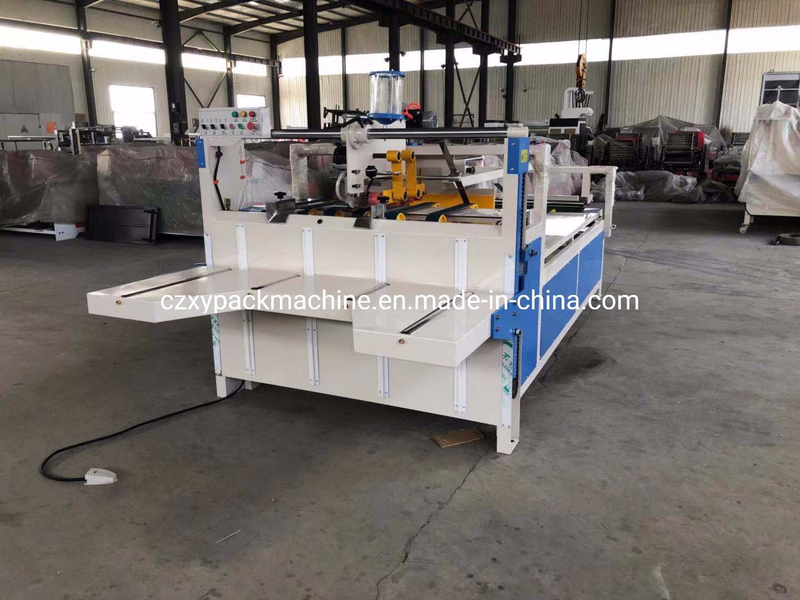

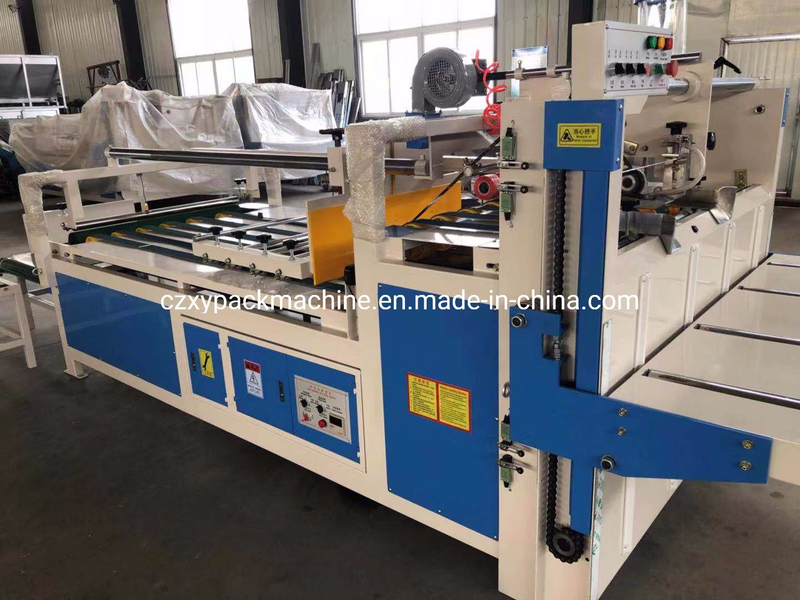

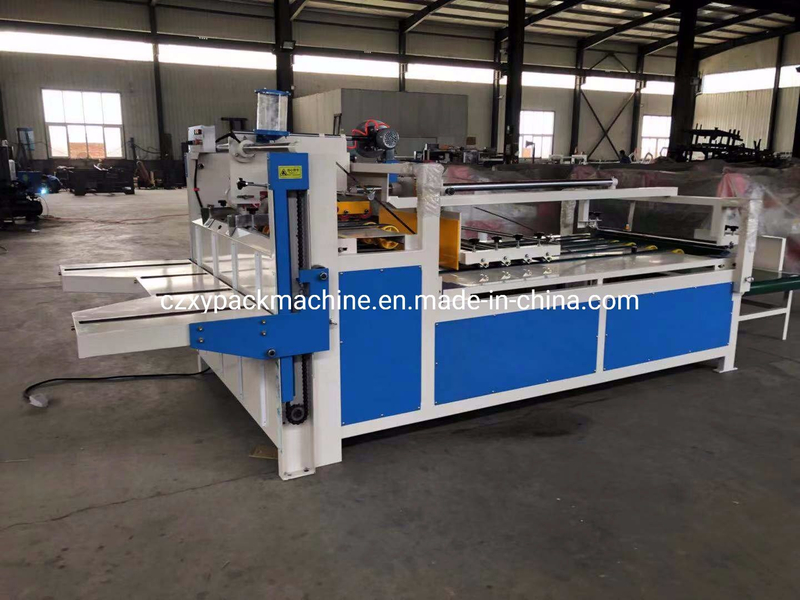

Semi-automatic 3/5/7ply colorful corrugated box folding gluing machine

BZD2800 Semi-automatic Folder Gluer

Main Configuration:
Semi-automatic gluer is new-type environmental equipment, mainly used in carton sticking, abandon the traditional copper stapling method, raised the productively, and the product quality is good.
Main machine frame: machine frame, ascend and descend workable, front part convey equipment, front part amending equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling equipment.
Usage and Characteristic:
Simple and reliable operation system
Whole novel smooth design
Quick change of size
Automatic counting, strapping set
Gluing 240mm or so for the carton width plus height.

Parameter and specification	BZD2800
Max size (length +width)×2	2800mm
Min size (length +width)×2	340mm
Max size (width +height)×2	1515mm
Min size (width +height)×2	240mm
Paper height	1000mm
Engine power	2.2kw
Machinery speed	60m/min
