Hot Selling Dzx 1600 Series of Corrugated Paper Box Stapling Machine

Quantity:



Inquire Add to Basket

Weight:
500kg
Speed:
280stapler/Min
Voltage:
370W/380V, Customized Acceptable
Wire Feeding Knife Material:
Alloy Steel
Application:
3/5/7 Layer Corrugated Board
Motor:
Double Servo
Model NO.:
CZXY-1600
Inductive Switch:
Taiwan Brand
Dimensions(L*W*H):
1600X800X1760
Operation Type:
Manual
Operation:
Easily
Transport Package:
Plastic Film, Container
Specification:
1600MM
Trademark:
CZXY
Origin:
Hebei, China
HS Code:
8441809000
Production Capacity:
15sets/Month
Customization:
Available | Customized Request

Product Description

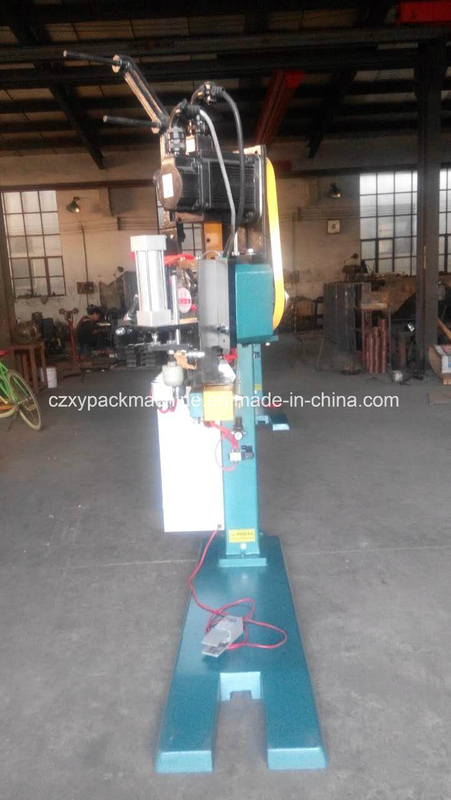

Hot selling DZX 1600 series of corrugated paper box stapling machine

Main parts and configurations:

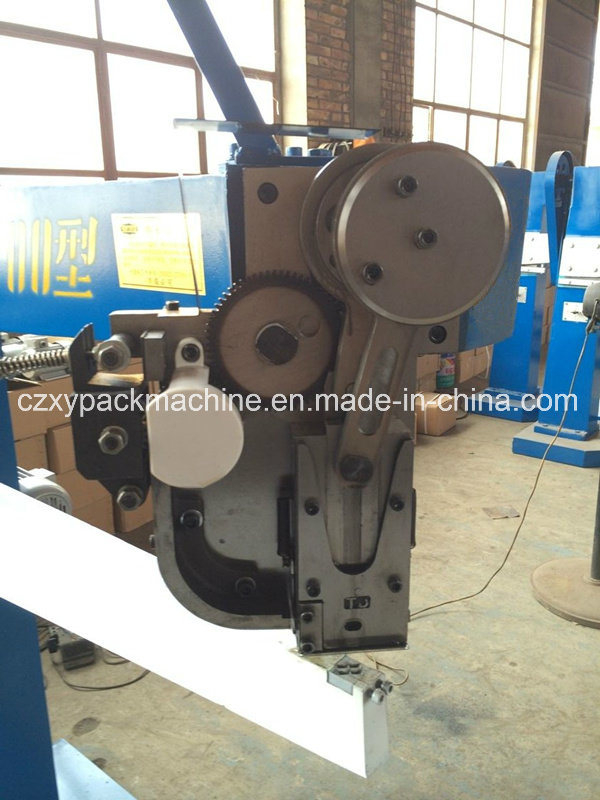

The machine adopts double servo motor control, has high stitching speed, the stitching distance is adjusted and beautiful . The main parts of machine head is made of imported alloy steel and resistant to wear , the life is longer 3-5times than ordinary machine. It has the features of high-efficiency,less energy consumption, less fault rate and easy operation, it is the ideal stitching equipment of modern carton factory.

Configurations and parameter:

double servo motor control(nailing servo,feeding servo)
Stitching distance is adjustable between 30-120mm.
Computer screen can input order quantity, finished quantity, remaining quantity, nail distance length, nail quantity.
Nailing speed is adjustable between 300-580saples.
Motor power is 3kw.

6.Input voltage and frequency: single phase 220v, 50Hz.

Model	Box height(mm)	binding style	Ribbonfil type	Binding speed	Motor
DHJ-600	Single straight nail	18\20	280staples/min	600	180w/380v, customized acceptable
DHJ-600	Single oblique nail	18\20	280staples/min	600	180w/380v, customized acceptable
DXJ-900	45°double oblique nail	17\18	280staples/min	900	370w/380v customized acceptable
DXJ-1200	45°double oblique nail	17\18	280staples/min	1200
DXJ-1400	45°double oblique nail	17\18	280staples/min	1400
DXJ-1600	45°double oblique nail	17\18	280staples/min	1600
DXJ-1800	45°double oblique nail	17\18	280staples/min	1800
