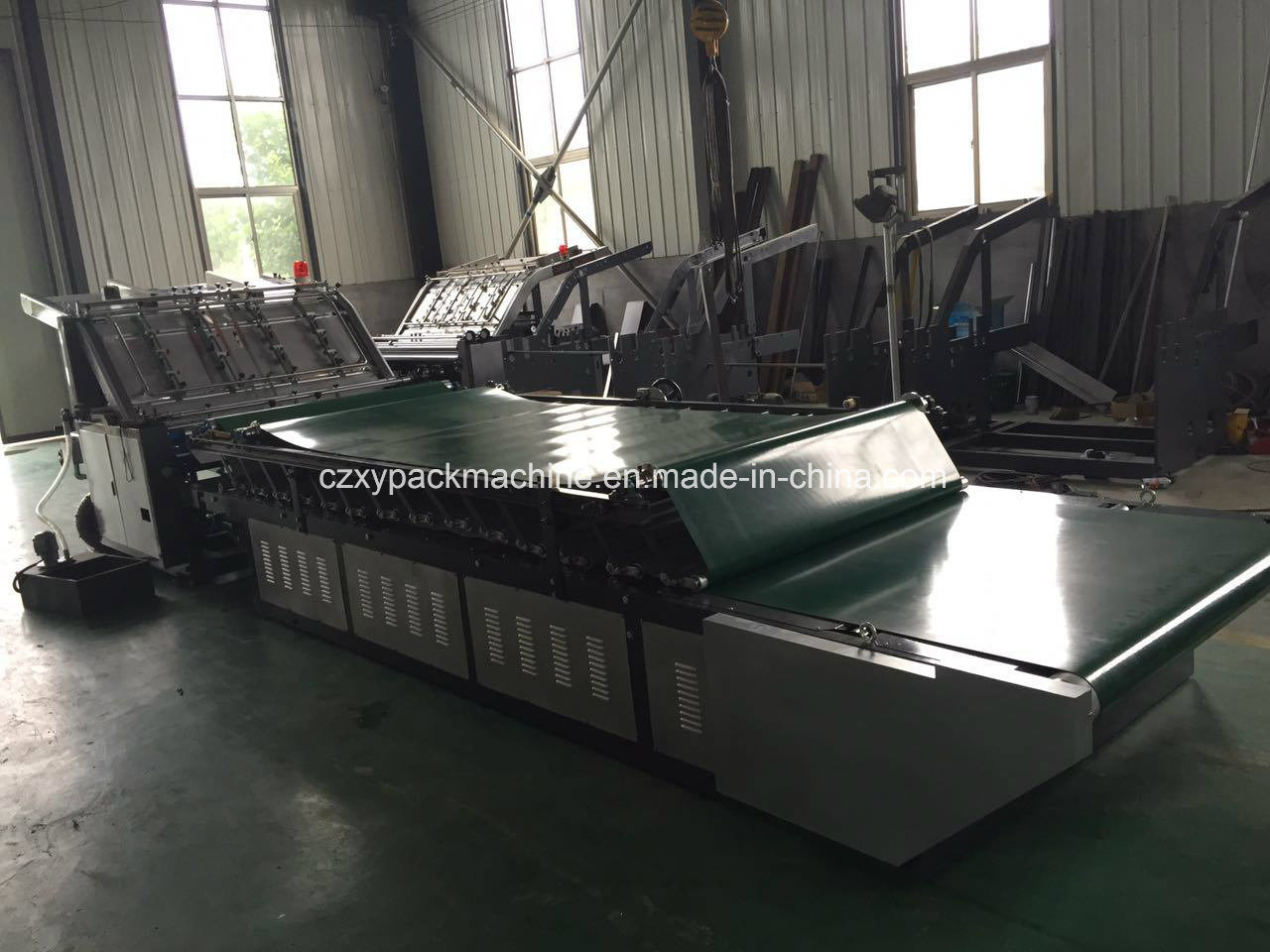

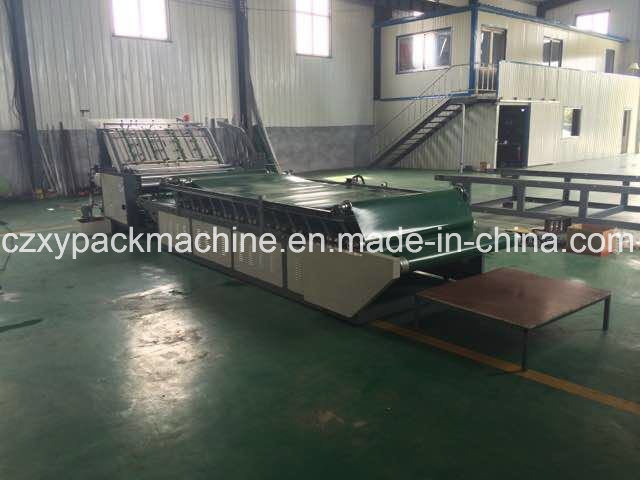

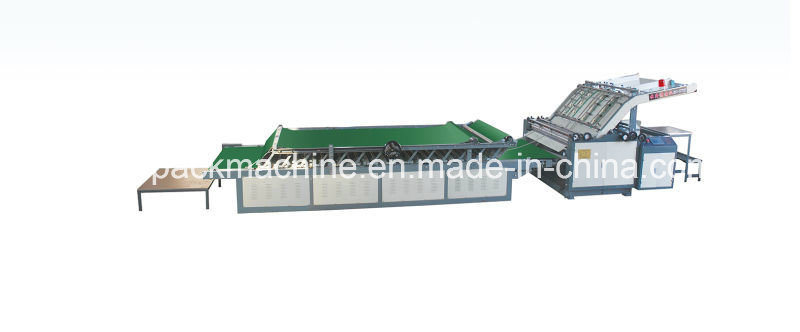

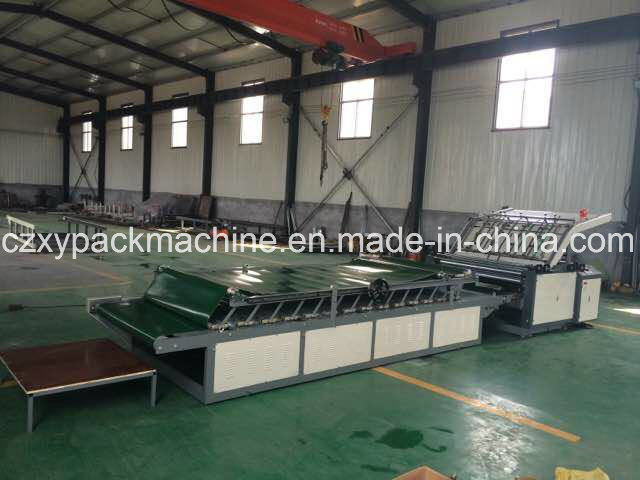

Hl-a-I Semi-Aotumatic Servo Cover Machine

Quantity:



Inquire Add to Basket

Apply:
Color Box Making
Speed:
6000PCS/H
Model:
1300/1500/1600
Feeding System:
Vacuum Suction-Type
Control System:
Touch-Screen/PLC/Servo Motor Control System
Max Size of Cover Face:
1300*1250mm
Model NO.:
HL-A-I
Precision:
1mm
Power:
6HP
Min. Weight of Bottom Paper:
300GSM
Max. Weight of Bottom Paper:
800GSM
Transport Package:
Standard Plastic Packing for Abroad
Specification:
3ton
Trademark:
CZXY
Origin:
Hebei, China
HS Code:
8441809000
Production Capacity:
10sets/Month
Customization:
Available | Customized Request

Product Description

HL-A-I semi-aotumatic servo cover machine

Major feature:
Our company manufacture professionally BZJ series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.
Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.
Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance

Automatic Flute Laminator Parts Introduction

Surface Paper Feeding Part
The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.

Surface Paper Conveying Part
Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability and smoothness of conveying, which is adaptive for different sheets of different thickness without any abrasion for the printing surface.

Alignment System of Surface Paper
Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper enter the pasting part at the same time. It can be fine adjusted during the course of working.

Bottom Paper Feeding Part
Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven layers.

Bottom Paper Conveying Part
Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven layers.

Driving System
Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet.

Adjustment System
Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of pasting tolerance during the course of working with high speed, thus improving the working efficiency.

Electrical Control Part
All the electrical power adopted the worldrenowned brands, steady and dureable, frequency speed govering, lower noise and energy conservation.

Adding Glue and Gumming System
Automatic adding glue system detects by electrically operated fluid controller and adds gule automatically during the course of pasting. The thickness of glue is adjustable according to paper. Recycling system of glue avoids a waste of glue and swinging glue, and ensures accurate and tidy laminating.Unique applied anilox roller glues evenly, even suitable for cardboards and cardboards.

Technological parameter:

Model	HL-1300A-I	HL-1500A-I	HL-1600A -I
Max. paper size	1300×1250mm	1500×1250mm	1600×1250mm
Min. paper size	360X360	360X360	360X360
Mini. weight of bottom paper	300gsm	300gsm	300gsm
Max. weight of bottom paper	800gsm	800gsm	800gsm
Max. thickness of paper	10mm	10mm	10mm
Mini. weight of face paper	180gsm	180gsm	250gsm
Max. weight of face paper	800gsm	800gsm	800gsm
Precision of paperboard and cardboard	±1mm	±1mm	±1mm
Precision of paperboard and corrugated board	±1mm	±1mm	±1mm
Machine speed	100PCS/MIN	100 PCS/MIN	100 PCS/MIN
Total power	6HP	6HP	6HP
Total length	8.8M	8.8M	8.8M
Total weight	6200KG	6200KG	7500KG

Customer Visit:

Factory Process:
Hl-a-I Semi-Aotumatic Servo Cover Machine

Related Products:
Hl-a-I Semi-Aotumatic Servo Cover Machine

Delivery picture:
Hl-a-I Semi-Aotumatic Servo Cover Machine

Welcome to visit us, we'd glad to be good friends with you!
