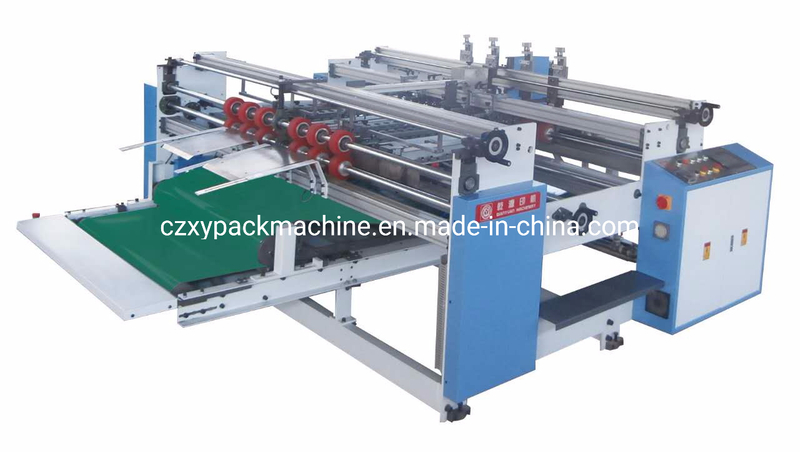

High quality folder gluer machine for double pieces corrugated offset box forming
I.Main technical features
HX-2400B series semi automatic double paste box machine is our company accoeding to the change of market demand at domestic and abroad, a comprehensive analysis of similar products at home and abroad, and on the basis of research on manufacturing and production process in-depth, developed a new "festival," excellent performance "," double paste box machine. This machine adopts double servo feeding, ensure that the equipment in the stability of high speed paper feeding and high-speed feed synchronization, and servo feed can make A,B piece set feeding sizeindividually , so as to solve the problem of size. Double gluing is used for gluing, respectively hot melt adhesive and ordinary sealant, which ensures the 100% bonding of the product into the container and cold storage. The double servo positioning is also used in the two piece butt joint, which provides the same consistency for low speed bonding and high speed bonding of the machine. This machine can be used as a flat box and a special shaped box, the front positioning of our company's original, the use of dual-use specifications, shorten the timefor the machine to change order . The machine is a dual function machine, both the double box and the single box can be produced. It is only 2 minutes to complete the conversion from double box to single box.
II.Machine parameters and configuration list 1,Machine parameters Feeding size:Max 1200*1200 Min 500*450 Applicable paper range: A-E corrugated and less than 6mm corrugated board Design speed: 0-3000pcs/h Dimensions(L*W*H) 6940*4200*1310(Vertical compression) 4060*3200*1310(Horizontal pressing) Heating power:2KW Total power:9KW
2,configuration list
HX-2400B folder gluer
Components and parts
brand
Button
French schneider
Contactor
French schneider,Taiwan Tiande
Servo motor
Beijing Zhongchuang
Main frequency converter
Taiwan Delta
PLC
Taiwan Delta
Touch screen
Taiwan Delta
Photoelectricity
Taiwan Delta,
Key position bearing
England FKG
Main motor
Shanghai Saini
Reducer
Taiwan Chengbang(CPg)
Micromotor
Xiamen Jingyan(Sino German joint venture)
Suction belt
Swiss Rui Baolong
Press belt
German siegling
Transportation belt
German siegling
cylinder
Taiwan AirTAC

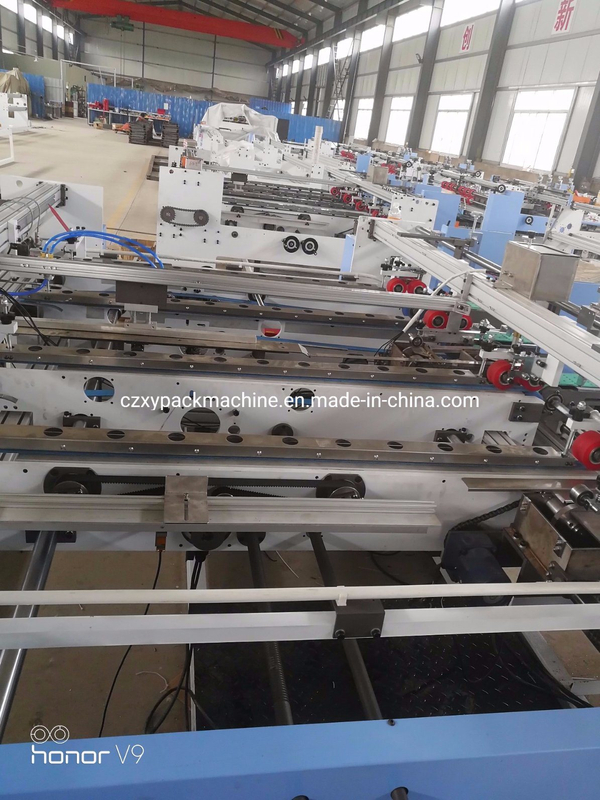

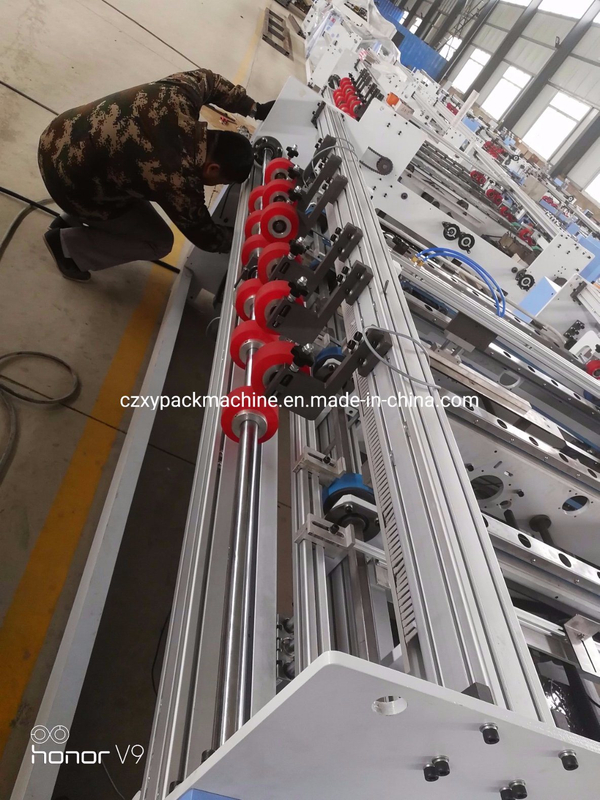

Machine manufacturing process:
Box Producing Process:
Customer Visit:
Related Products:
Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever! Sara Qiu Website: http://czxypackmachine.en.made-in-china.com Fax/tel:0317-7805687
