Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine

Quantity:
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
  • Color Box Making

  • 6000-8000PCS/H

  • 1300/1500/1600

  • Vacuum Suction-Type

  • Touch-Screen/PLC/Servo Motor Control System

  • 1300X1200mm

  • 1.5mm

  • 10kw

  • Delta

  • Automatic Gluing

  • Standard Plastic Packing for Abroad

  • 6ton

  • CZXY

  • Hebei, China

  • 8441809000

  • 10sets/Month

  • Available | Customized Request

Hebei hot sale corrugated cardboard flute laminator machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine

Major feature:
  1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
  2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
  3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
  4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
  5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
  6. Roller design scientifically, avoid glue fly out when the speed is high.
  7. Pressure rollers adopt one side adjustment, convenient and fast.
  8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.


Technological parameter:
Model CZXY-1300A CZXY-1500A
Max size of cover face
1300X1200mm 1500X1200mm
Mix size of cover face
400mmX400mm 400mmX400mm
Economic speed
0-120 piece/min 0-120 piece/min
Precision
±1.5MM ±1.5MM
Power
10kw 10kw
Size
10m x 2m x 2.4m 10m x 2.2m x 2.4m
Weight
About 5.5T About 6.0T

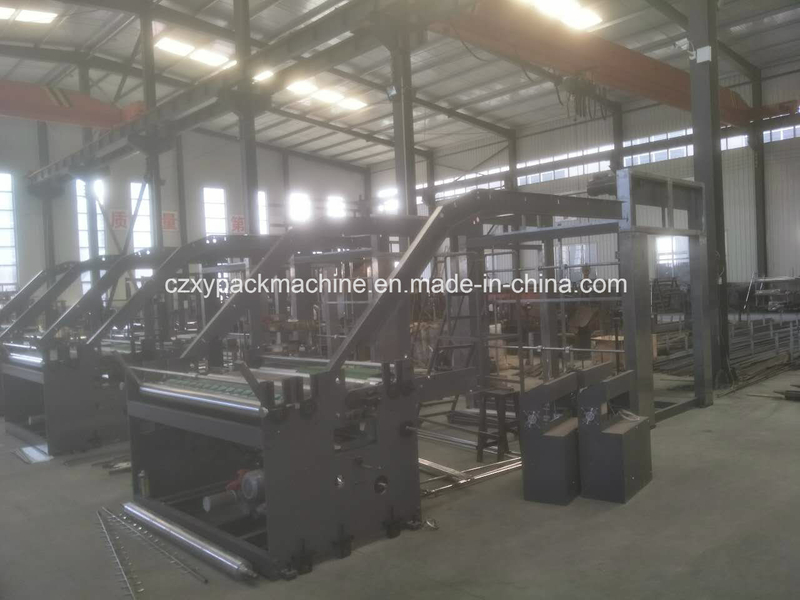

Factory Workshop:
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine

Customer Visit:
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine


Related Products:
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine

Delivery picture:
Hebei Hot Sale Corrugated Cardboard Flute Laminator Machine


Welcome to visit us, we'd glad to be good friends with you!
