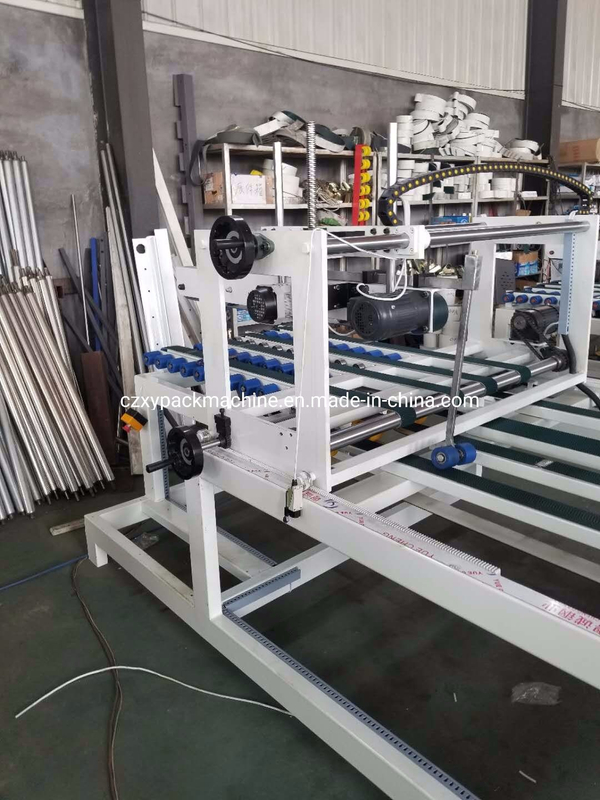

Full automatic folding gluing machine for 3ply box forming
Full automatic folding gluing machine I. the whole machine introduction The automatic folding gluing box machine is composed of a vacuum paper feeding part, a glue folding part and a counting pile output part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast and reliable control mode. Automatic paper feeding, automatic glue folding, automatic counting, automatic stacking output, remote remote control within 100 meters to achieve remote host start and stop, main engine acceleration and deceleration, fan start stop, paper feed start stop, emergency stop, left and right arm adjustment, glue application The box is adjusted, the average viscosity of the box is 150 m / min, high speed energy saving, saving labor costs. II. the functional characteristics .Paper feeding part: 1. Adopting the leading edge of the belt to absorb paper, accurate and reliable. 2. Adopt high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be controlled separately, and the operation is simple and reliable. 3. The height of the paper pressing wheel is adjustable, suitable for cardboard thickness of 2-8mm 4. Linkage with folding section, frequency control, paper feed speed 0-150m/min 5. The front baffle and paper feed belt of the paper feeding section are adjustable left and right. .Folding gluing part: 1. The main motor adopts the frequency conversion speed control system without noise, the speed regulation is flexible and stable. 2. Imported high friction belt conveyor paperboard, automatic stacking. 3. It adopts stainless steel wheel coating glue, uniform glue amount, no trouble and saves glue. 4. The folding section is equipped with a cardboard correction device, and an indentation correction device. 5. The folding part has two rows of adjustable inner positioning guide wheel system, which has higher forming precision. 6. Folding speed 0-150m/min.
.Counting&stacking part: 1. Automatic stacking,neat output. 2. The main motor of the technical department has variable frequency speed regulation, the speed is adjustable, and the startup is stable and reliable. 3. Use the belt to transport the carton, stacking neatly, speed 0-130m/min. 4. Using the clapper to hit the carton, with corrective function, the deviation is very small. 5. Counting and output adopts pneumatic method, PLC electronic control, reliable action, accurate and fast. 6. Adopt PLC programming controller and touch screen digital control, easy to operate, reliable operation, input data with non-stop, automatic counting. 7. The output part adopts the bottom conveyor belt and the upper pressing belt to synchronously press the way, so that the finished carton is firmly and neatly output. III. the main technical parameters
Model
CZXY-2300
CZXY-2600
Size A(mm)
80-880
80-880
Size B(mm)
420-2300
700-2600
Size C(mm)
160-840
160-840
Size D(mm)
170-1050
260-1050
Installation area(mm)
3500×14000
4200×15000
Power (kw)
10kw
12kw
Note: Special specifications can be customized according to customer needs, and the minimum box height can't be lower than 100mm.
IV.Electric appliance:
1.Bearings
HRB, RENBEN
ALL
2 Electric appliance
Siemens
ALL
3 PLC
Taiwan Delta
ALL
4 Encoder
Taiwan Delta
ALL
5Touch screen
MCGS
ALL
6 Keyless connection ring
Xianyang
ALL
7 Pneumatic one-way diaphragm pump
Wuhan
ALL
8 Main motor
Siemens
2SETS
9 Adsorption fan
Shanghai Xinzhi
1SET
10 Conveying motor
Taiwan Taibang
3SETS
11Conveyor belt
Shnaghai
ALL
Customer visit: Delivery picture:
Welcome to visit us, we'd glad to be good friends with you! I'm Sara 18202603137
