Box
Corrugated Board
Flexographic Printing
Varnishing
Coated
Moisture Proof
Soft Cover
Sewing Binding
380V/440V as Required
120-200 Piece/Min

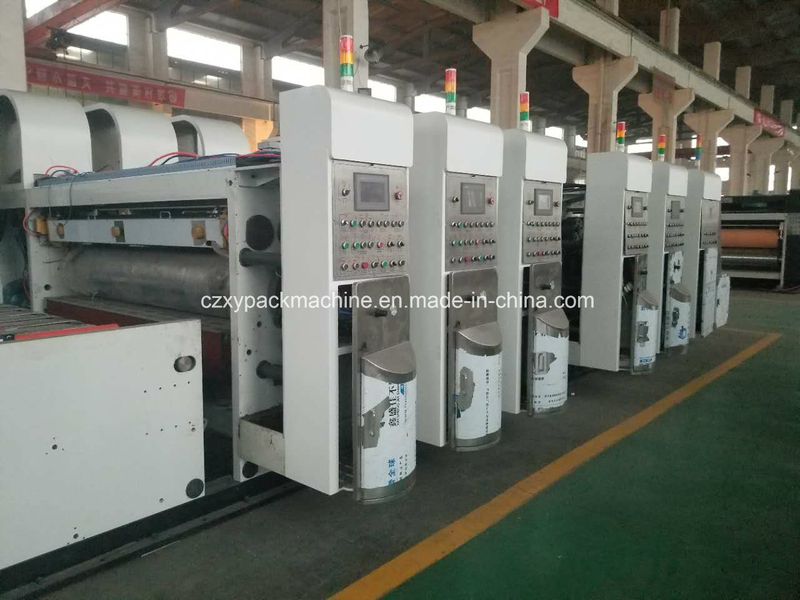

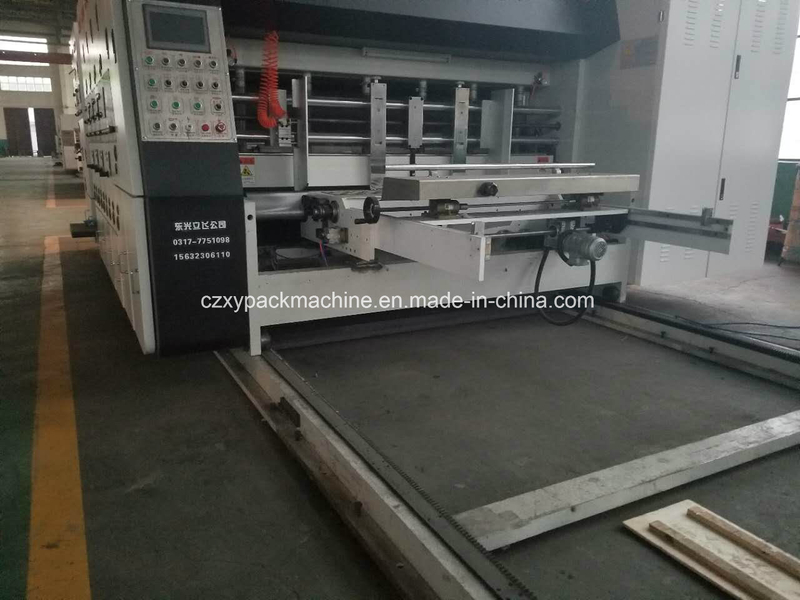

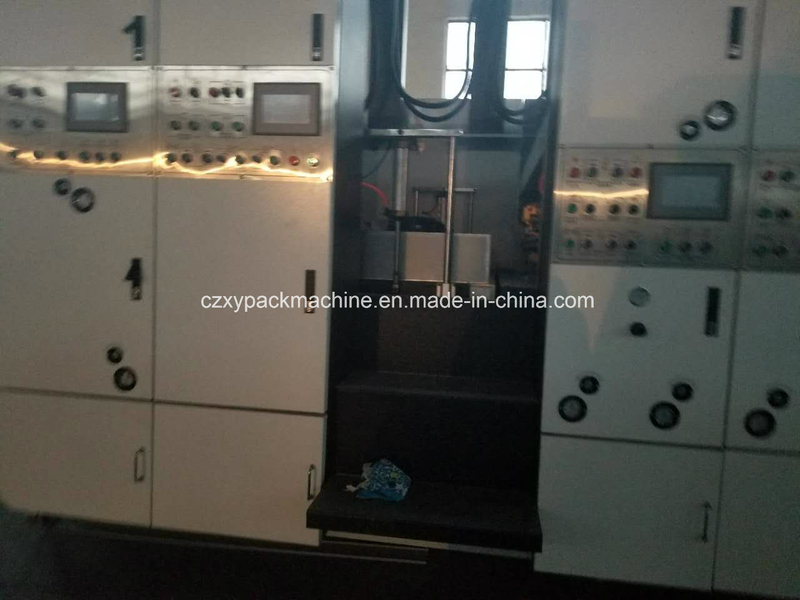

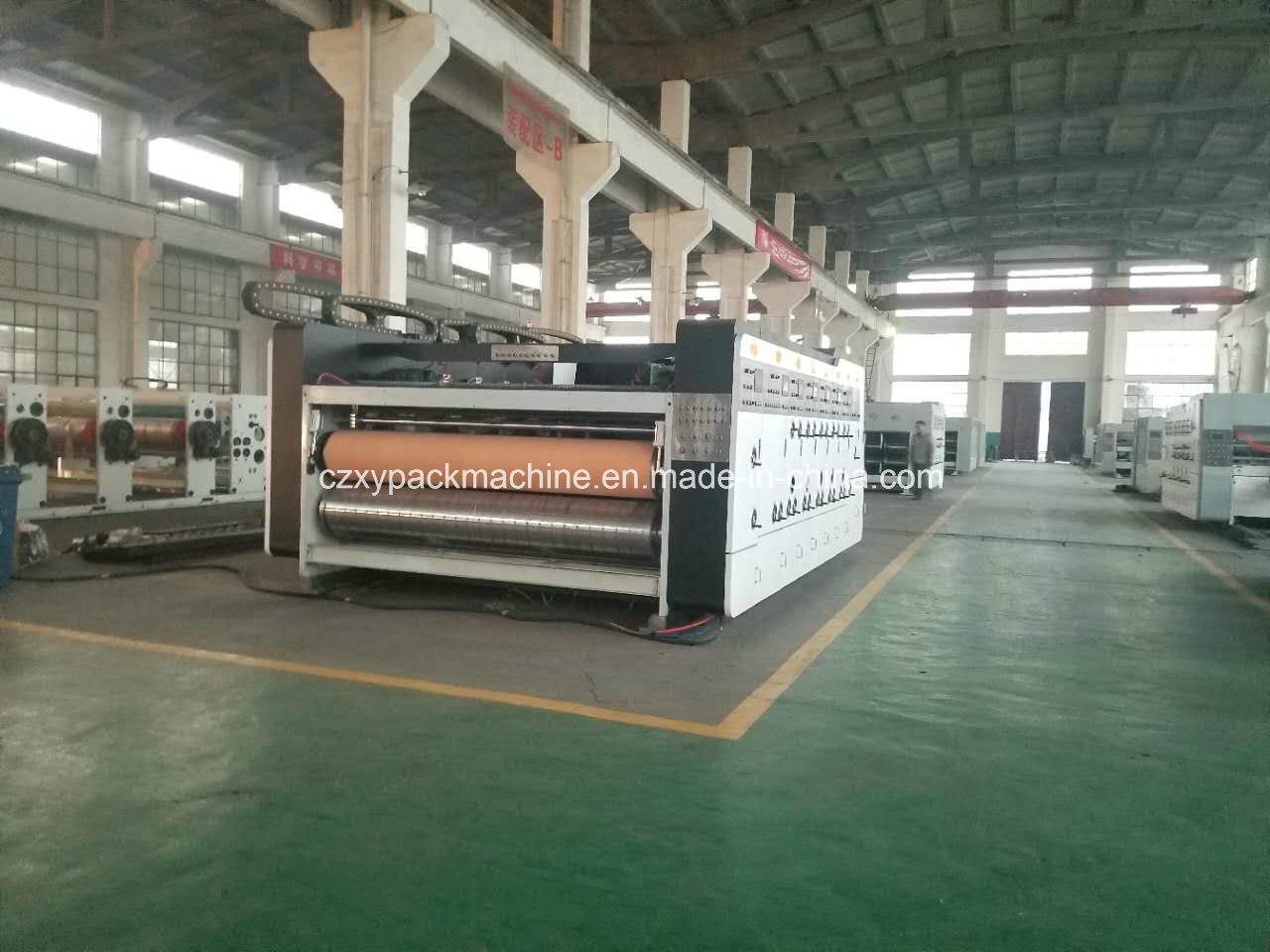

High Speed Flexo Printing Machine
0.5mm
25t
1-6colors
1mm
Schneider ,Simens
Automatic
High Precision Carton Box Making
Plastic Film, Container
Wall thickness: 50mm
CZXY
Hebei, China
8441809000
5sets/Month
Available | Customized Request
Name | unit | specification | ||
2600 | ||||
Max.feeding size | mm | 1200*2400 | ||
Max.printing area | mm | 1200*2400 | ||
Skip feeding area | mm | 1400*2400 | ||
Max.slotting depth | mm | 300 | ||
Min.feeding size | mm | 400*750() | ||
Minimum slotting interval | mm | 260*100*260*100() | ||
Standard printing plate thickness | mm | 7.2 | ||
printing cardboard thickness | mm | 2-10 | ||
Color precision | mm | ±0.5 | ||
Die cutting precision | mm | ±1.5 | ||
Mechanical speed | pcs/min | 180 | ||
Working speed | pcs/min | 160 | ||
Total power (five colors) | Kw | 35 | ||
Weight | T() | 30 |
