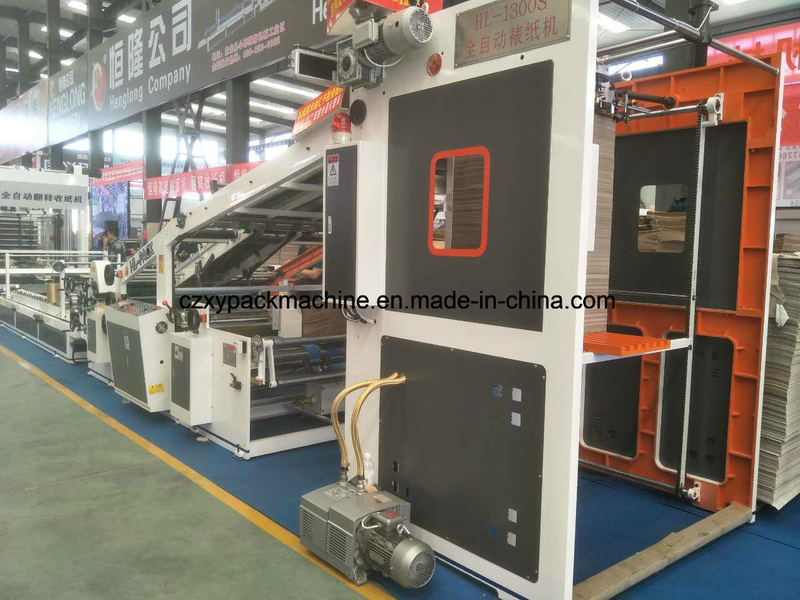

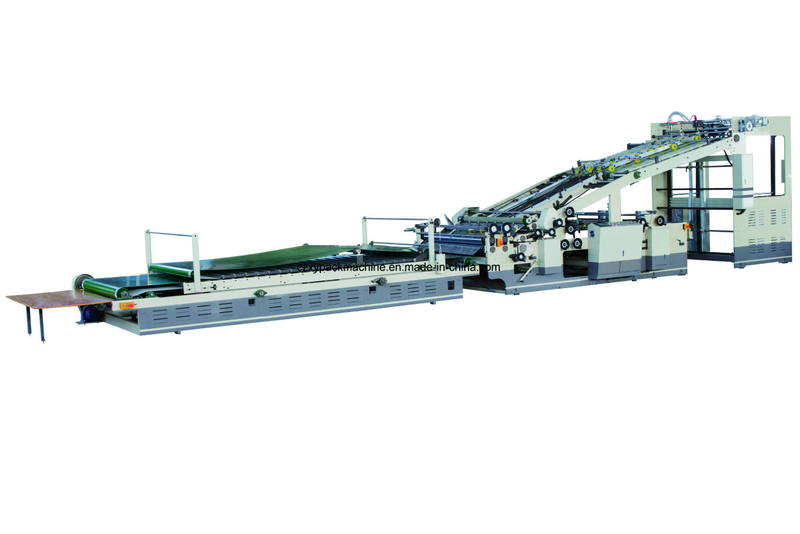

Bzj -1450b Automatic Flute Laminator

Quantity:
Bzj -1450b Automatic Flute Laminator
Bzj -1450b Automatic Flute Laminator
Bzj -1450b Automatic Flute Laminator
Bzj -1450b Automatic Flute Laminator
  • Color Box Making

  • 100PCS/Min

  • 300GSM

  • 800GSM

  • Touch-Screen/PLC/Servo Motor Control System

  • 1450×1100mm

  • BZJ -1450B

  • 1.2mm

  • 1.5mm

  • Delta

  • Automatic Gluing

  • Standard Plastic Packing for Abroad

  • 6ton

  • CZXY

  • Hebei, China

  • 8441809000

  • 10sets/Month

  • Available | Customized Request

Product Description


Hot Selling vacuum sucking good price 3layer corrugated board automatic flute laminator
Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator


Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator
Major feature:
Our company manufacture professionally BZJ series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy.
Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance.
Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance

Automatic Flute Laminator Parts Introduction

Surface Paper Feeding Part
The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.

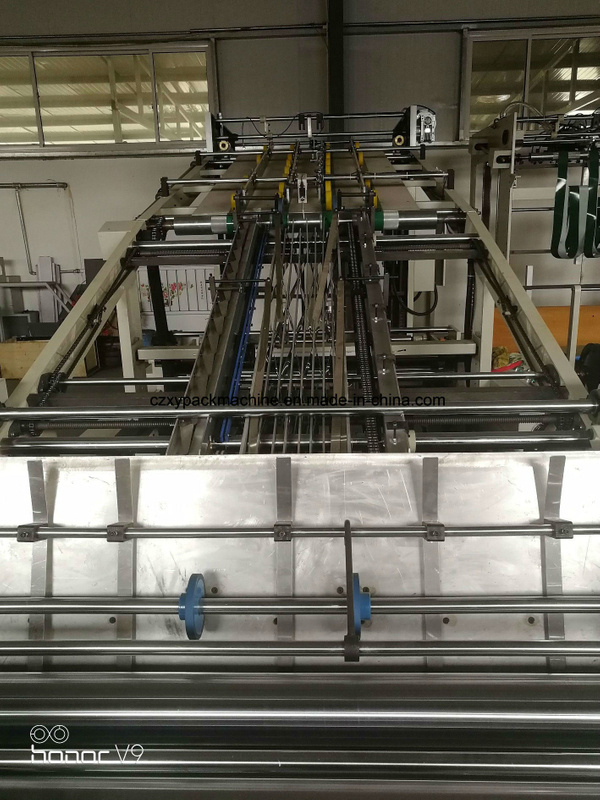

Surface Paper Conveying Part
Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability and smoothness of conveying, which is adaptive for different sheets of different thickness without any abrasion for the printing surface.



Alignment System of Surface Paper
Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper enter the pasting part at the same time. It can be fine adjusted during the course of working.



Bottom Paper Feeding Part
Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven layers.


Bottom Paper Conveying Part
Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven layers.



Driving System
Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet.



Adjustment System
Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of pasting tolerance during the course of working with high speed, thus improving the working efficiency.


Electrical Control Part
All the electrical power adopted the worldrenowned brands, steady and dureable, frequency speed govering, lower noise and energy conservation.



Adding Glue and Gumming System
Automatic adding glue system detects by electrically operated fluid controller and adds gule automatically during the course of pasting. The thickness of glue is adjustable according to paper. Recycling system of glue avoids a waste of glue and swinging glue, and ensures accurate and tidy laminating.Unique applied anilox roller glues evenly, even suitable for cardboards and cardboards.



Technological parameter:
Model BZJ1300 BZJ1450 BZJ1650
Max. paper size 1300×1100mm 1450×1100mm 1650×1450
Min. paper size 400×400 400×400 400×400
Mini. weight of bottom paper 300gsm 300gsm 300gsm
Max. weight of bottom paper 800gsm 800gsm 800gsm
Max. thickness of paper 10mm 10mm 10mm
Mini. weight of face paper 180gsm 180gsm 250gsm
Max. weight of face paper 800gsm 800gsm 800gsm
Precision of paperboard and cardboard ±1.2mm ±1.2mm ±1.2mm
Precision of paperboard and corrugated board ±1.5mm ±1.5mm ±1.5mm
Machine speed 100PCS/MIN 100 PCS/MIN 70 PCS/MIN
Total power 14HP 14HP 14HP
Total length 12.5M 12.5M 14.5M
Total weight 6200KG 6200KG 7500KG

Customer Visit:
Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator


Factory Process:
Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator


Related Products:
Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator

Delivery picture:
Hot Selling Vacuum Sucking Good Price 3layer Corrugated Board Automatic Flute Laminator



Welcome to visit us, we'd glad to be good friends with you!
