Electric
Engineers Available to Service Machinery Overseas
Carton Packaging Machinery
Semi-Automatic
Imported Brand
Omron Brand
Taiwan Technology
Taiwan Brand
Germany Tungsten Steel
One Minute
All Available
Automatically,
by Touch Screen
3ply and 5ply
Taiwan Brand
Standard Abroad Packaging, Container
2000
CZXY
Hebei, China
8441809000
20days/Set
Available | Customized Request
Yaskawa Japan imported four servo drives with accurate accuracy and reduced mechanical transmission, which can effectively reduce the mechanical failure rate.
The entire control system of the stitching machine uses the Omron PLC control system.
The contactors in the control box are all made by the Taiwan Shilin brand and the French Schneider brand, and the photoelectric adopts the Japanese Omron brand.
The bottom mold, the blade is made of Japanese tungsten steel (wear resistant).
Stitching machine complete set of stitcher heads, all made of special steel, CNC precision machining.
Changing the carton size and adjusting the carton nail distance can be done in just one minute, greatly improving efficiency.
There is automatic counting function in the back section, and the number of finished products can be sent to the end of the conveying machine in a set number (1-99), which is convenient for packing and binding.
Mechanical speed: 500 nails per minute.
Nail distance: 30-120mm can be adjusted at will.
One machine for dual use, can stitch single-piece carton, double-piece carton, irregular carton.
The size is fully automatic and it takes only 2-3 minutes to change size.
Can stitch strengthen nail, single nail, double row nail, once completed.
The paper feeding section automatically counts and the finished product is sent out and bundled.
Adjust the nail distance, use the computer to set the automatically nail distance adjustment, the nail distance is adjustable from 20-120mm.
Electric baffle, adjust the size of the flap.
Applicable to five layers of corrugated board, seven layers (high weight).
This machine uses four servo motors (two head motors and two control nail distance motors)
The bottom mold feed width is 60mm (with two standard bottom plates)
.:
Model and parameters | SDJ-2500 | SDL-3000 | SDJ-3500 | SDJ-4000 |
Max paper size (A+B)*2(mm) | 4000 | 4800 | 6000 | 7000 |
Min paper size (A+B)*2(mm) | 1060 | 1060 | 1060 | 1060 |
Max carton box length A(mm) | 1850 | 2350 | 2850 | 3350 |
Min carton box length A(mm) | 350 | 350 | 350 | 350 |
Max carton box width B(mm) | 1000 | 1200 | 1500 | 1800 |
Min carton box width B(mm) | 180 | 180 | 180 | 180 |
Max carton box height (C+D+C) (mm) | 2500 | 2500 | 2500 | 2500 |
Min carton box height (C+D+C) (mm) | 400 | 400 | 400 | 400 |
Max.flap size C(mm) | 560 | 560 | 560 | 560 |
Min. flap sizeC(mm) | 50 | 50 | 50 | 50 |
Max height D(mm) | 2000 | 2000 | 2000 | 2000 |
Min height D(mm) | 150 | 150 | 150 | 150 |
Max width of tongue(mm) | 45 | 45 | 45 | 45 |
Nail distance(mm) | 30-120 | 30-120 | 30-120 | 30-120 |
Nail quantity | 1-99 | 1-99 | 1-99 | 1-99 |
Stitching speed(times/min) | 500 | 500 | 500 | 500 |
Machine weight | 2.5 | 3 | 3.5 | 5 |

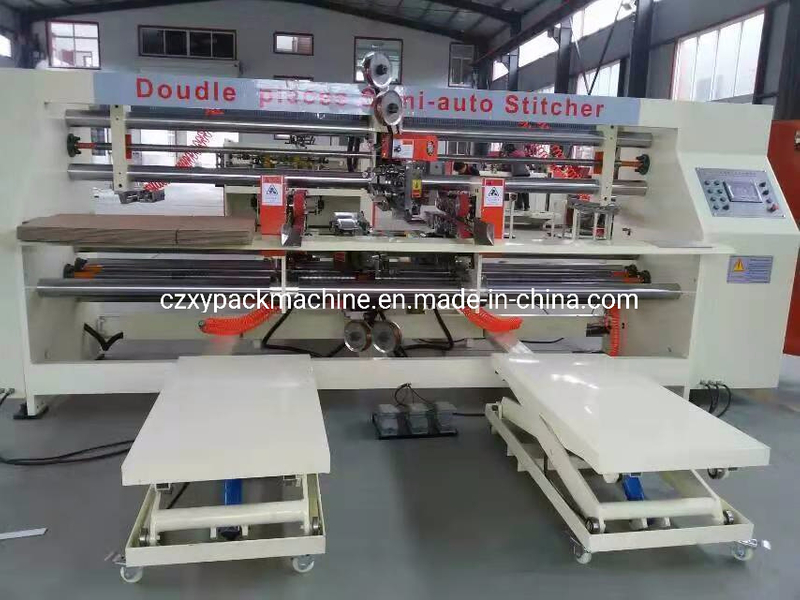

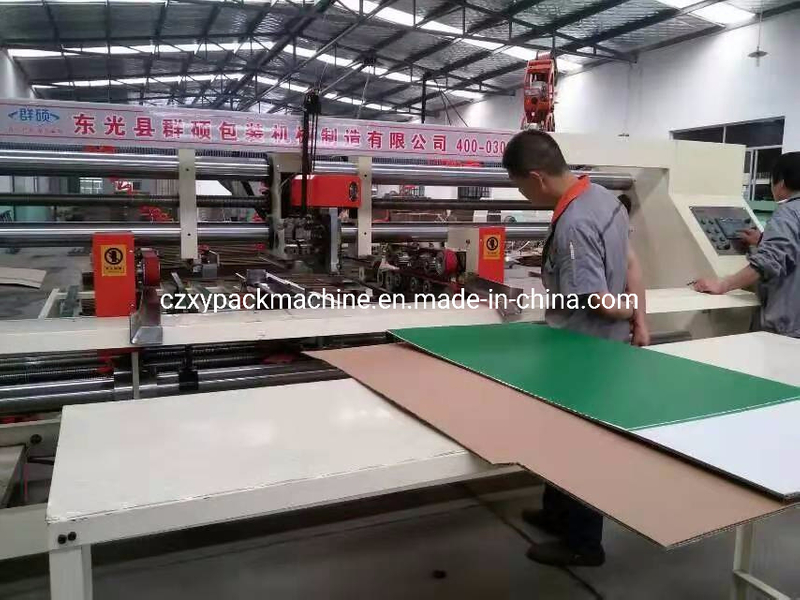

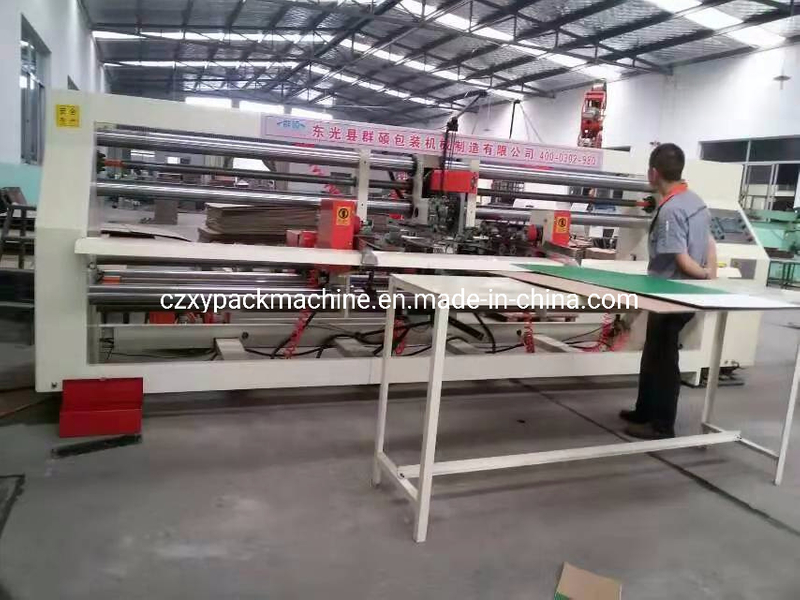

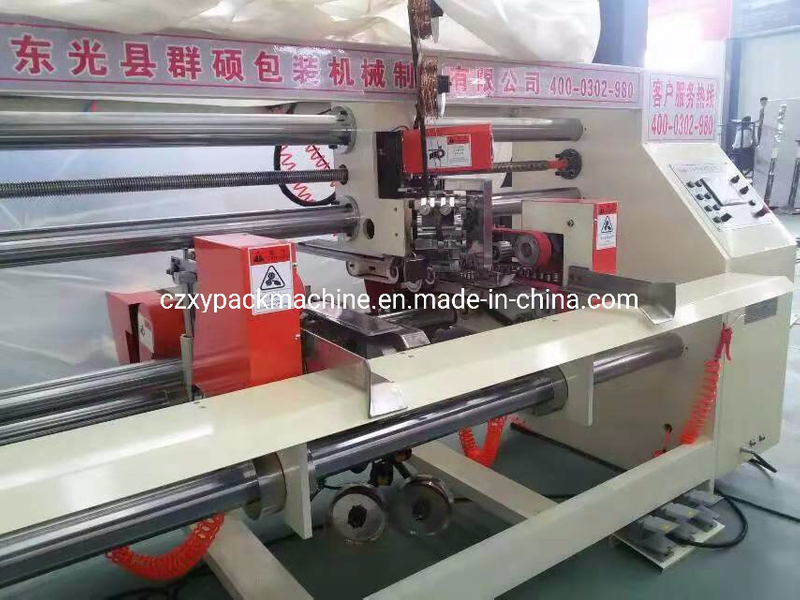

Machine details:
Box Producing Process:
Customer Visit:
Related Products:
Welcome to contact us and visit us, we'd like to offer you best machines, make friends with you forever!
