Automatic Vertical OPP Film Laminating Machine

Quantity:
  • 1080mm
  • 10-70m/Min
  • 1080X950-320X320mm
  • 100-500G/M2
  • 30-150ºC
  • 3-15MPa
  • 55kw
  • 30-45kw
  • 8000kg
  • 1100*2200*3350mm
  • Standard Abroad Packing Containers
  • computer contro
  • CZXY
  • Hebei China
  • 8441809000
  • 10sets/Month
  • Available | Customized Request
Automatic Vertical OPP Film Laminating MachineAutomatic vertical OPP film laminating machine




Feature
  1. multi-propose laminator for water& oil-based ,non-glue film ,and pre-coat film.
  2. Non-stop feeding and stacking unctions shorten preparation time effectively.
  3. High precision front and side rulers align sheets automatically
  4. Electromagnetic heating system ,high efficience and save energy
  5. New film-loading structure only needs one operator to load film ,highly saves labor costs.
  6. With decurler unit ,suitable for thin sheets laminating

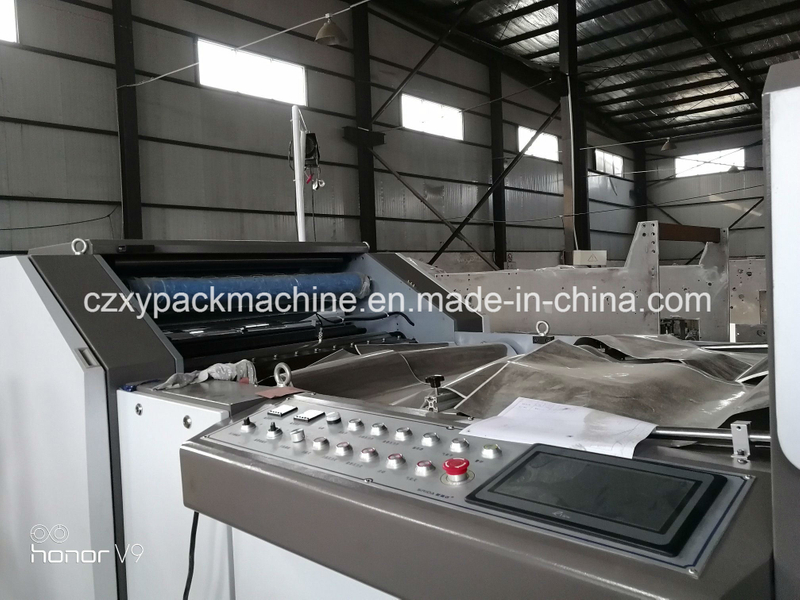

  7. Man-machine touch screen, and PLC control system.
Model ZLFM-1100A ZLFM-1450A
Max laminating length 1080mm 1080mm
Running speed 10-70m/min 10-65m/min
Applicable sheet size 1080x950-320x320mm 1080x1450-320x320mm
Applicable sheet weight 100-500g/m2 100-500g/m2
Pressing temp 30-150ºC 30-150ºC
Pressing pressure 3-15Mpa 3-15Mpa
() Total power(work power) 55kw (30-45kw) 55kw (30-45kw)
Overall weight 8000kg 8500kg
Dimension 11000*2200*3350mm 13000*2200*3350mm
